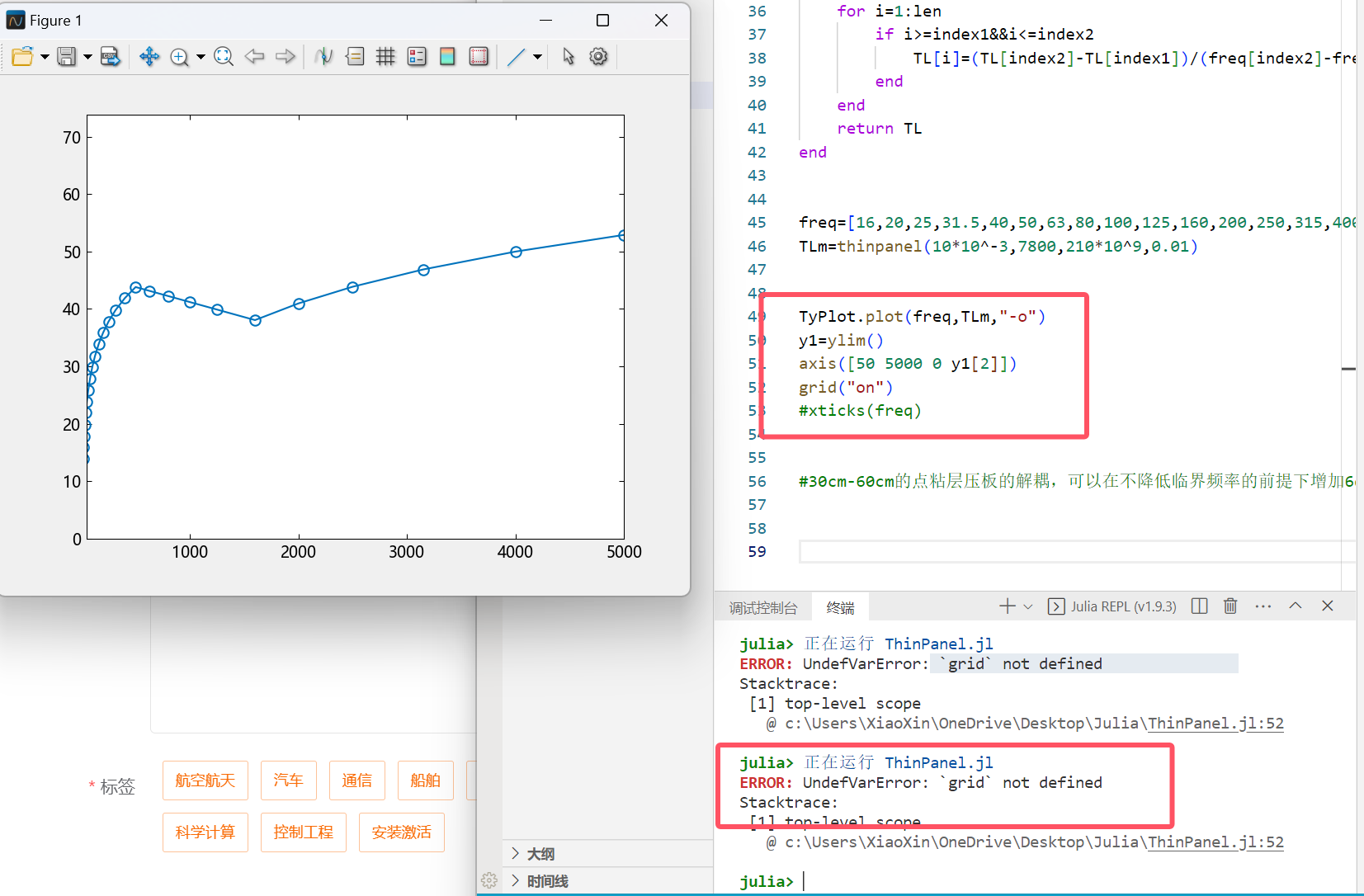

Syslab如何设置坐标轴的对数映射，包括log2和log10的映射，另外，图窗属性的设置函数是按照帮助文档设置的，却报告为未定义
一般问题
发布于 2024-10-10 15:17:17
查看 48过去626天
所属专栏：Syslab基础平台
产品信息：Syslab科学计算环境
您好，MWORKS.Syslab当前仅支持将坐标轴刻度设置为log10的形式，可以使用如下方式
plt_set(gca(),"xscale","log")
您所提问的第二个问题可能是您使用了外部的函数库导致冲突，建议您使用如下形式
TyPlot.grid("on")
其他详细内容请参阅MWORKS.Syslab帮助文档。

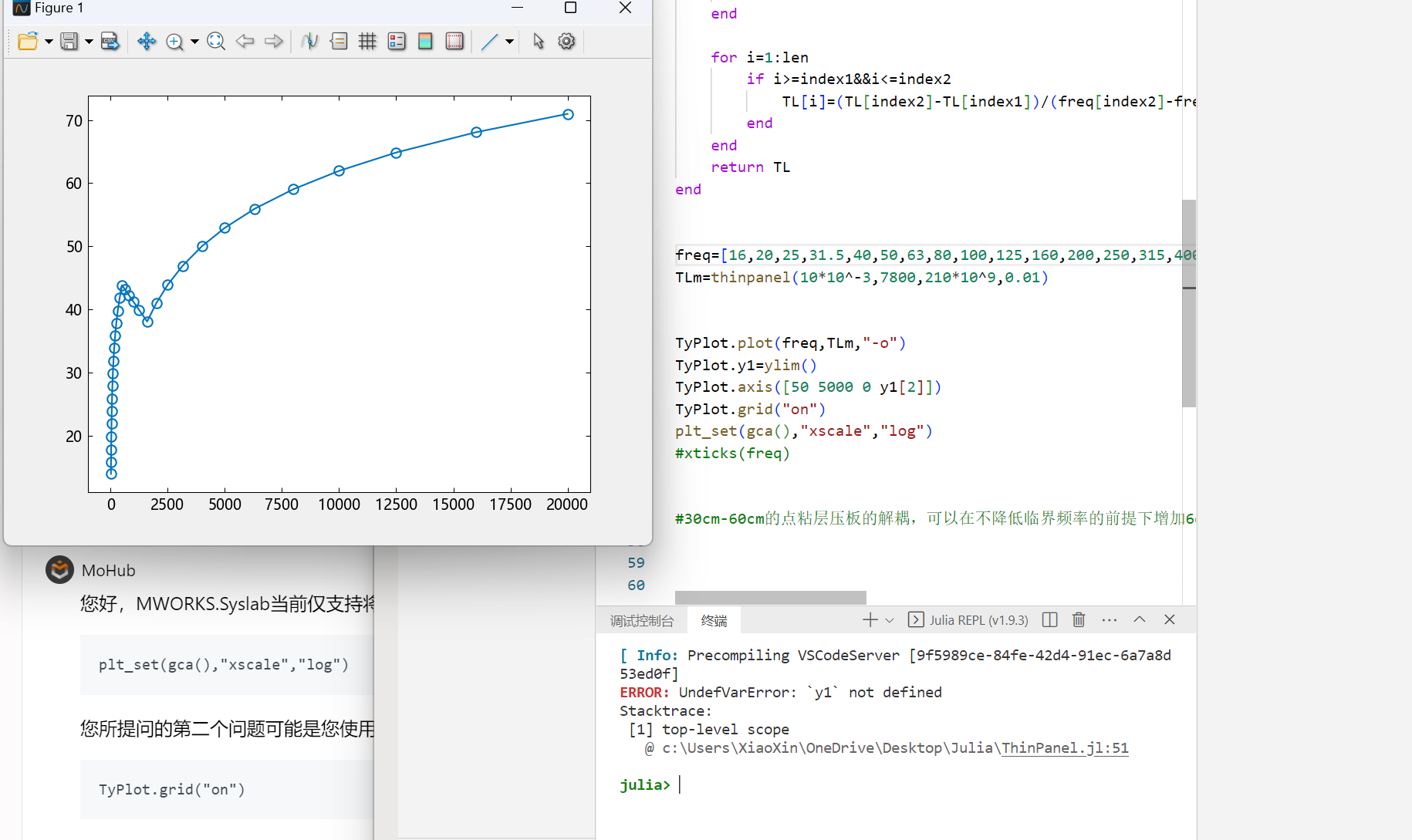

似乎还是不太对
