Sys block中关于多维度计算相关问题
一般问题
发布于 2024-10-18 14:57:50
查看 15过去618天

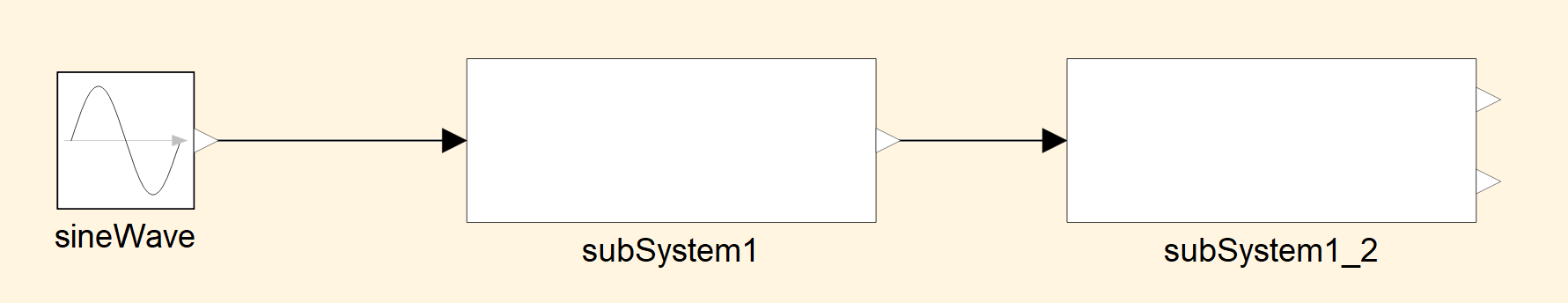

1、两个子系统单独进行编译时输入输出维度是匹配的，并且可以成功求解，但是两个子系统连接起来组成一个子系统就出现维度不匹配的问题。实际上子系统输入输出维度是匹配的，但是需要将子系统输入端口维度定义好，不要使用继承-1。
2、查表不能进行多维度计算。
3、logicalOperator模块的NOT取反不能进行多维度计算。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
