如何自定义介质用于在液压组件库里搭建的模型中？一般问题
发布于 2024-10-28 17:17:10
查看 21过去744天

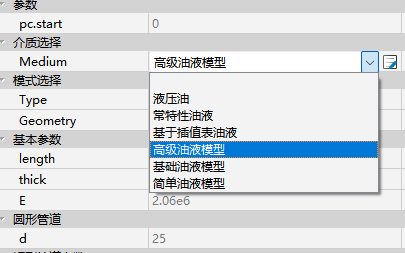

用液压组件库中搭建了模型，但是介质选择有限，如何调用基本库中的介质或者如何自定义介质用于模型当中
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
用液压组件库中搭建了模型，但是介质选择有限，如何调用基本库中的介质或者如何自定义介质用于模型当中

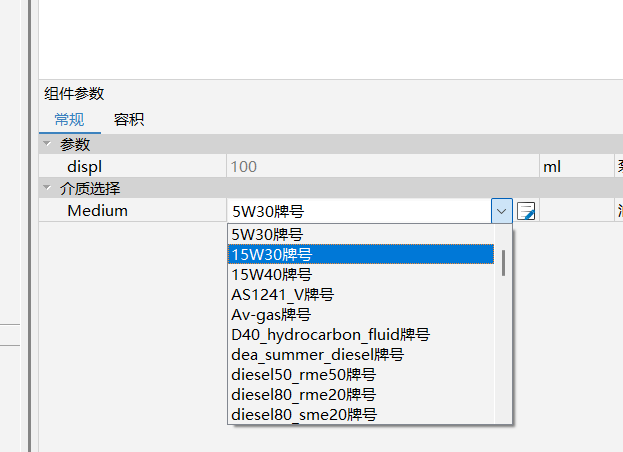

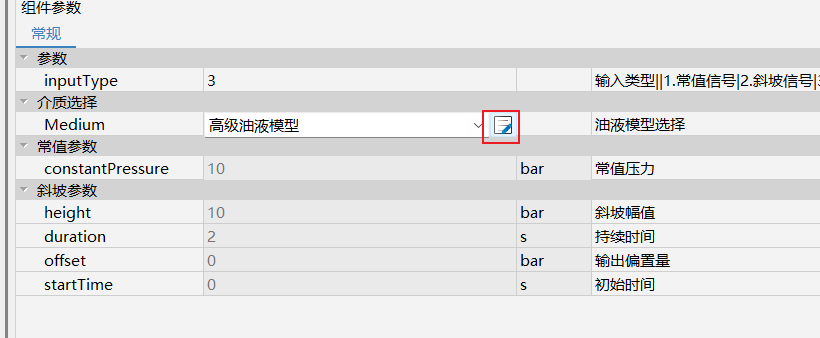

可以点击油液模型编辑按钮，这是物性参数，此外热液压组件库里面包含四十多种不同的牌号的介质，也可以进行使用
