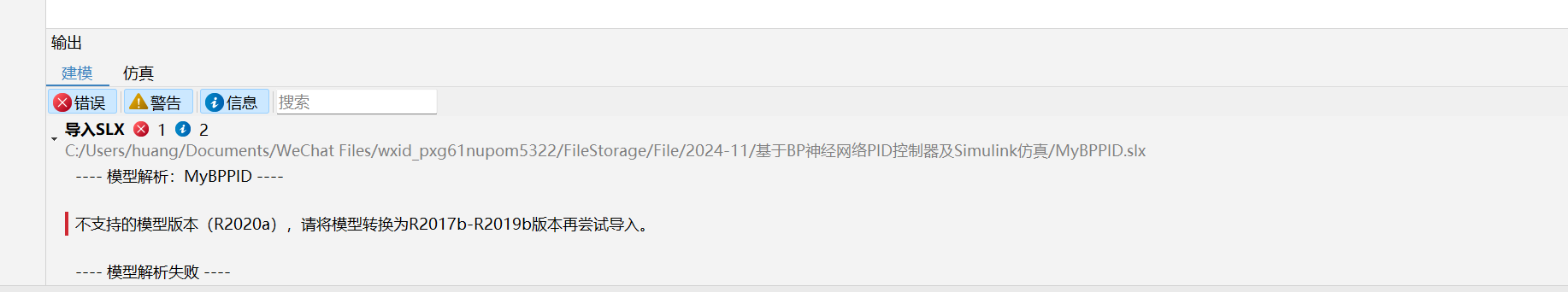

导入.slx遇到以下问题
一般问题
发布于 2024-11-03 14:31:46
查看 8过去602天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(33kb)
1 个附件(33kb) 您好，目前simulink导入功能，仅支持2019以下版本的部分模块，建议根据物理拓扑或者原理基于sysplorer构建开发。
