关于Sys#block 建模新手入门中的FOC用例
一般问题
发布于 2024-11-05 09:21:21
查看 26过去601天
您好
我看到帮助文档中FOC示例中用的sys#block模块，但是TYMotor.Example中SCIMSystem_FOC中用的有点不一样，我想请问这两个是同一个模型吗？
在哪里可以找到帮忙文档中的模型？

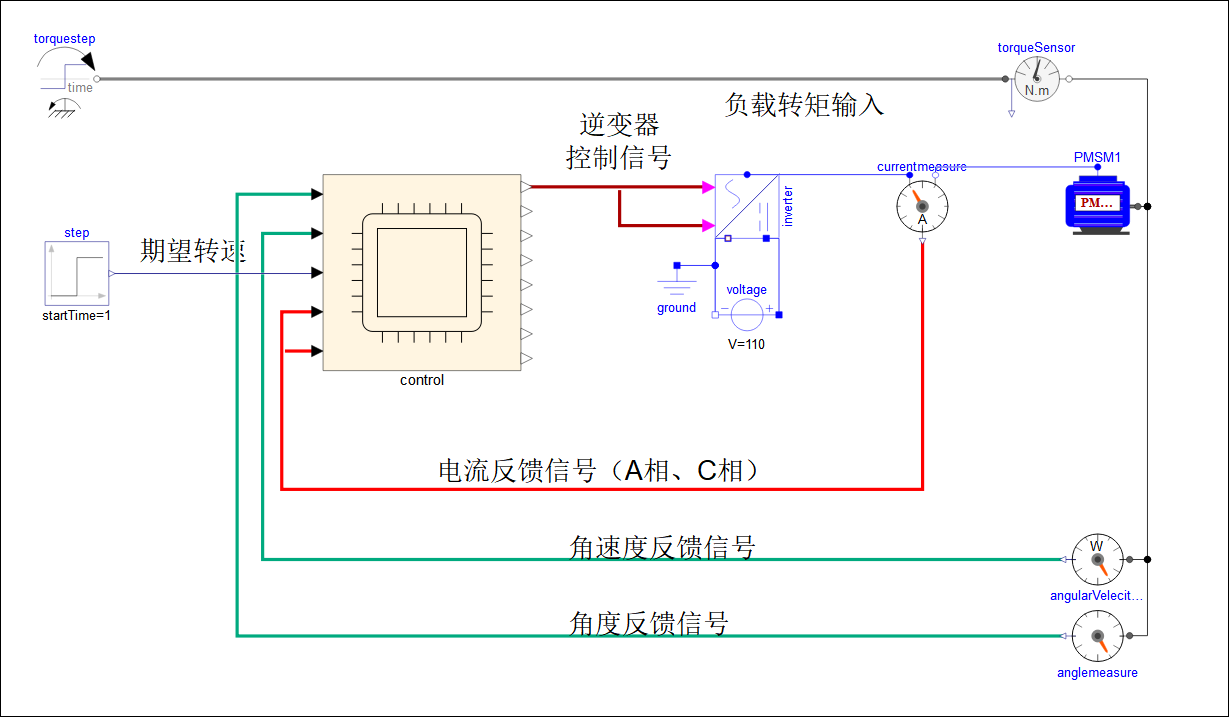

帮助文档中的模型

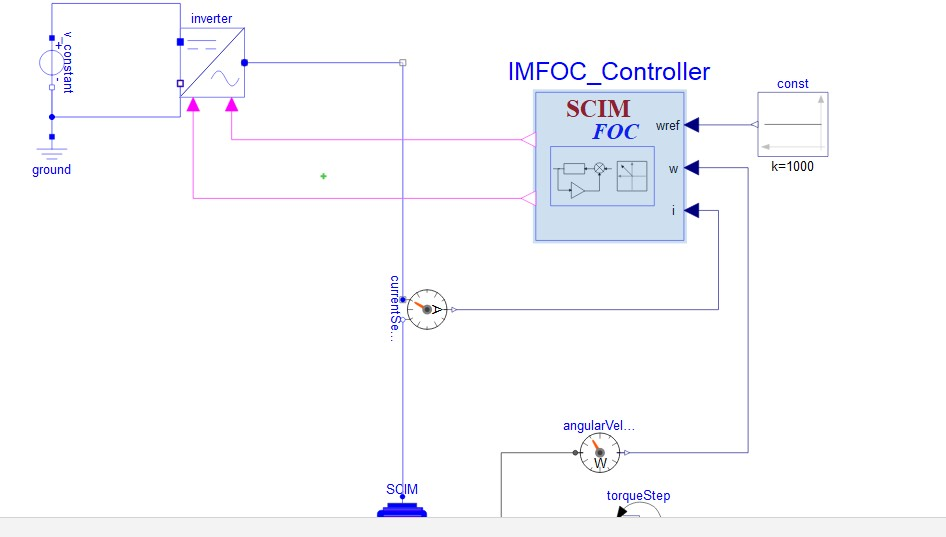

Example中的模型
谢谢
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2024-11-05 10:01:48

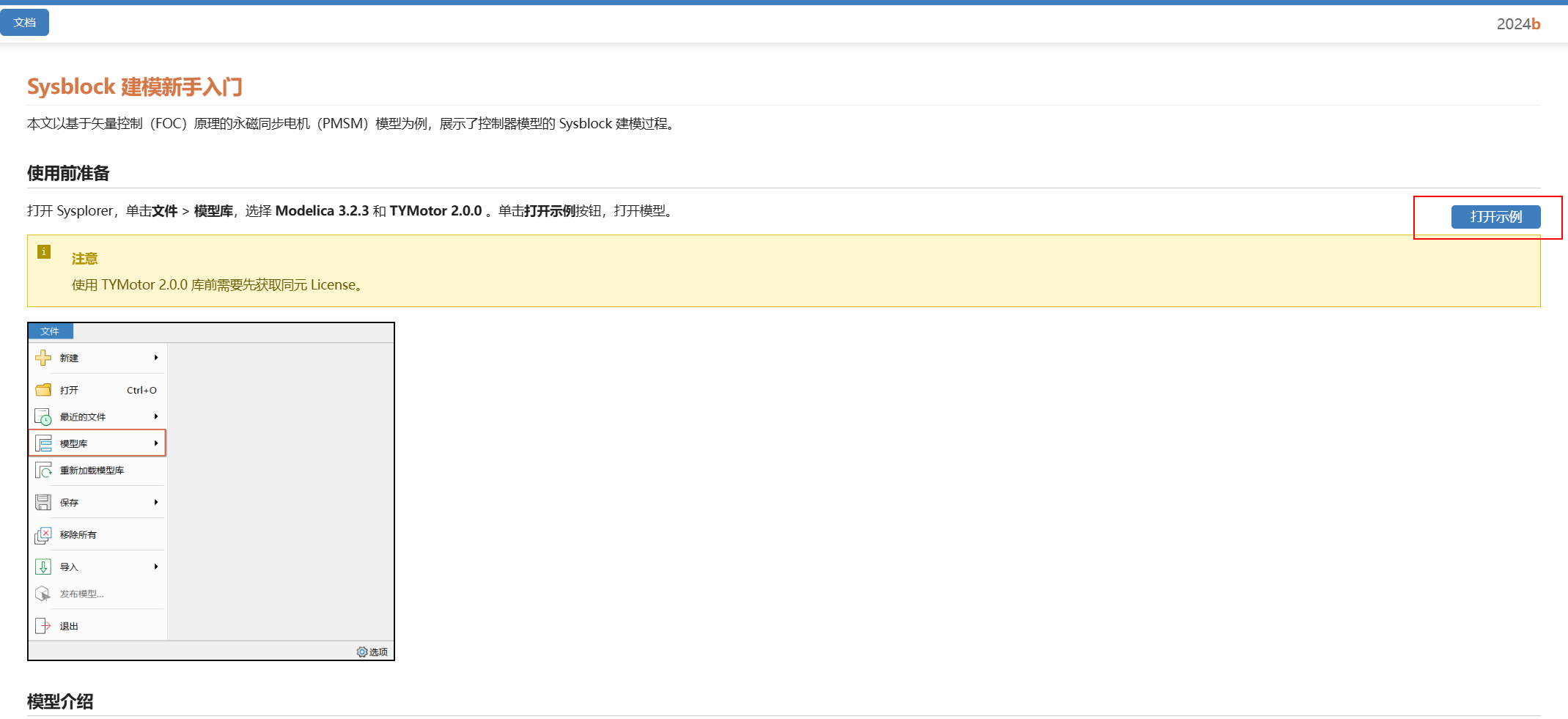

您好，这是两个模型，从机理以及构建方式上都是有差异的，帮助文档的模型可以打开软件以后，点击软件中的帮助文档，找到对应页面后，右上角的打开示例，即可打开相应模型。
全部回答 1
发布于 2024-11-05 10:01:48
您好，这是两个模型，从机理以及构建方式上都是有差异的，帮助文档的模型可以打开软件以后，点击软件中的帮助文档，找到对应页面后，右上角的打开示例，即可打开相应模型。
