CAD导入的模型怎么在仿真里面运用
一般问题
发布于 2024-11-05 14:56:10
查看 98过去600天
导入stp文件，被拆分成好几块，我每个加接口组起来，报错好多
是应该怎么组呀

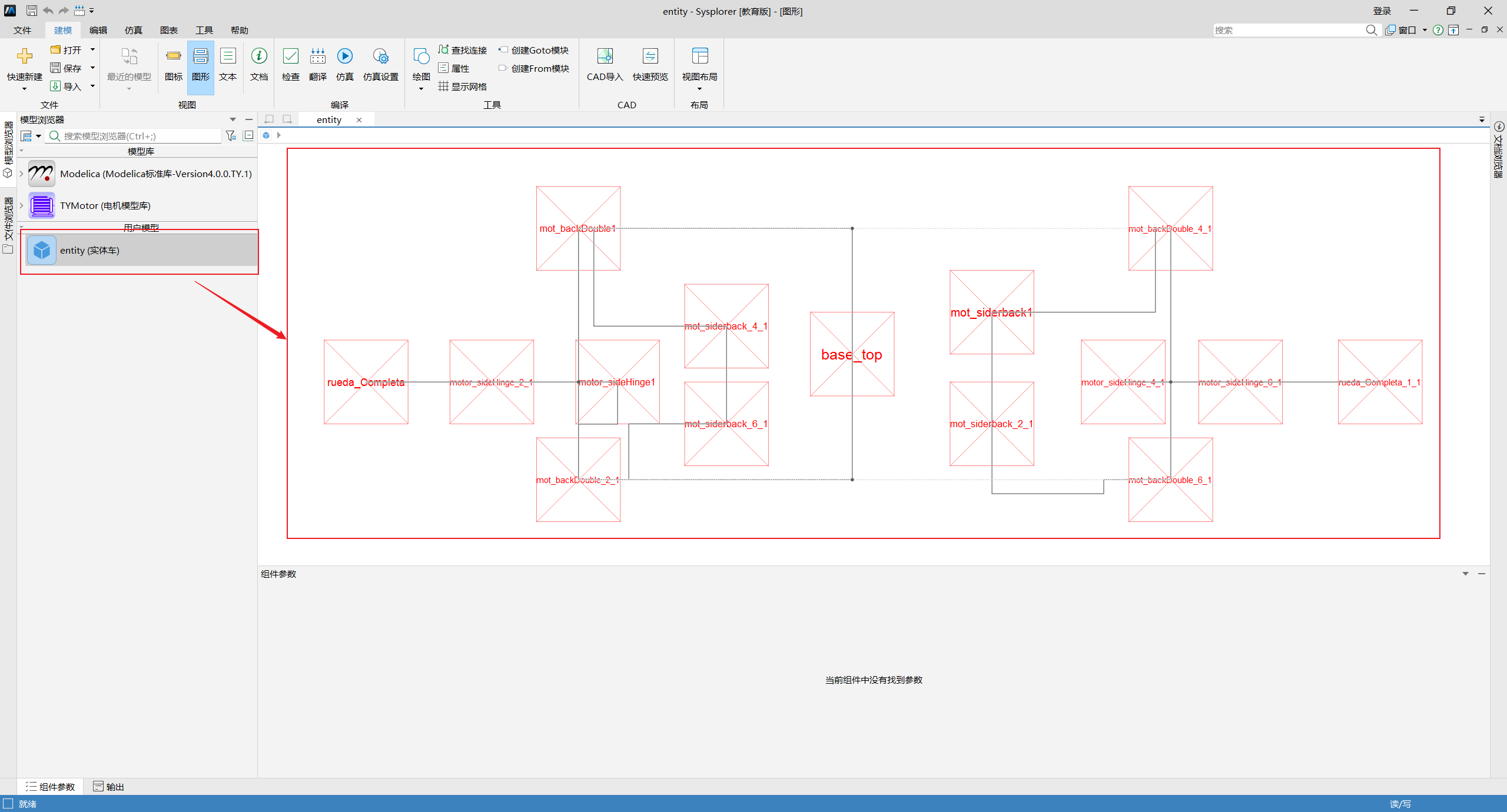

我这边打开也这样，可能错的不能保存，我把每个零件的图标加上两个接口，然后所有零件直接连起来
所属专栏：Syslab基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(2244kb) 专栏
标签
高校专区
2 个附件(2244kb) 全部回答 2
发布于 2024-11-05 15:10:55
您好，您的模型不完整，我们这边看不到完整的信息，麻烦您把完整的modelica模型和三维模型上传上来，我们结合模型具体定位一下问题。
发布于 2024-11-06 14:50:34

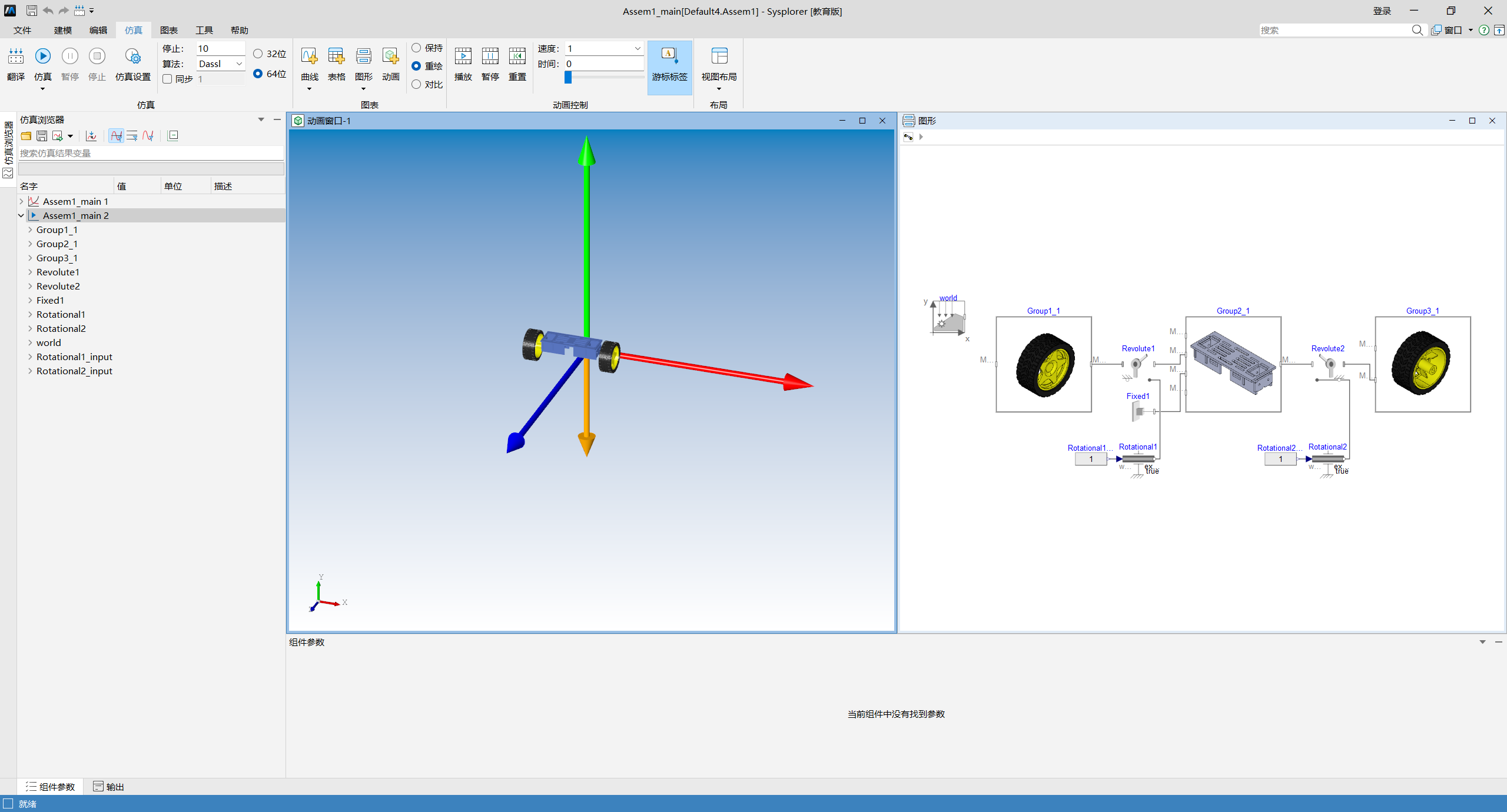

您好，已经使用您的模型进行了导出，并进行了仿真，以下过程供您参考。

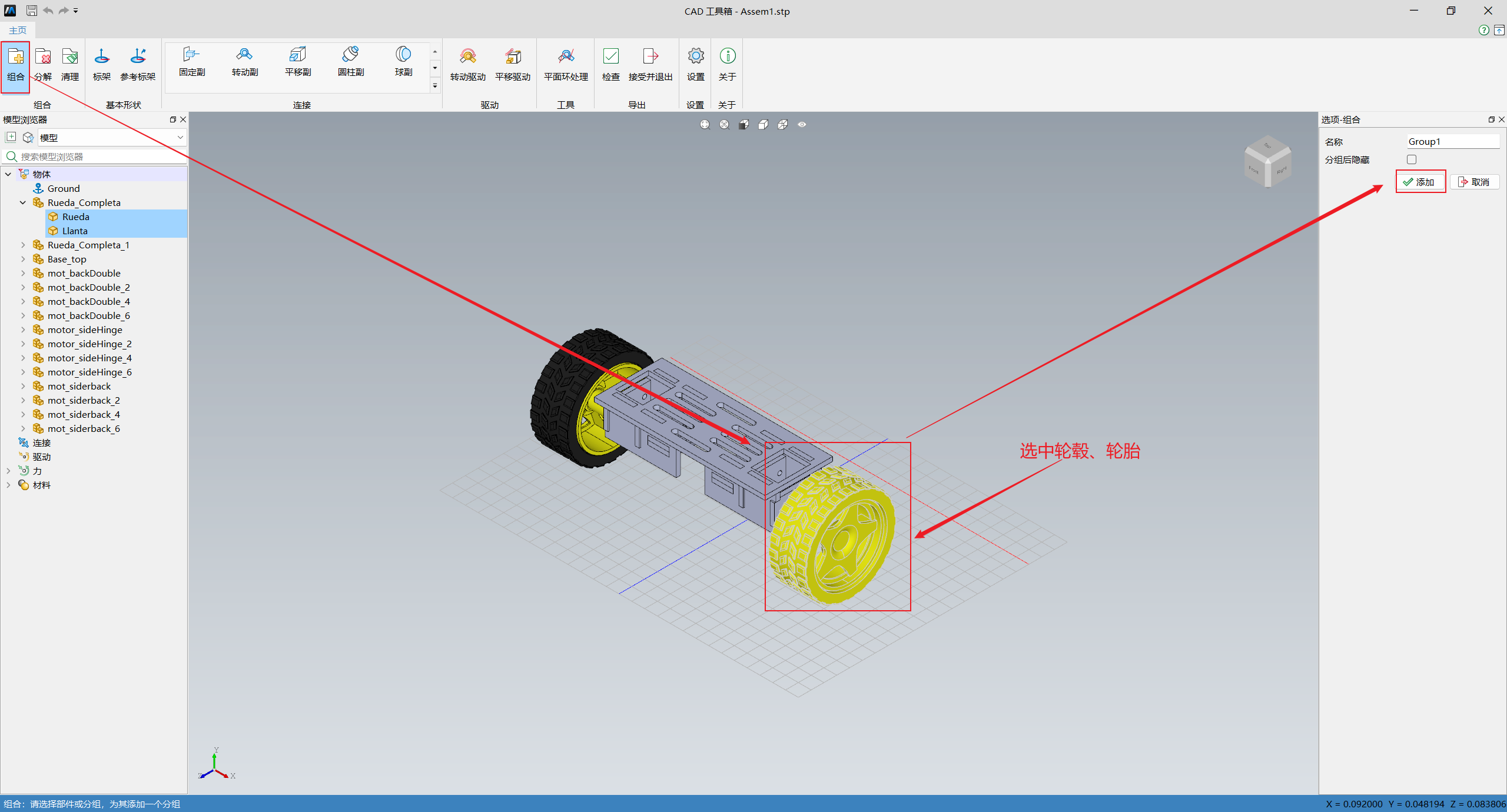

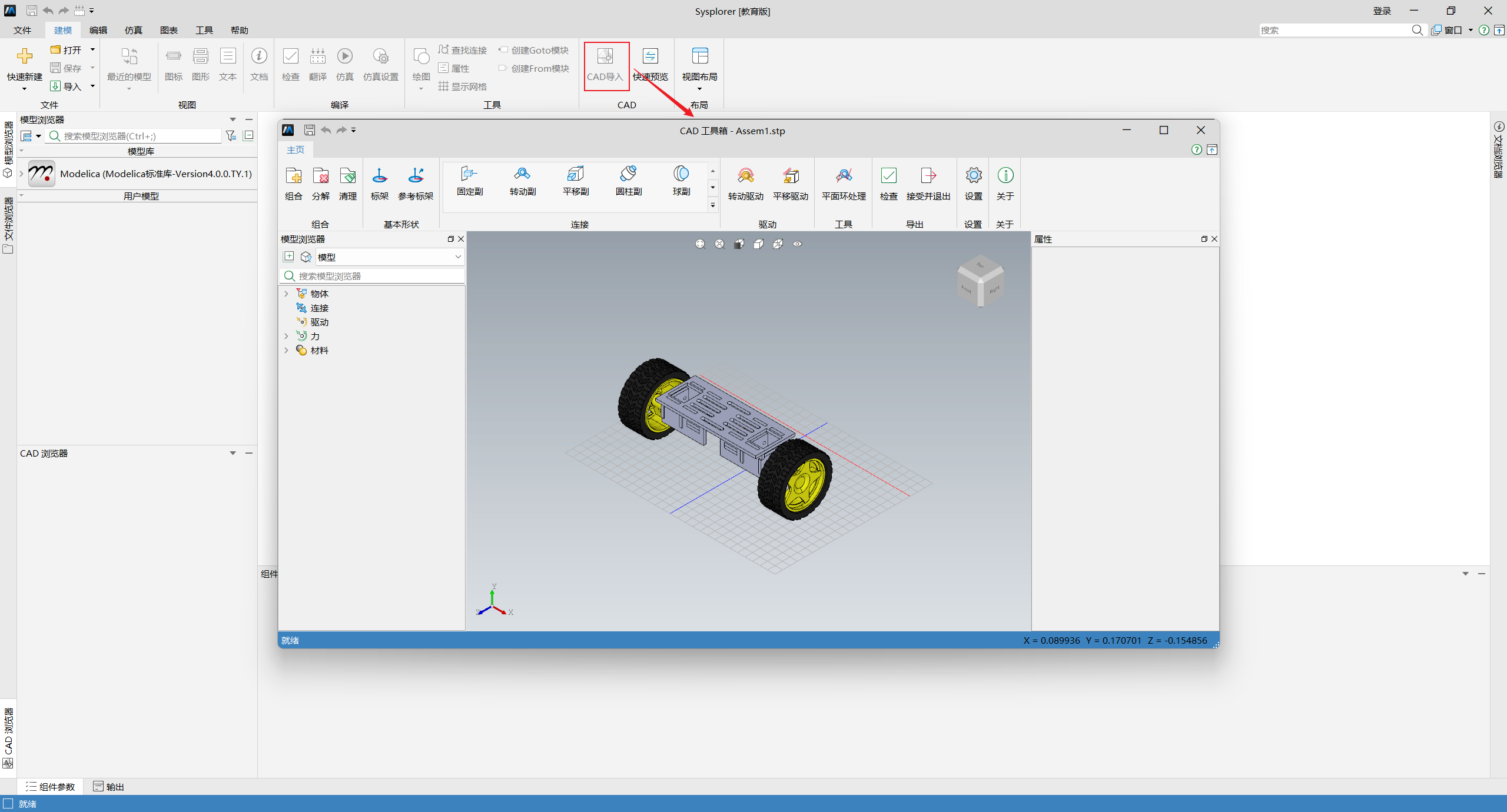

1.导入CAD模型

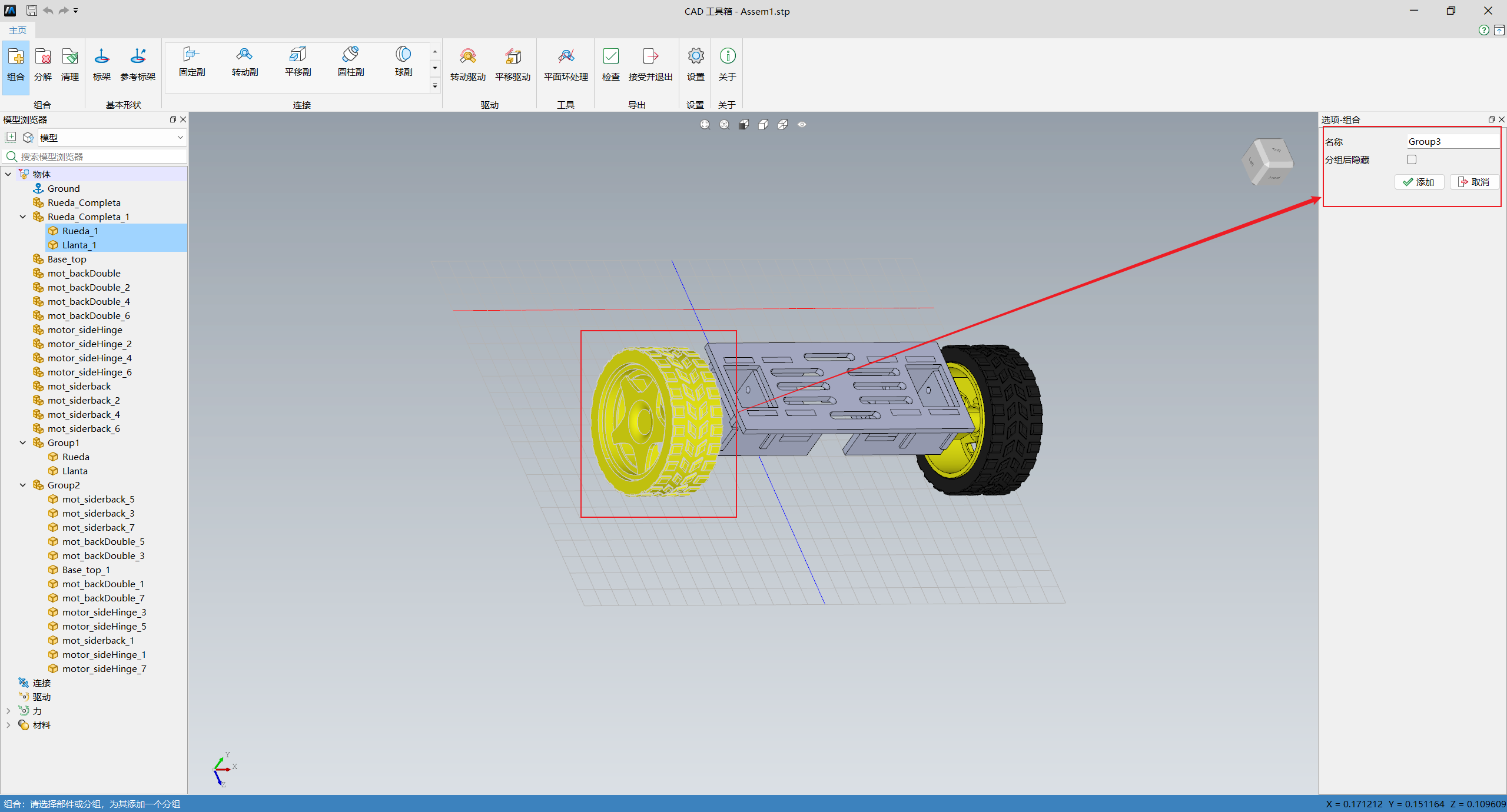

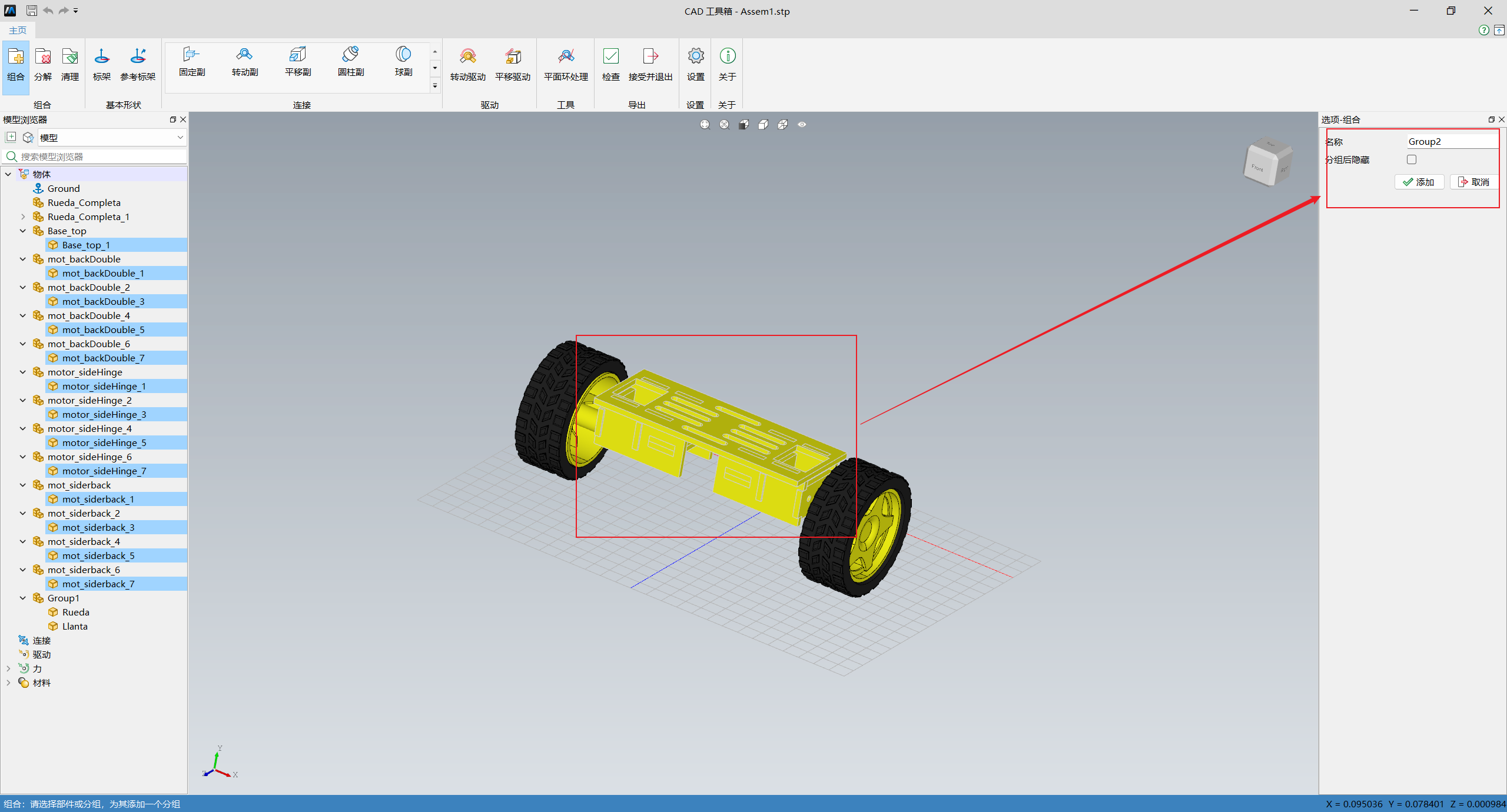

完成组合后按键盘“esc”退出

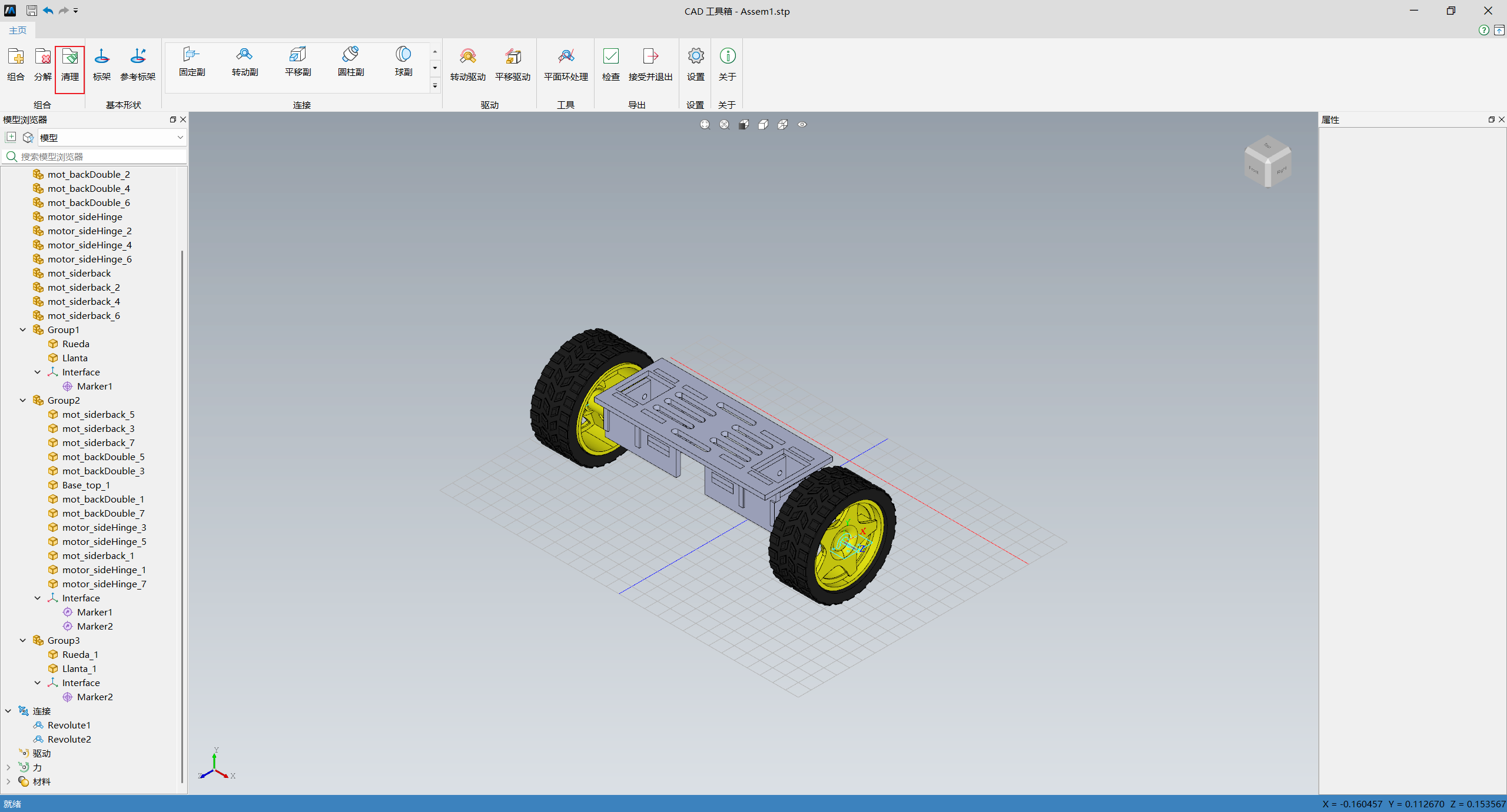

3.删除空分组

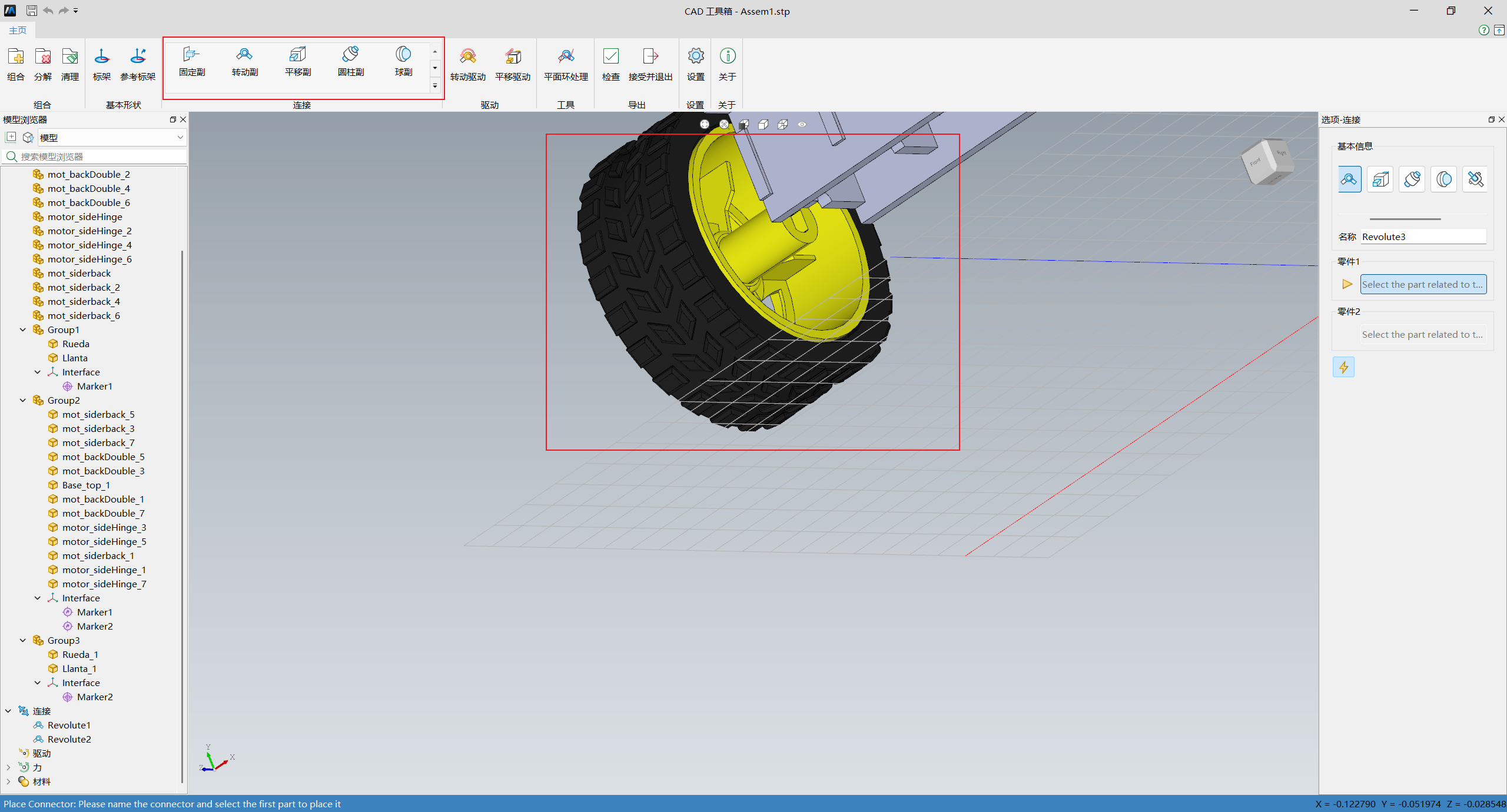

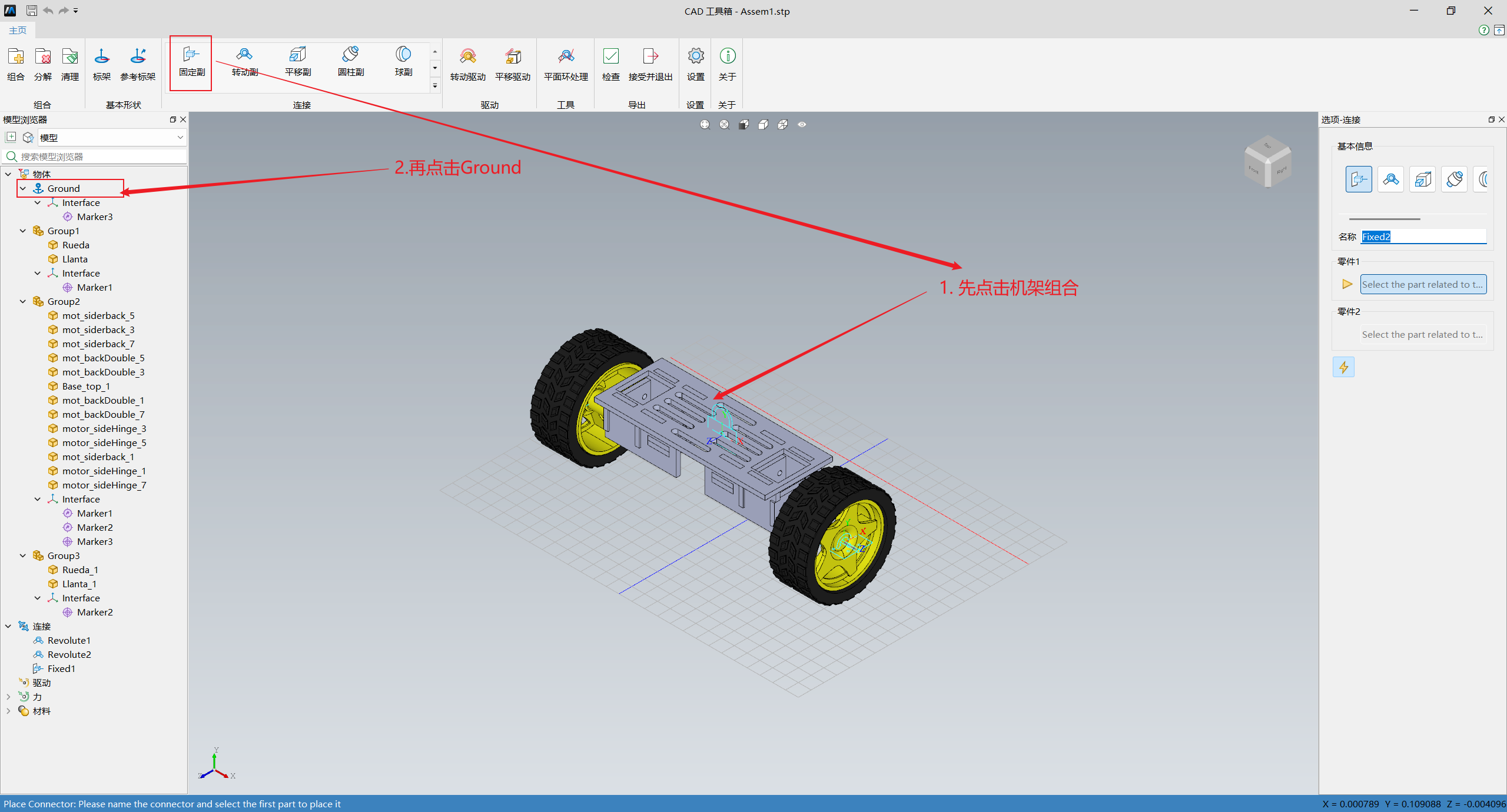

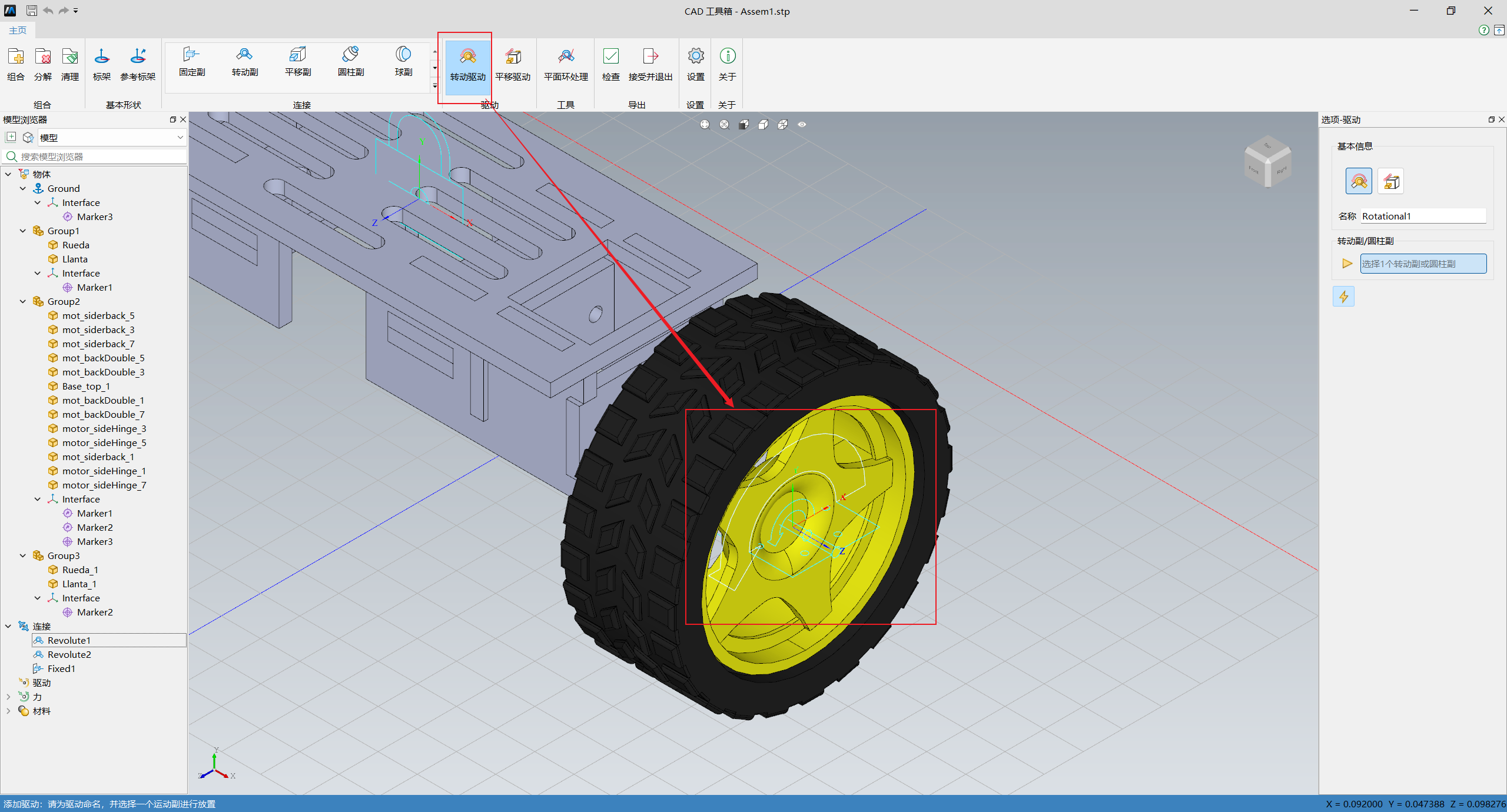

CAD工具箱-添加标架

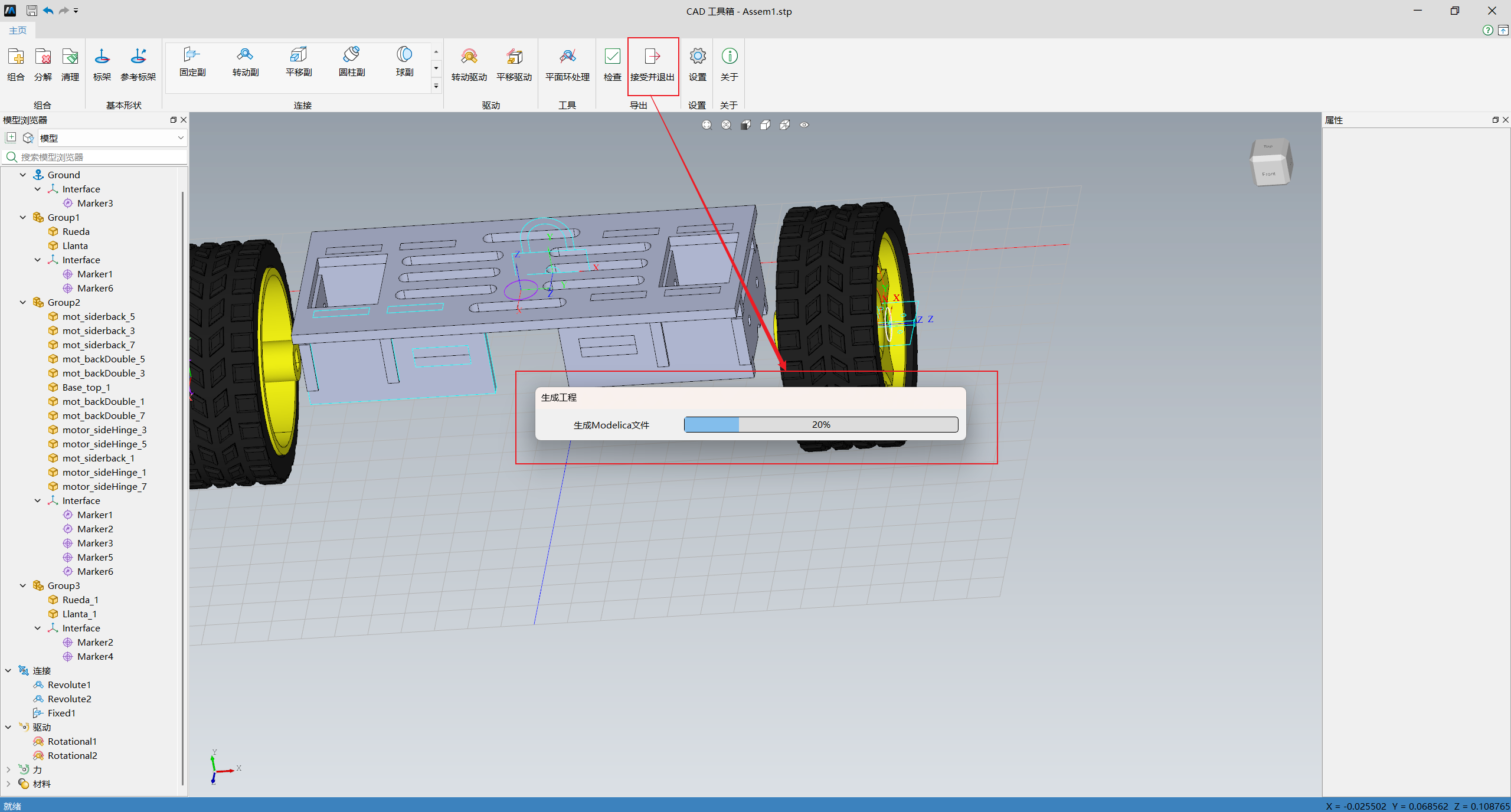

6.导出Modelica文件
