电机的使用
一般问题
发布于 2024-11-06 20:26:44
查看 16过去599天
在help里面能搜索到的电机在模型库里面搜索不到
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(308kb) 在help里面能搜索到的电机在模型库里面搜索不到
1 个附件(308kb) 您好，此类电机均在电机模型库中，您可以参考以下步骤打开模型。

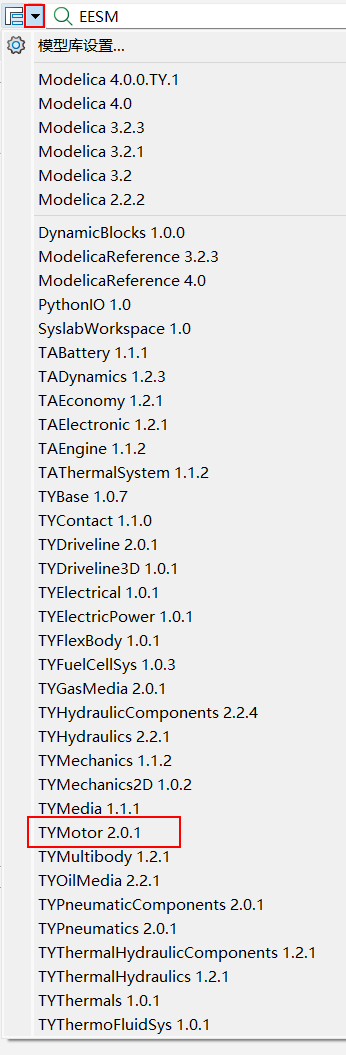

点击模型库下拉框，找到TYMotor2.0.1模型库

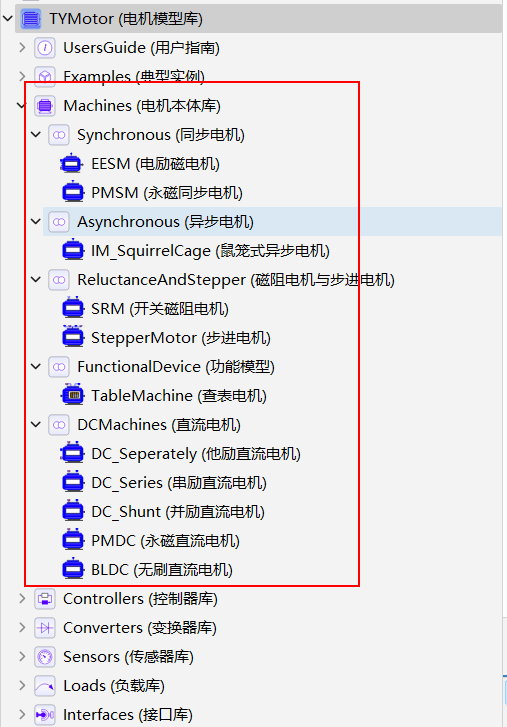

加载模型库后打开Machines
您好，此类电机均在电机模型库中，您可以参考以下步骤打开模型。
点击模型库下拉框，找到TYMotor2.0.1模型库
加载模型库后打开Machines
