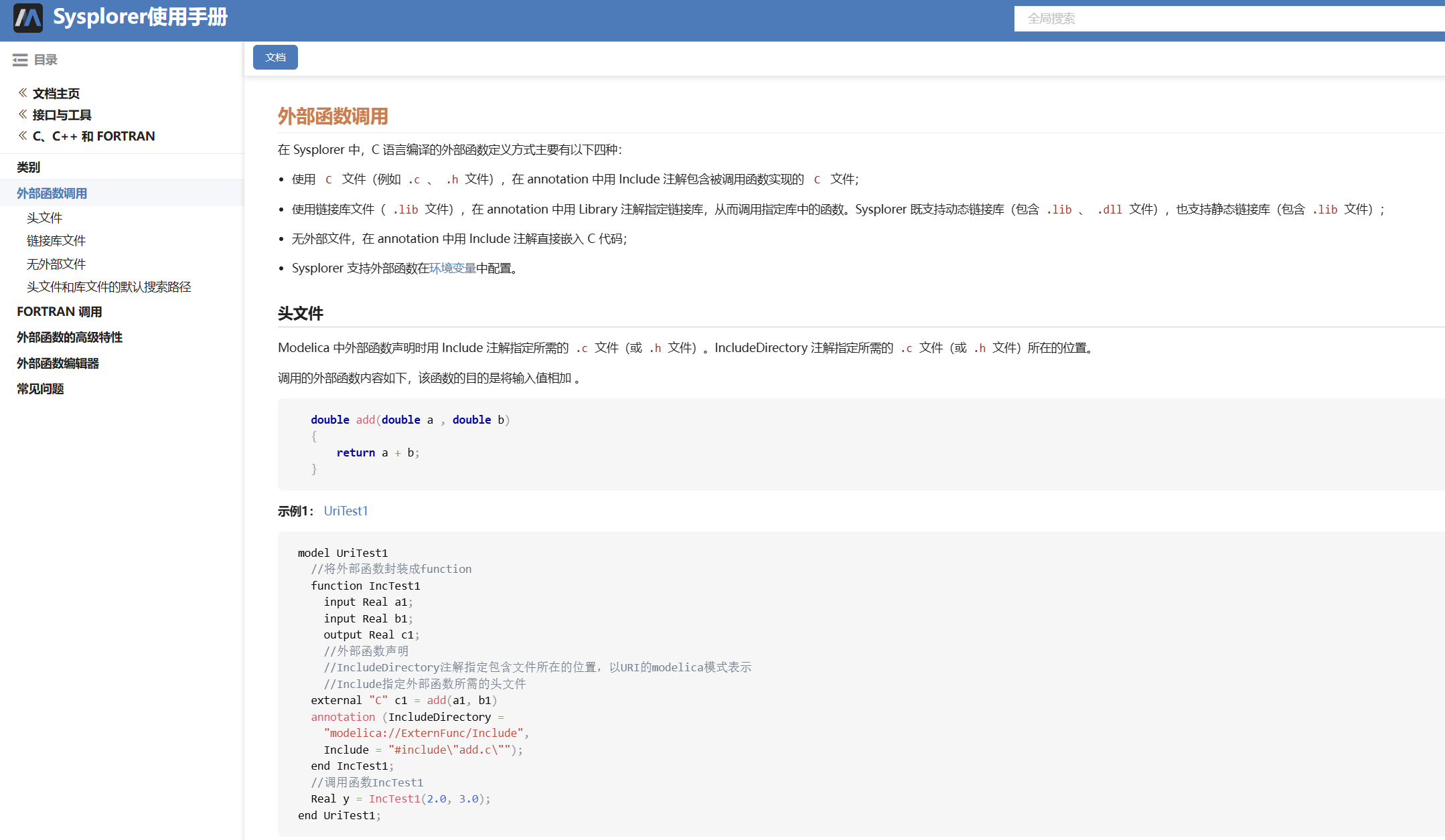

1.sysplorer中是否可以创建C语言模块模型，
一般问题
发布于 2024-11-08 11:10:45
查看 14过去598天
2.sysplorer中的xyz到dq变换模块有吗，有的话到哪里找？

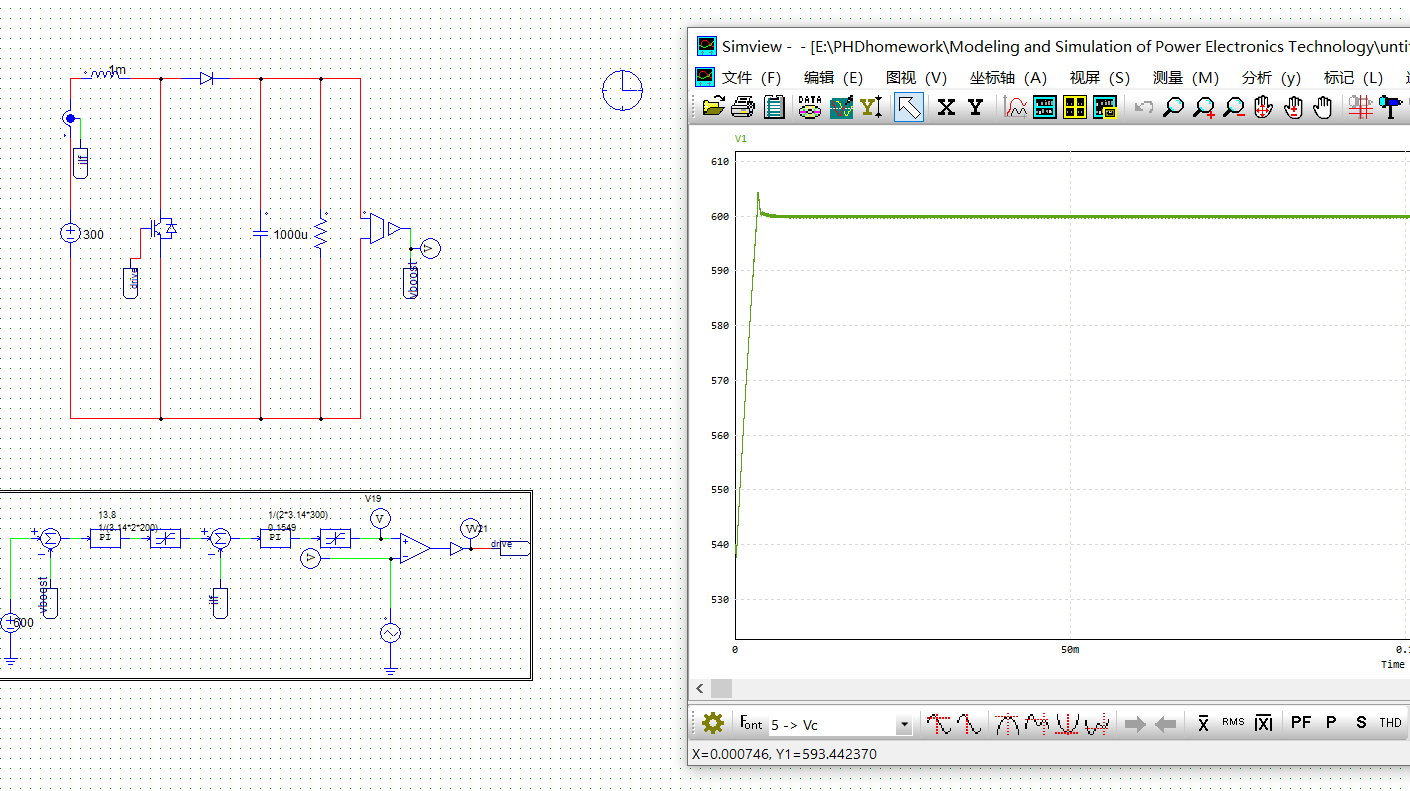

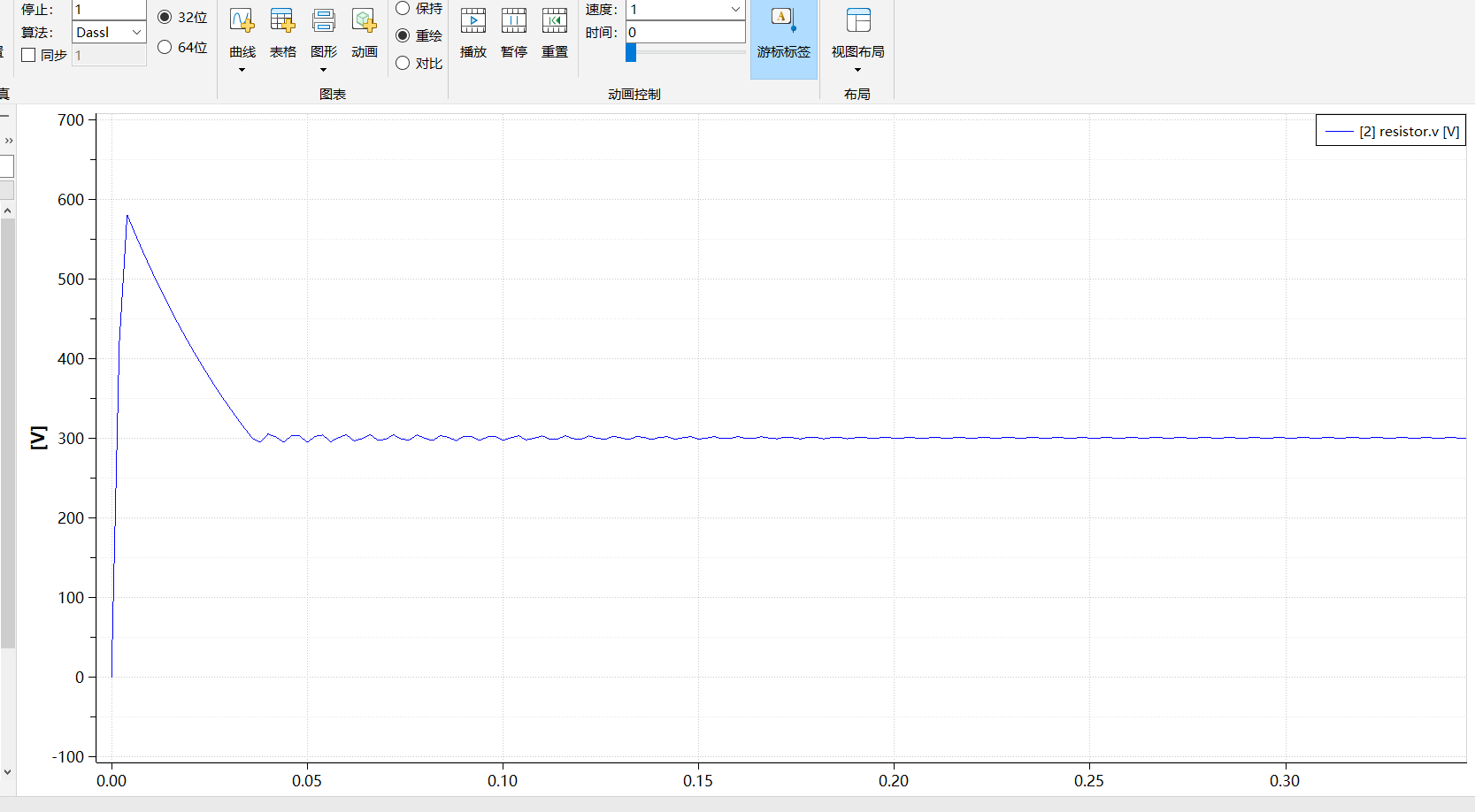

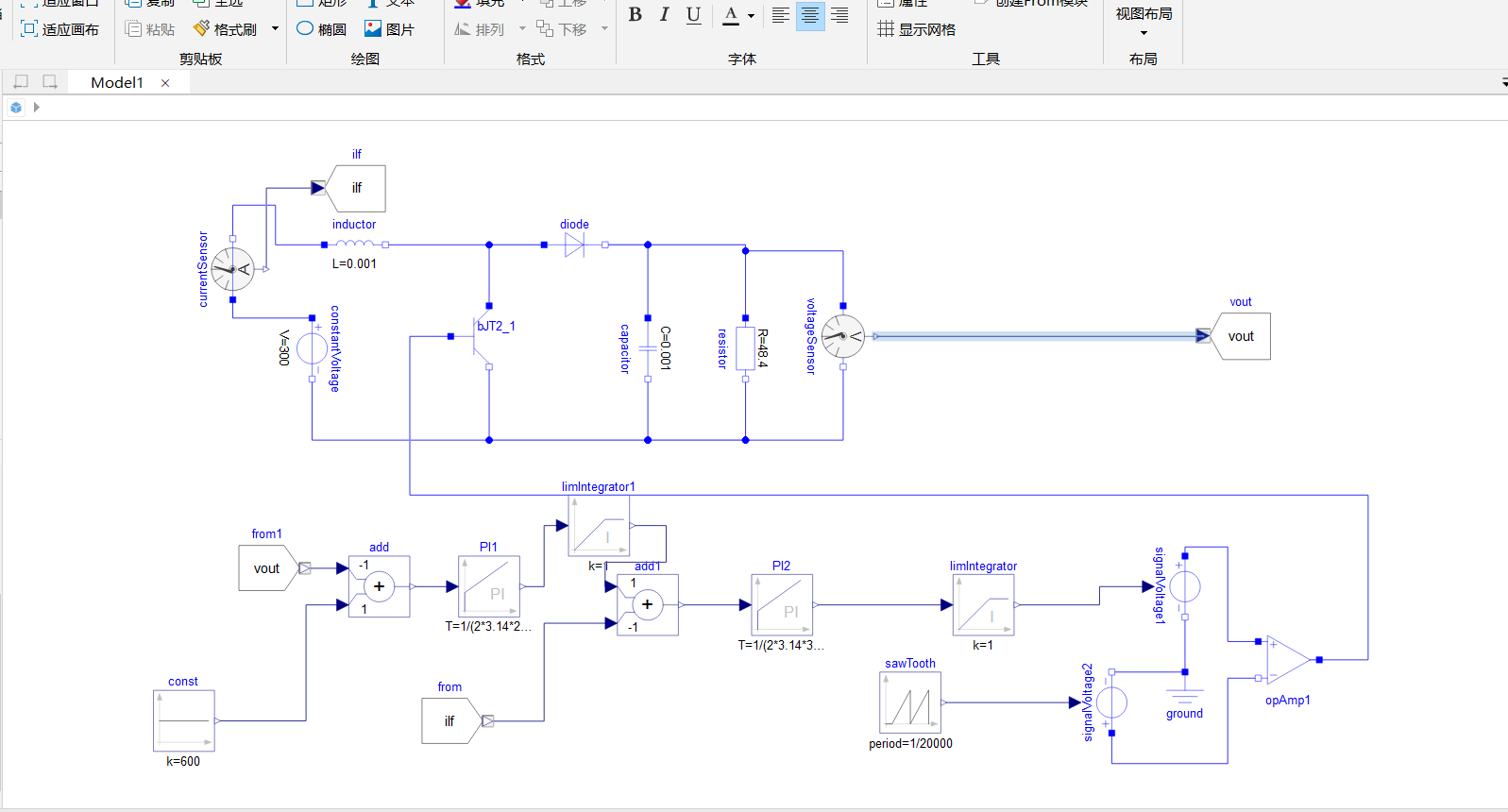

3.在sysplorer中搭建的Boost升压电路输出值错误,在PSIM中搭建的相同的Boost升压电路，输入直流电压300V,输出电压为600V，在sysplorer中输入直流电压300V输出仍为300V?
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(8kb)
