运行example时解析模型错误，组件的类型查找不到
一般问题
发布于 2024-11-12 08:23:27
查看 16过去594天

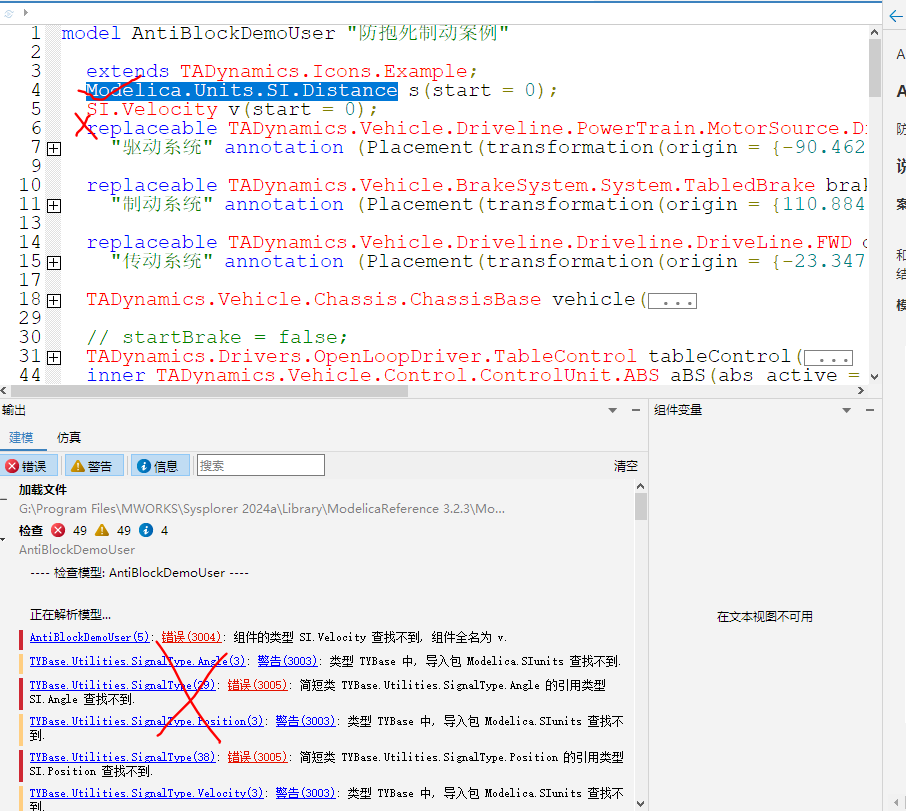

问题描述：尝试运行TADynamics > Example > VehicleTest > AntiBlockDemo时，检查模型，出现大量错误，如下图1。
软件版本：sysplorer 2024a

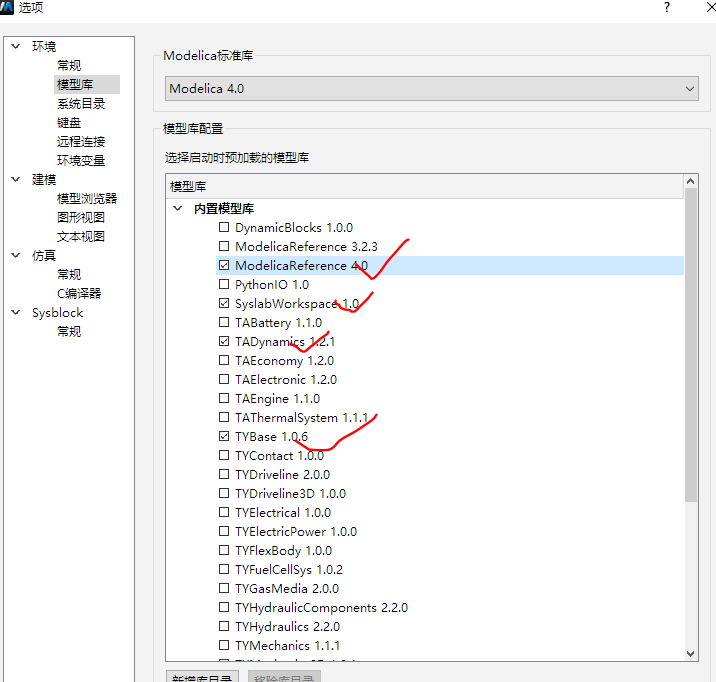

尝试操作：已经加载的模型库如下图。根据文档帮助，尝试将出错的组件类型SI.Distance改成Modelica.Units.SI.Distance，似乎可以消除错误。但是因为有几十个同样的错误，是否有更简便的办法来处理呢？
所属专栏：模型库
产品信息：Sysplorer系统建模仿真环境
