transformer一般问题
发布于 2024-11-13 18:14:38
查看 17过去728天

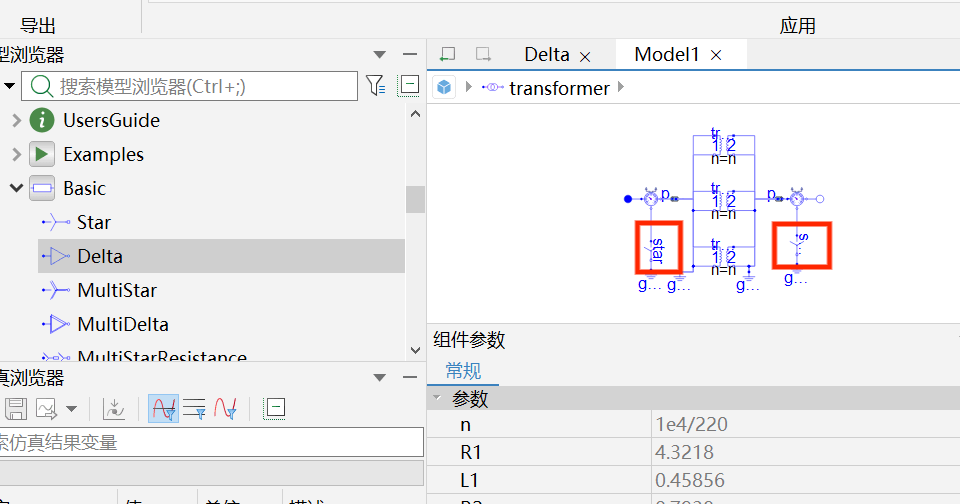

请问，transformer模块中的接线star模块如何用delta模块替换？感觉不能修改模型库中的模型，也不能拷贝重新制作模块。我需要Y/D-11型变压器。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
请问，transformer模块中的接线star模块如何用delta模块替换？感觉不能修改模型库中的模型，也不能拷贝重新制作模块。我需要Y/D-11型变压器。
您好，商业库中的组件无法修改和复制，您可以新建模型后对照结构重新搭建。
