关于机械库中球的的使用问题
一般问题
发布于 2024-11-13 18:52:14
查看 15过去592天
想问一下，如何将这个球设置在一个平面（模型中有一个平面）上移动，如何将这个模型库中的球放上去。并且移动到停止，主要是如何定位放到平面
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
想问一下，如何将这个球设置在一个平面（模型中有一个平面）上移动，如何将这个模型库中的球放上去。并且移动到停止，主要是如何定位放到平面

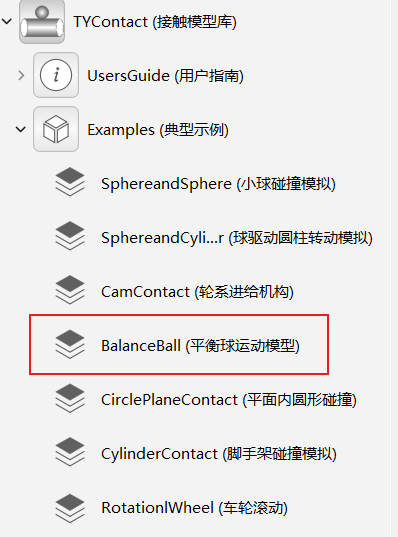

您好，可以参考此示例(TYContact.Examples.BalanceBall)进行搭建，使用TYContact进行建模
