两模块连接器类型不兼容一般问题li1671发布于 2024-11-14 21:34:34查看 7过去591天连接器类型不匹配 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 1 个附件(6kb) 屏幕截图2024-11-14213301.png5.21 KB 写回答 关注问题 点赞 0 踩 0 收藏 0

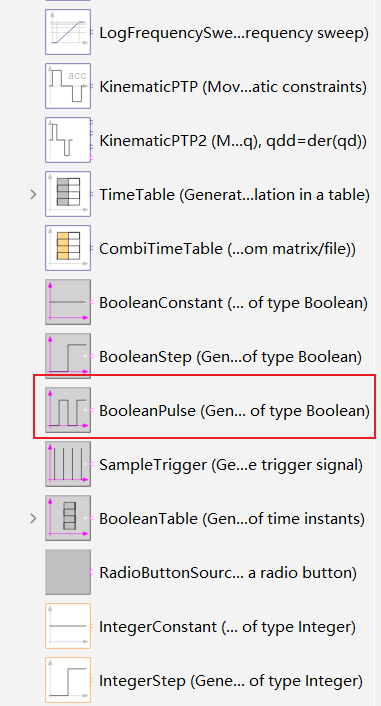

MoHub发布于 2024-11-15 09:18:45您好，两个组件接口数据类型不一致，图片中pulse输出数据类型为实型，not输入数据类型为布尔型，所以不能连接。 您可以以下组件，将其与not组件连接 0 0回复
MoHub
1 个附件(6kb)
