连接器的类型不匹配问题：sysplorer中联动syslab函数
一般问题
发布于 2024-11-14 23:01:59
查看 11过去591天
Sysplorer中调用了一个syslab的function, 其中该function的输入是时间，输出是根据时间变化的某个值。

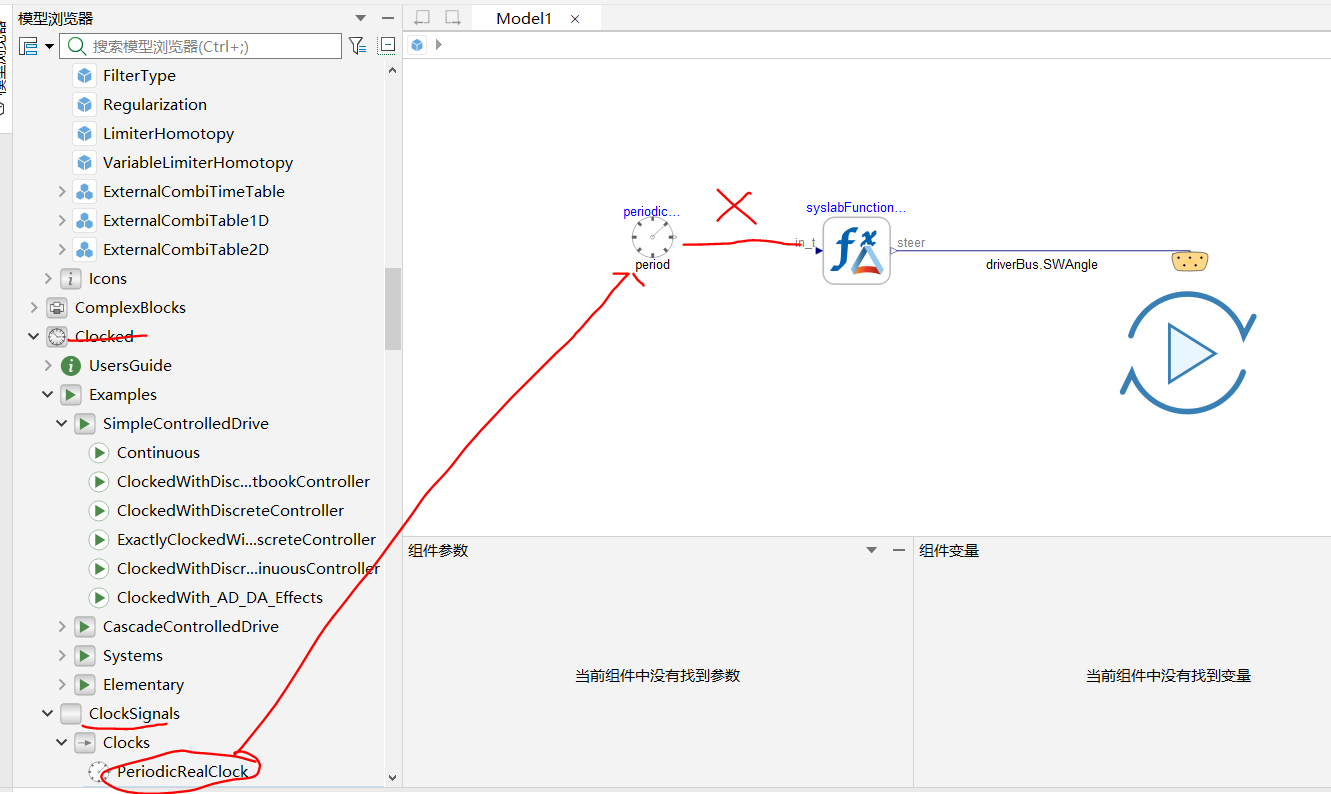

现添加modelic-Clocked-ClockSignals-Clocks-PeriodicRealClock作为时间，输入到syslab的function中，但是连线时显示连接器的类型不匹配。
请问：问题出在哪里？如何修改？哪里有教程介绍连接器匹配的问题呢？
所属专栏：Sysplorer基础平台
