MoHub
Sysplorer基础平台建模
一般问题
发布于 2024-11-15 13:10:27
查看 22过去590天
我们就是打算在底下加个固定支持代替底座。然后上面刚连接一个直径为35mm的圆柱，然后在35mm的圆柱上面刚连接一个直径为30mm的小圆柱，然后因为有轴承可以旋转我们就添加了个旋转副。然后在旋转副上连接了一个圆柱体作为套筒。然后因为有悬臂梁，我们就用工字梁代替了。但是结果图不对。!

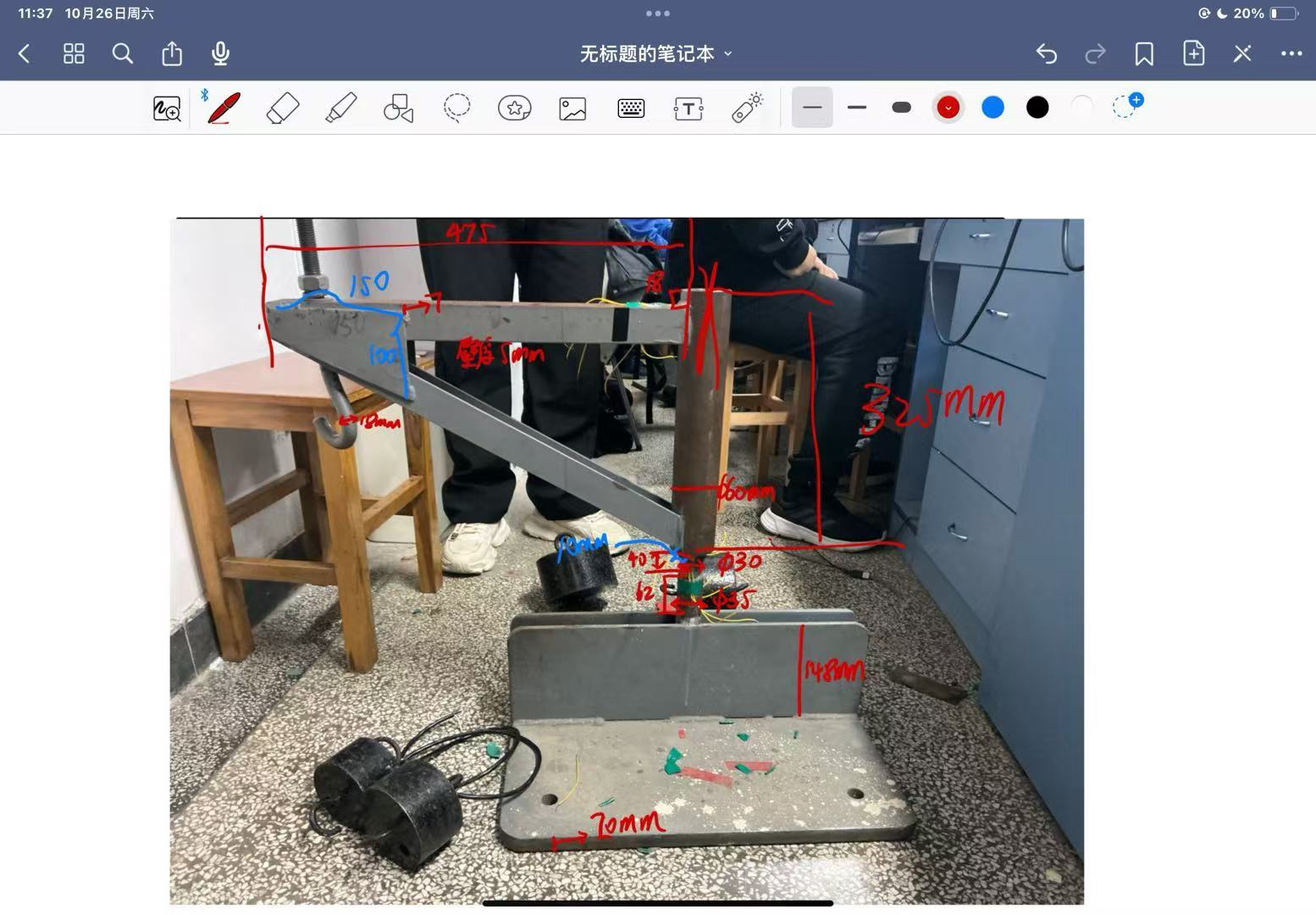

!这个是目标a6b4499dfb0800ad341c8065eabb0186.jpg这个是效果
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
