继电器建模一般问题
发布于 2024-11-15 21:42:02
查看 7过去726天

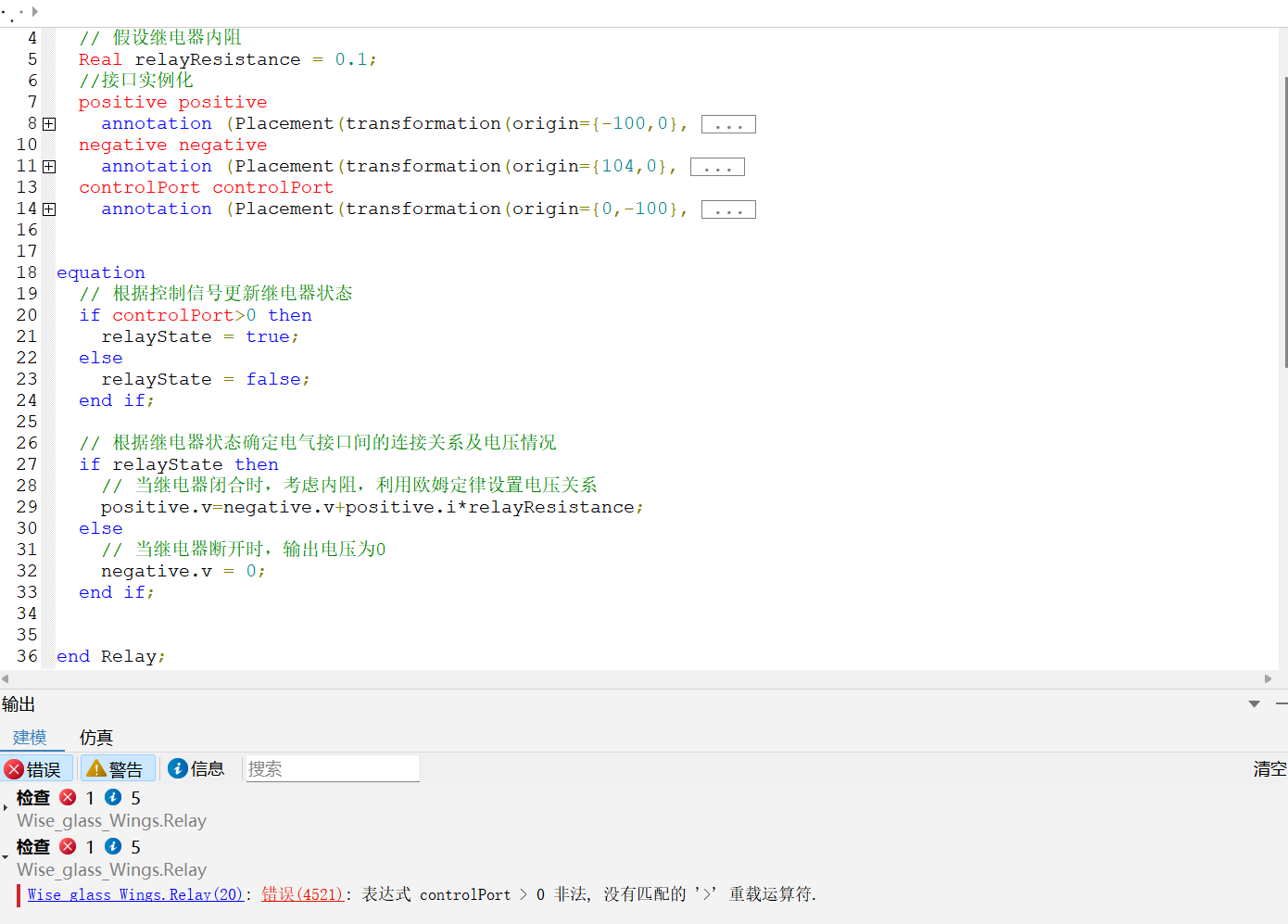

这是什么问题，该怎么解决，想建立一个继电器模型应用在蓄电池作为电源的电路中，该怎么建立
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
这是什么问题，该怎么解决，想建立一个继电器模型应用在蓄电池作为电源的电路中，该怎么建立
您好，您的controlPort是接口，if方程的条件语句应该判断具体变量与某个值的大小关系，应该是controlPott.xx(接口里的具体变量名)>0。
