请问齿轮与齿轮之间配合
一般问题
发布于 2024-11-19 16:05:49
查看 17过去586天
在Sysplorer 软件中我导入的step格式的装配体有很多齿轮与齿轮之间的配合，请问这怎么添加齿轮配合和旋转驱动进行仿真？可以给我找一个齿轮配合的例子吗？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
在Sysplorer 软件中我导入的step格式的装配体有很多齿轮与齿轮之间的配合，请问这怎么添加齿轮配合和旋转驱动进行仿真？可以给我找一个齿轮配合的例子吗？

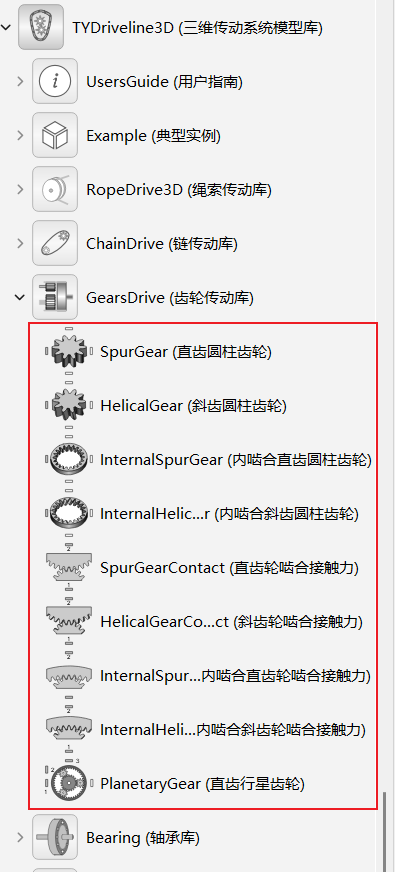

您好，当前CAD工具箱暂不支持齿轮副，您可以在模型中添加标架，然后使用齿轮传动库接入到模型中进行仿真，如下图。
注：此模型库需要升级为官网最新版本，请前往同元软控官网下载。
