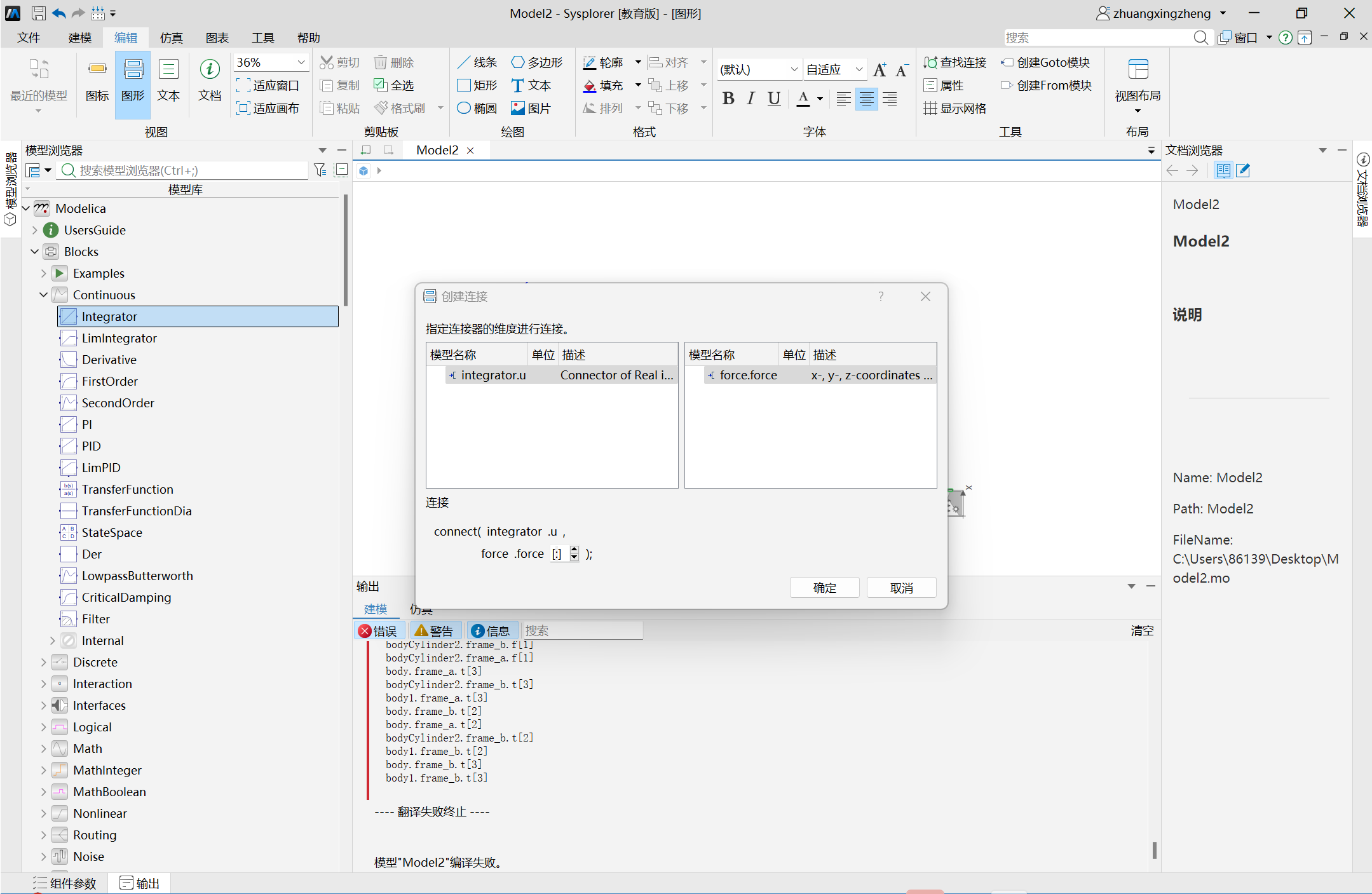

脉冲力怎么加？方向怎么设置？一般问题zhuangxingzheng发布于 2024-11-21 00:47:34查看 6过去585天请问这个信号的加方向吗？怎么设置呢 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0

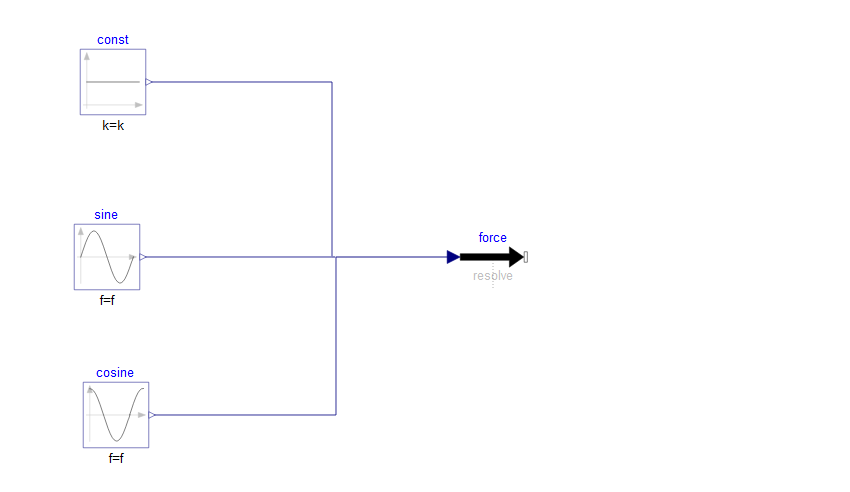

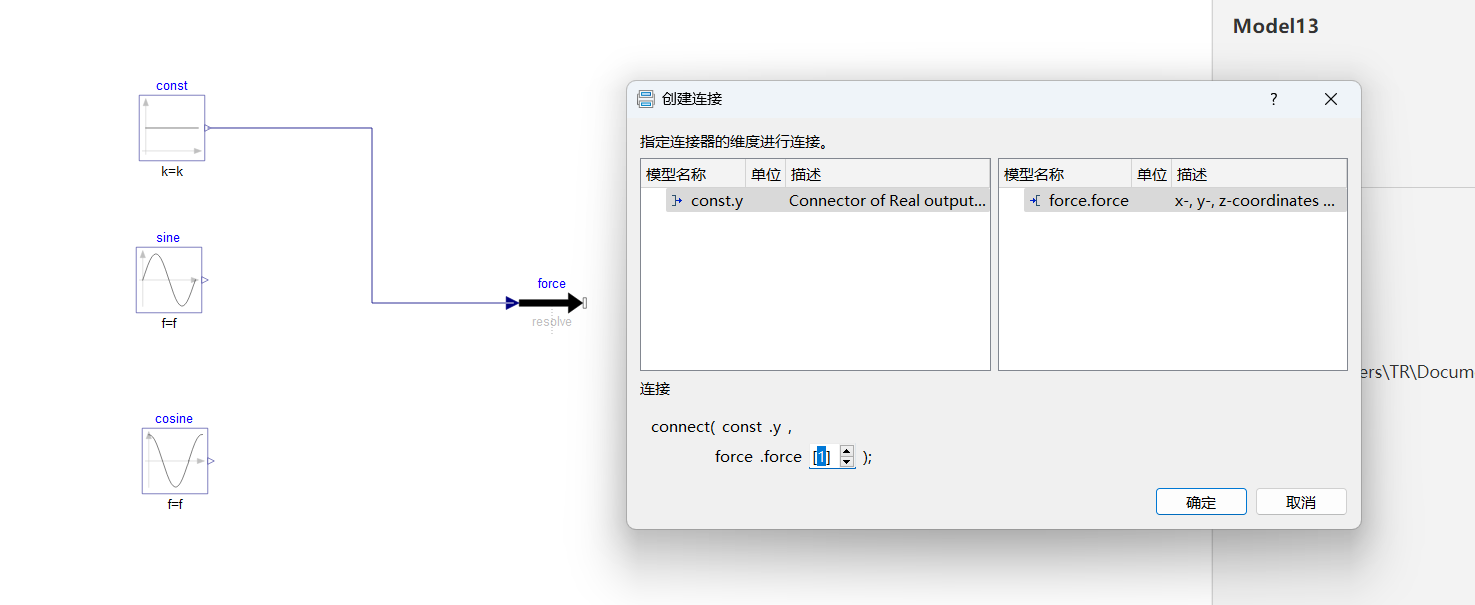

MoHub发布于 2024-11-21 08:29:48您好，这里面的force共有3个元素，force[1]、force[2]、force[3]分别代表世界坐标下x方向、y方向、z方向的三个方向的里，只需要拖入block中source下面的组件，分别对应连线接上即可： 0 0回复
