sysplorer如何读取不断变化对Excel数据
一般问题
发布于 2024-11-21 10:12:45
查看 12过去585天
背景：设备通过传感器不断读取数据导入到Excel文件中，文件每秒不断刷新。
希望通过sysplorer来读取Excel文件，并根据Excel中输入值的变化更改机理模型。这个该如何做到？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2024-11-21 14:27:11

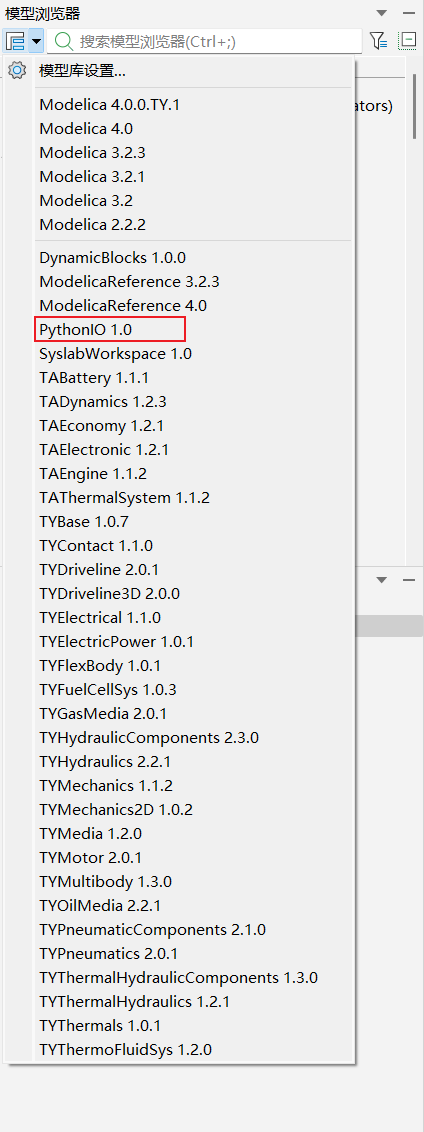

您好，Sysplorer支持使用通讯组件库直接与传感器进行通信，相关模型库为开源模型库，您可以点此链接查看相关模型。读取数据之后，可以通过Python IO组件内嵌修正算法来实现实际传感数据对机理模型的修正，Python IO组件也在Sysplorer中提供，您可以按照下图方式加载后进行查看
全部回答 2
发布于 2024-11-21 14:27:11
您好，Sysplorer支持使用通讯组件库直接与传感器进行通信，相关模型库为开源模型库，您可以点此链接查看相关模型。读取数据之后，可以通过Python IO组件内嵌修正算法来实现实际传感数据对机理模型的修正，Python IO组件也在Sysplorer中提供，您可以按照下图方式加载后进行查看
发布于 2024-11-21 14:48:28

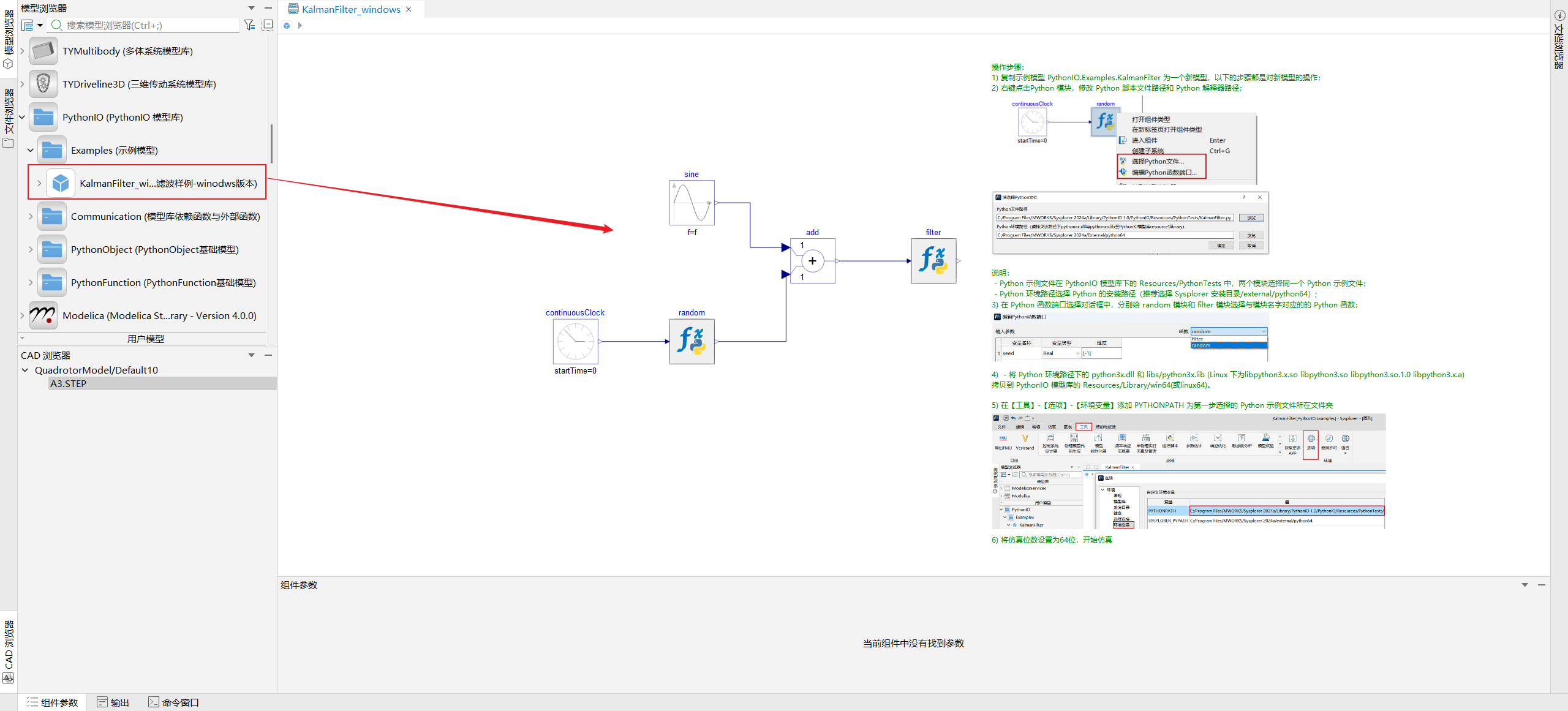

Python IO组件库中提供了相关案例，可以参考示例进行配置。
