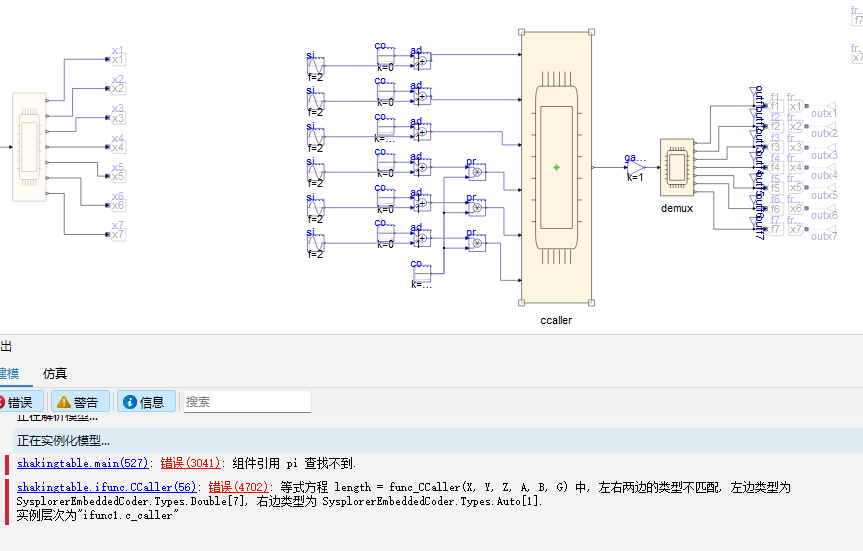

仿真出错一般问题fiofoiq1发布于 2024-11-21 11:30:17查看 8过去585天 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0

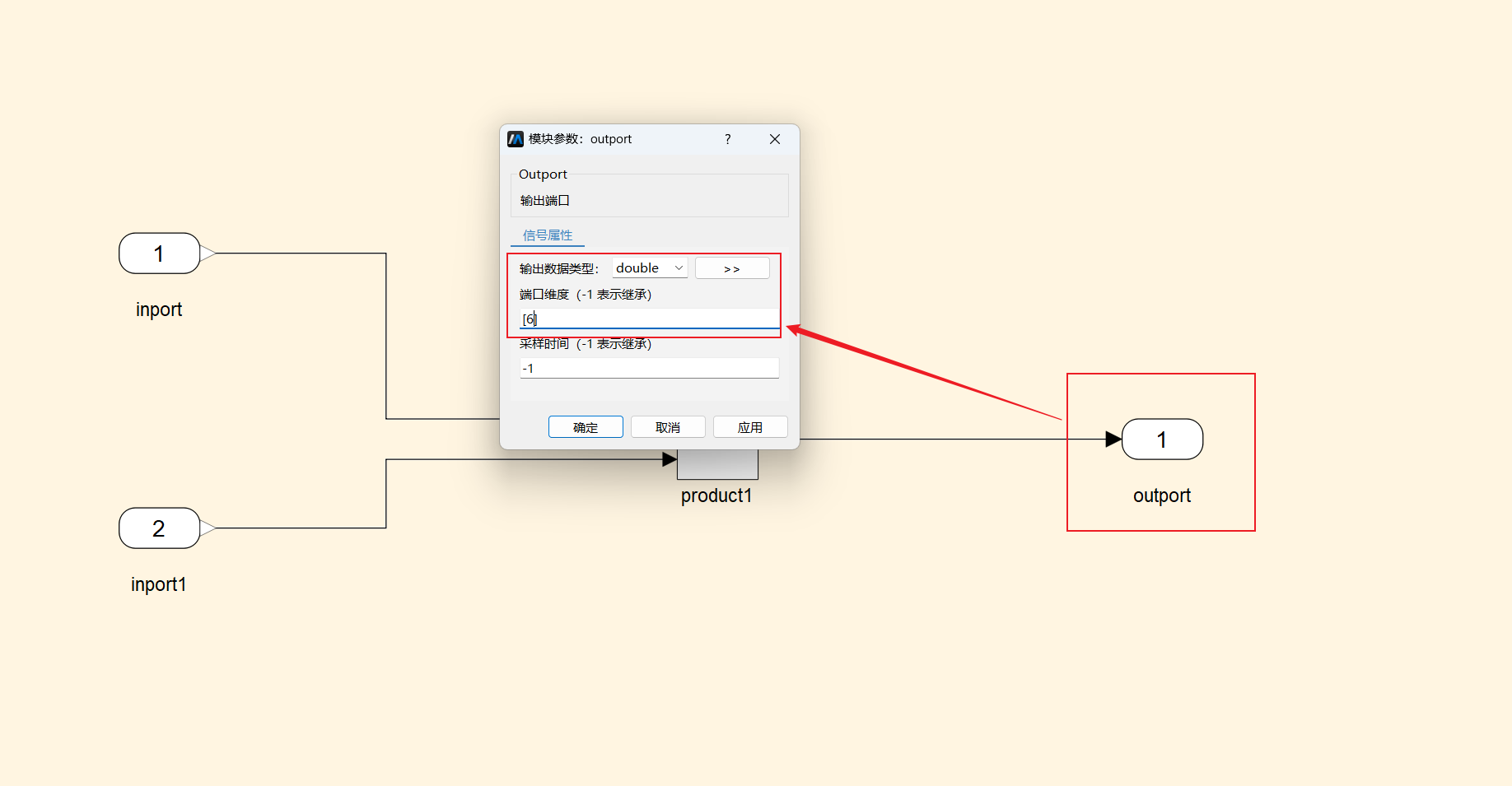

MoHub发布于 2024-11-21 11:53:36您好，组件引用pi查找不到是因为常数pi没有在后台代码中添加，需要您手动添加上。 “类型不匹配”问题需要您修改ccaller组件中输出接口的数据类型和维度，如下所示 0 0回复
