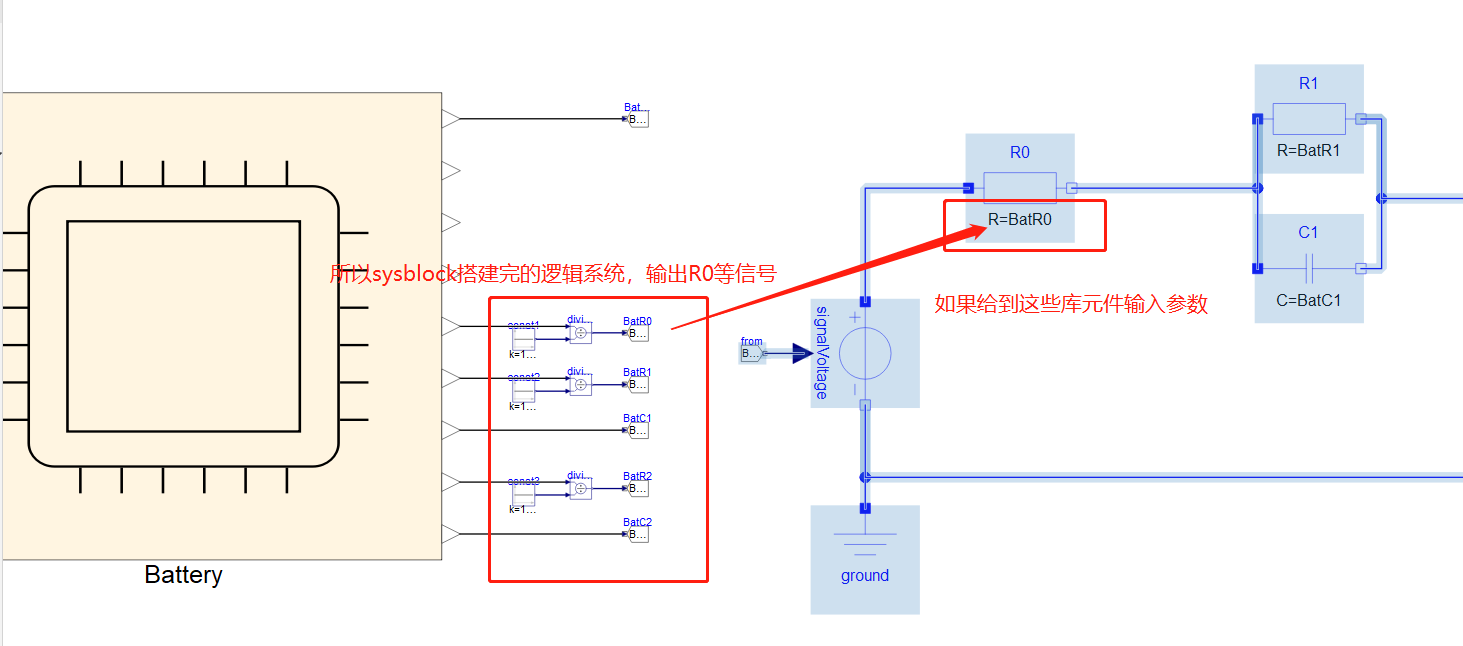

sysblock搭建完的逻辑模型输出信号怎么给到sysplorer中的模型库组件相关输入
一般问题
发布于 2024-11-21 15:28:20
查看 11过去584天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(48kb) 专栏
标签
高校专区
1 个附件(48kb) 采纳的回答
发布于 2024-11-21 16:35:33
您好，Sysblock模块求解输出的变量无法给组件参数赋值，会引起可变性不匹配的错误。
如您需要将控制逻辑输出的信号作为电阻的阻值，可以使用可变电阻器(TYElectrical.BasicComponents.IdealBasicComponents.VariableResistor)，将输出至连接至图中接口
全部回答 1
发布于 2024-11-21 16:35:33
您好，Sysblock模块求解输出的变量无法给组件参数赋值，会引起可变性不匹配的错误。
如您需要将控制逻辑输出的信号作为电阻的阻值，可以使用可变电阻器(TYElectrical.BasicComponents.IdealBasicComponents.VariableResistor)，将输出至连接至图中接口
