Modelica Electrical.Polyphase.Basic.Inductor inductor3
一般问题
发布于 2024-11-24 22:38:57
查看 11过去581天
inductor3的组件参数L fill(1, m)这个1表示电抗数组1行，m表示电感数值吗？三相交流系统中的电抗需要数组设为3行吗？相数已经是3phases了。还有这个模块怎么没有R电阻参数？
所属专栏：模型库
产品信息：Sysplorer系统建模仿真环境
inductor3的组件参数L fill(1, m)这个1表示电抗数组1行，m表示电感数值吗？三相交流系统中的电抗需要数组设为3行吗？相数已经是3phases了。还有这个模块怎么没有R电阻参数？
您好，m表示的是相数，fill(1,m)表示每相的电感为1H。

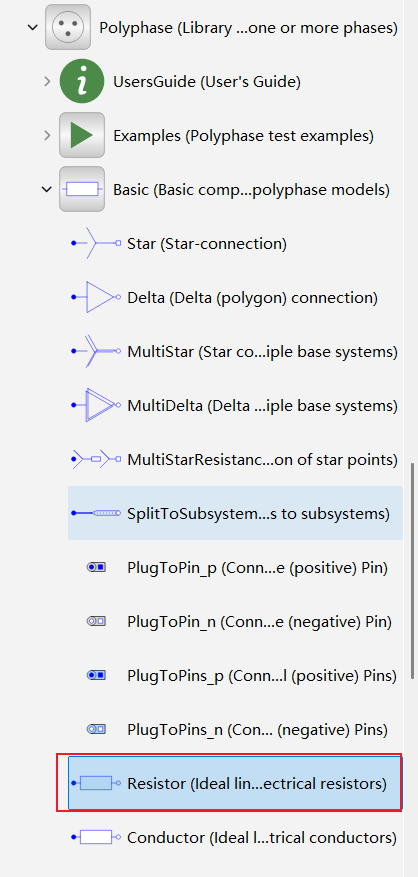

另外，此模块为电感模块，因此没有电阻参数，若要添加电阻请使用Modelica.Electrical.Polyphase.Basic.Resistor组件
