这两个组件换热量是对流换热量吗？
一般问题
发布于 2024-11-25 13:02:42
查看 31过去580天
两个单相离散管道，它们之间的换热是对流换热吗？如果不是的话它们之间的换热量该如何设定呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(44kb) 两个单相离散管道，它们之间的换热是对流换热吗？如果不是的话它们之间的换热量该如何设定呢？
1 个附件(44kb) 您好，在两管道间增加热组件表示其换热过程，下图分别表示对流换热和导热过程。
对呗，两侧流体之间的对流换热

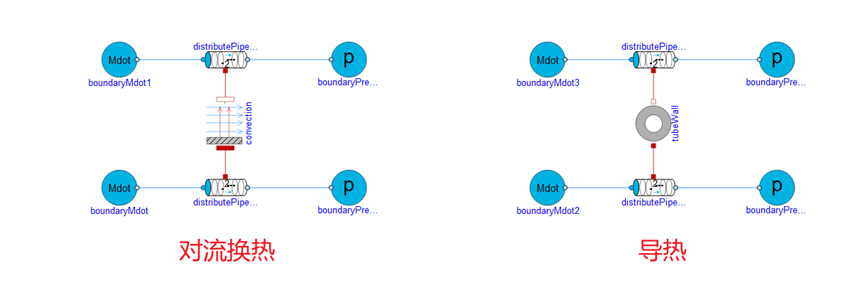

您好，在两管道间增加热组件表示其换热过程，下图分别表示对流换热和导热过程。
