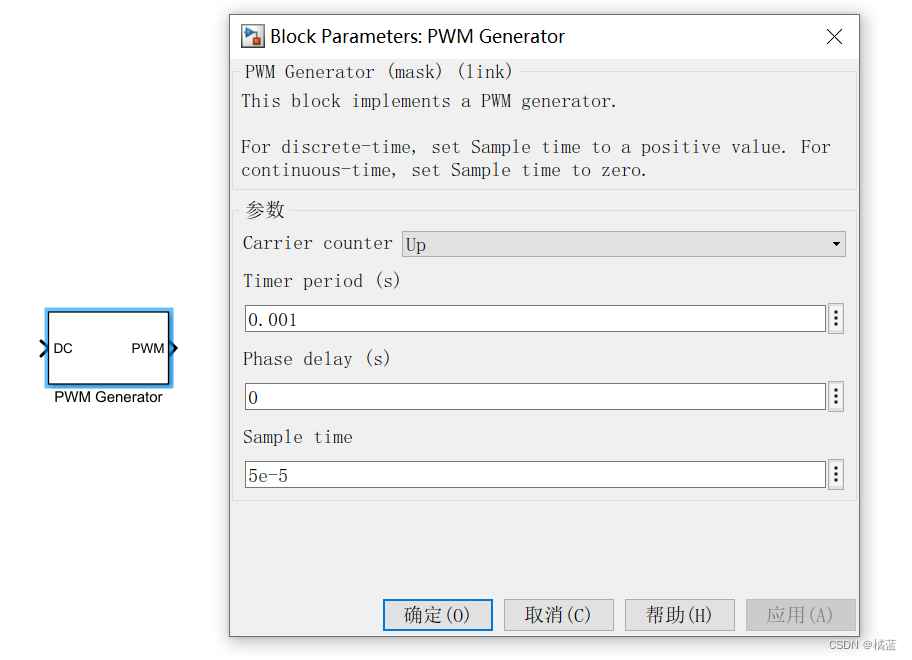

类似simulink中的PWM generation模块在哪找
一般问题
发布于 2024-11-25 13:42:00
查看 22过去580天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(69kb)

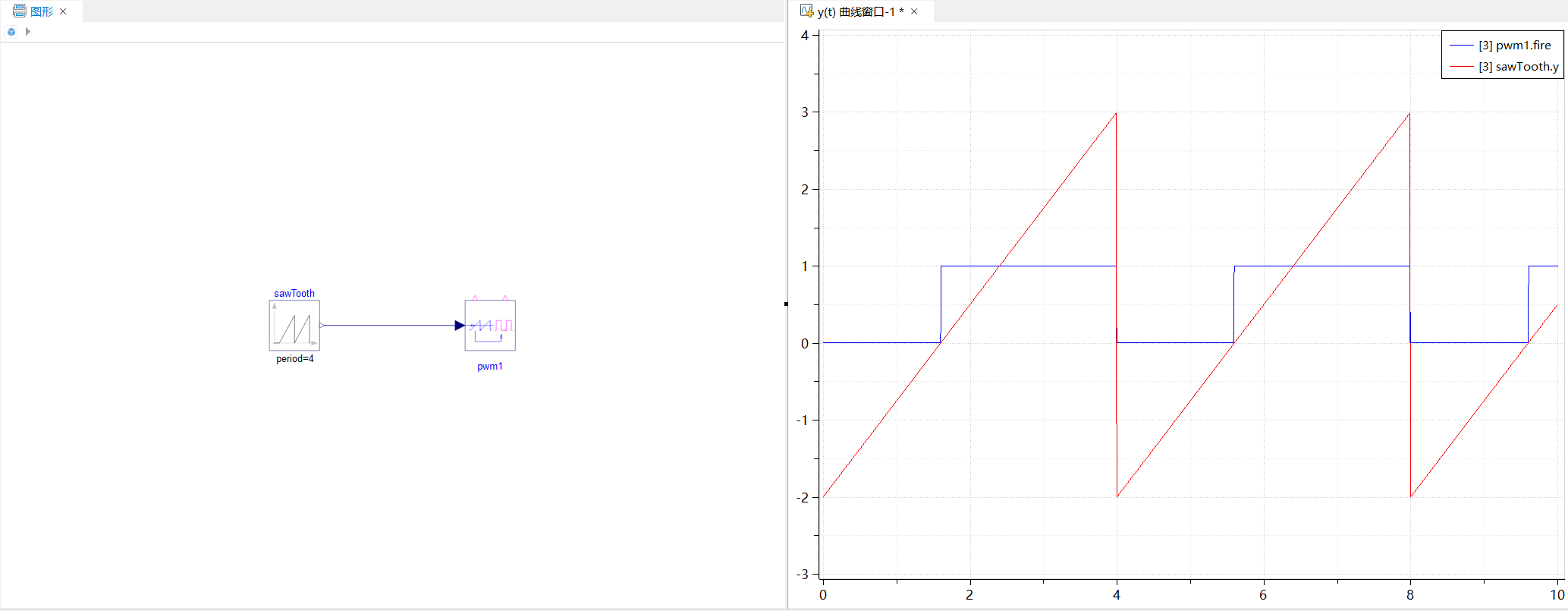

1 个附件(69kb) 您好，Modelica标准库提供了Modelica.Electrical.PowerConverters.DCDC.Control.SignalPWM组件，其可以根据输入的锯齿信号产生pwm信号，示例模型如下

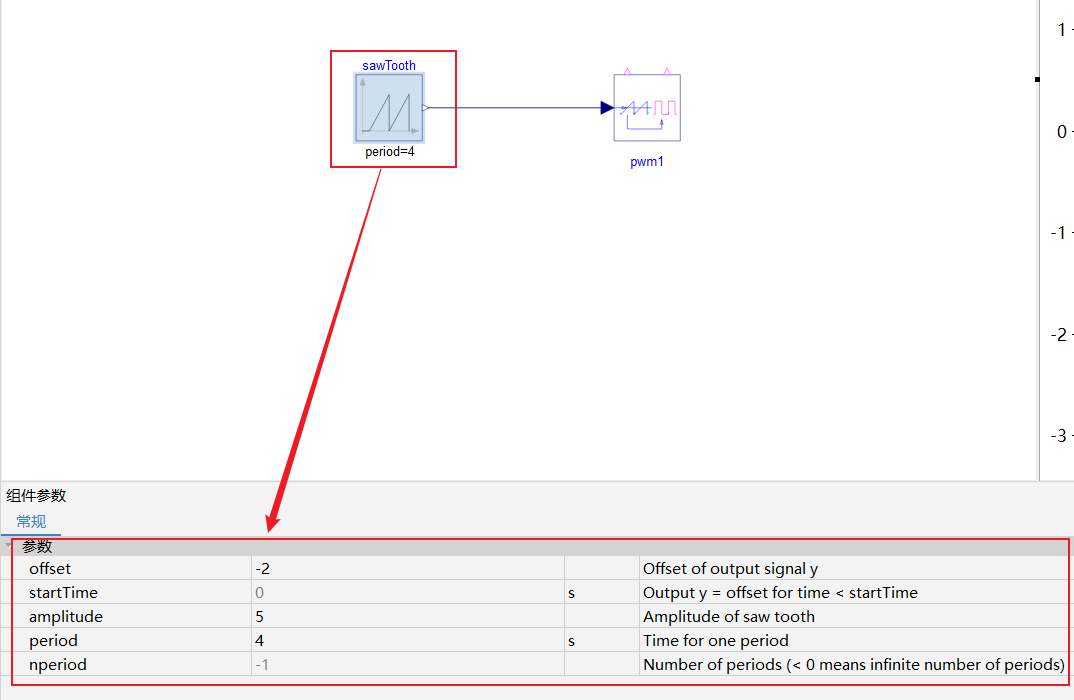

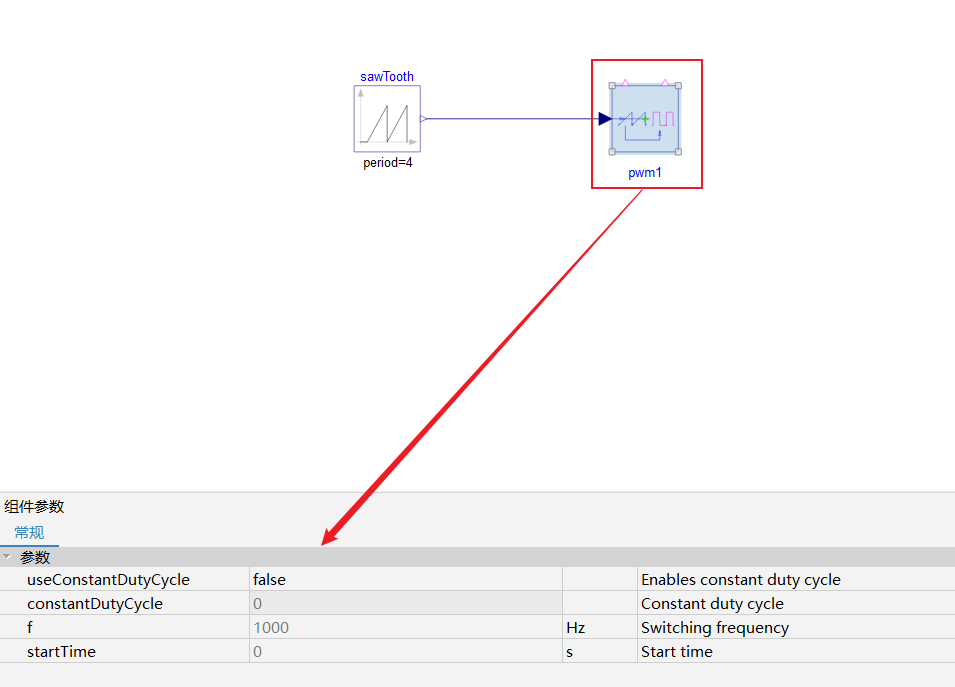

各组件参数如下
图中的PWM1生成的信号不能和IGBT进行电气连接
