整车空调热管理系统
一般问题
发布于 2024-11-26 20:37:59
查看 22过去579天

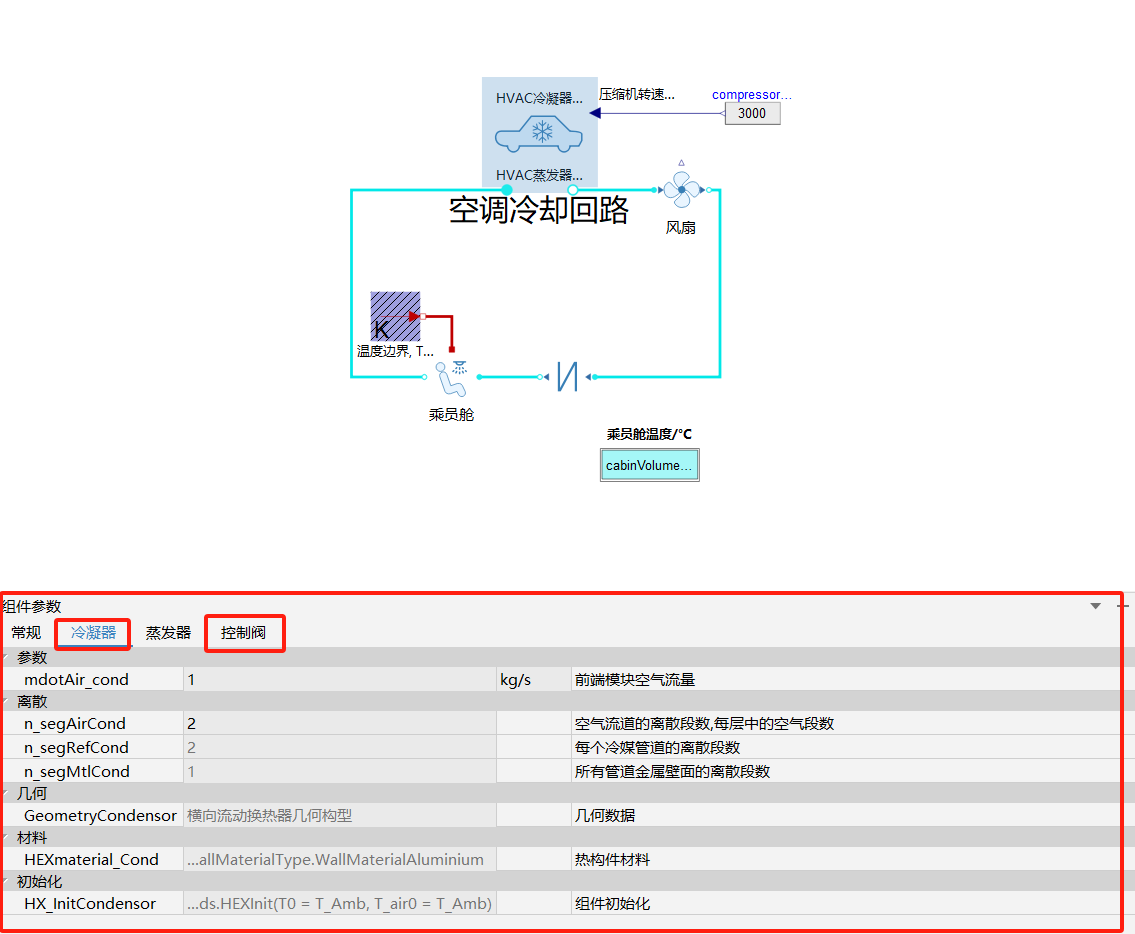

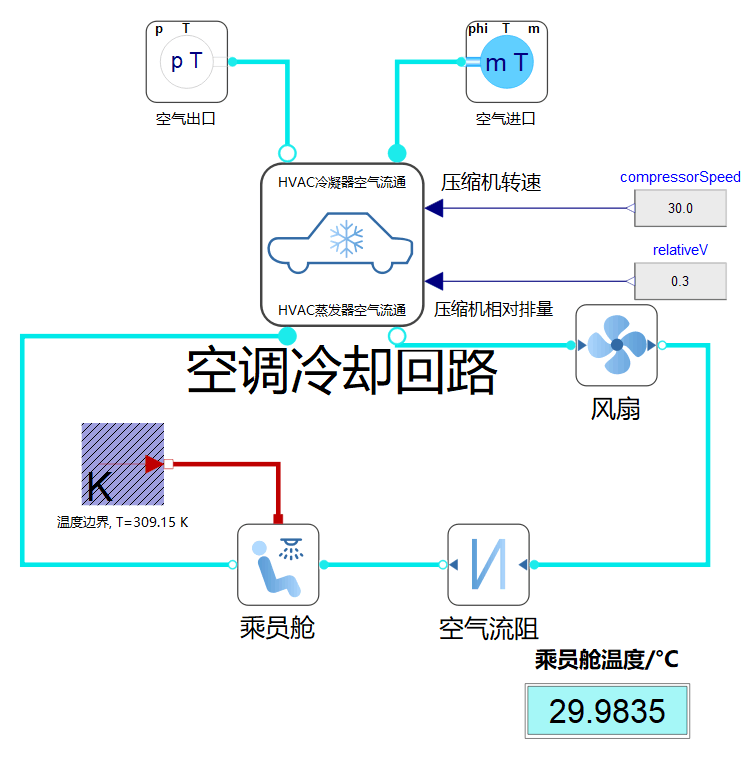

图1为同元手册里整车空调热管理系统的搭建实例图，我在仿照搭建的时候（图2）发现图片里面例子的空调比库里面的多了三个接口，在忽略他们的情况下进项仿真一直得不到正确的图像，请求帮助
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2024-11-27 09:15:00
您好，图1是老版本的车辆热管理模型库，新版本不需要外接接口，可在参数面板中设置，仿真结果正确与否不取决于结果是否与图一结果一致。可参考模型库示例TAThermalSystem.Examples.System.CabinDemoSimple
帮助文档示例贴图滞后，将于12月30日之前更新修改，感谢您的反馈。
全部回答 1
发布于 2024-11-27 09:15:00
您好，图1是老版本的车辆热管理模型库，新版本不需要外接接口，可在参数面板中设置，仿真结果正确与否不取决于结果是否与图一结果一致。可参考模型库示例TAThermalSystem.Examples.System.CabinDemoSimple
帮助文档示例贴图滞后，将于12月30日之前更新修改，感谢您的反馈。
