自搭组件参数缺失
一般问题
发布于 2024-11-27 15:45:20
查看 9过去578天

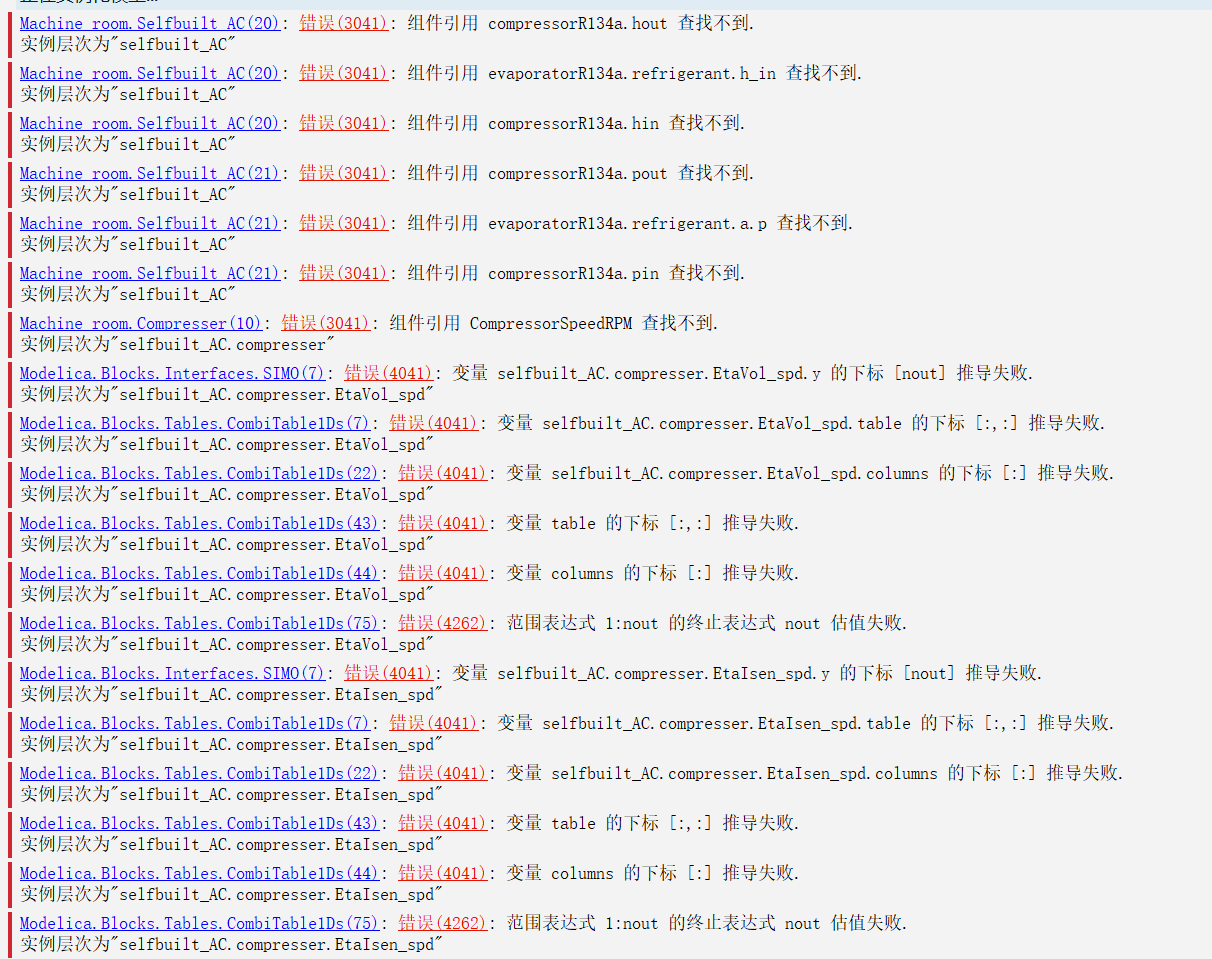

这些参数还有下标推导应该怎么修改啊T_T
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
3 个附件(25kb) 这些参数还有下标推导应该怎么修改啊T_T
3 个附件(25kb)

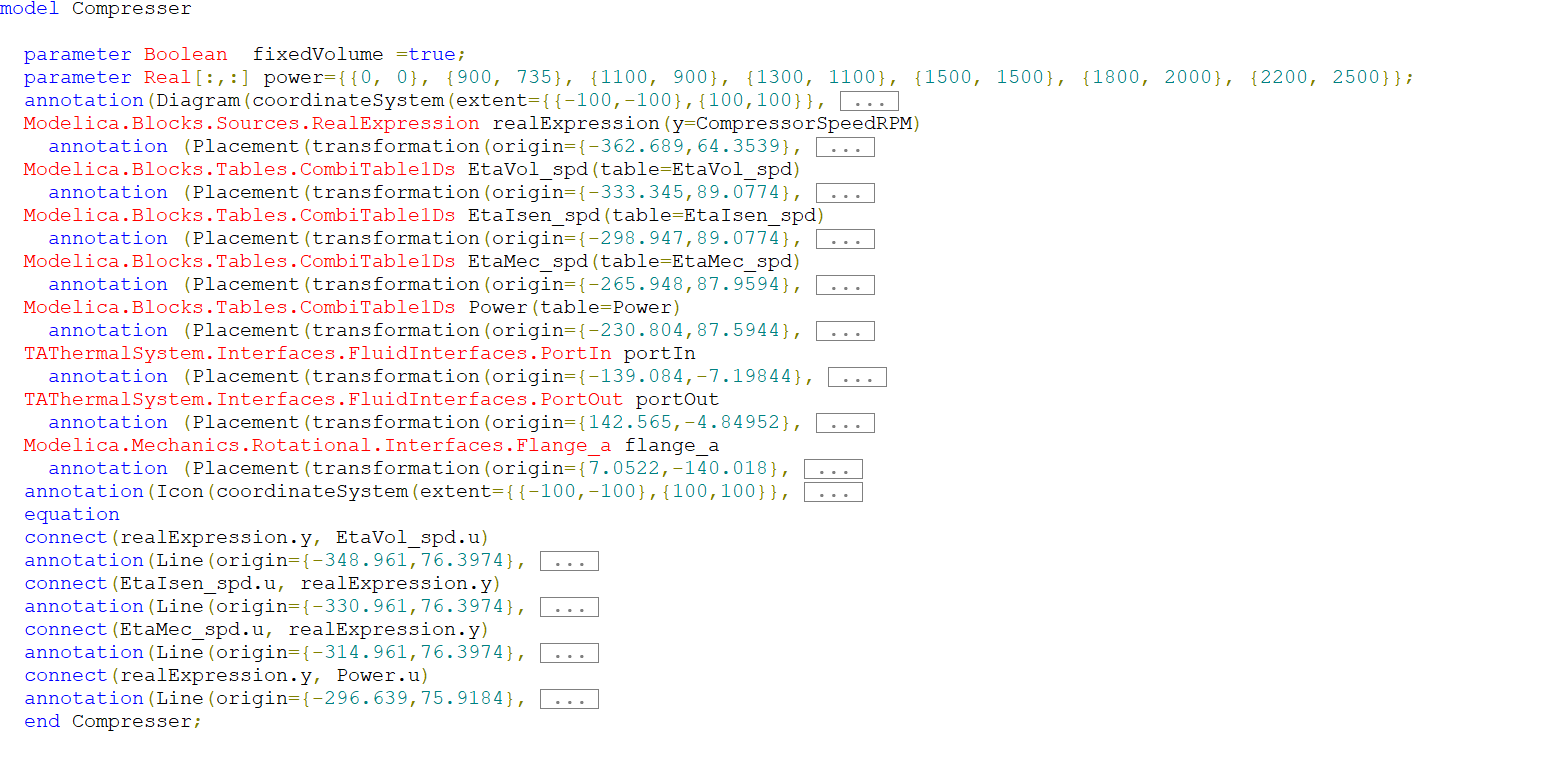

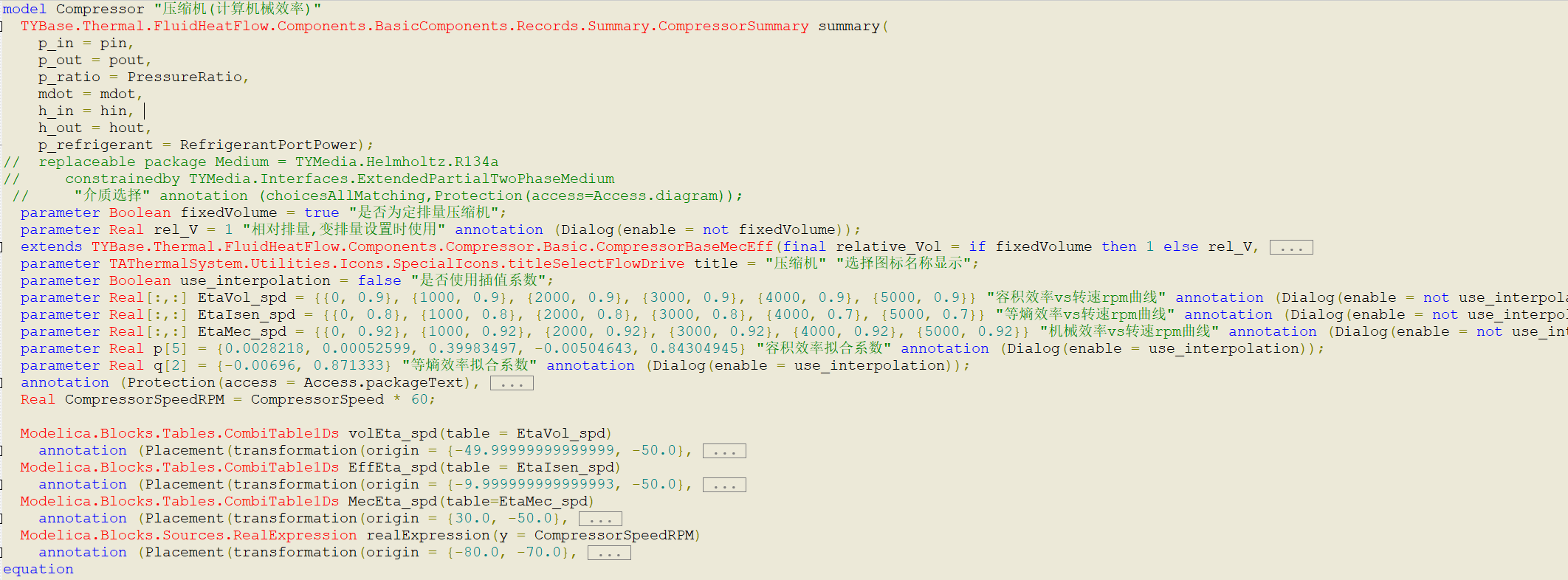

我的模型跟示例不一样的地方主要是压缩机这里，但是按照第一个图输入参数后发现无法编译

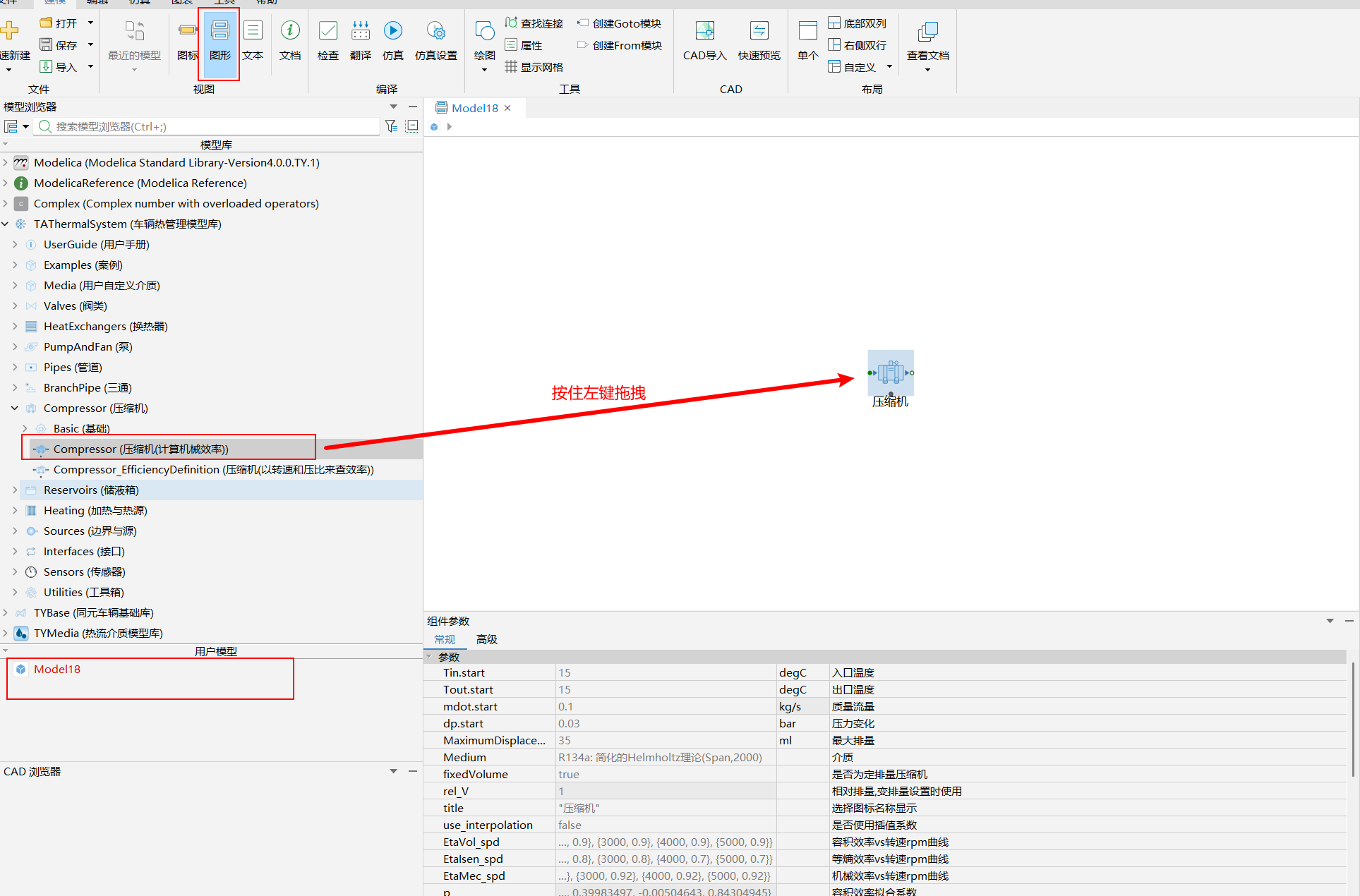

您好，如果只是想使用商业库组件，修改相关参数，可以直接新建模型后，将组件拖拽至图形界面，然后进行参数修改。
