SignalBus的使用方法
一般问题
发布于 2024-11-27 15:47:19
查看 5过去578天

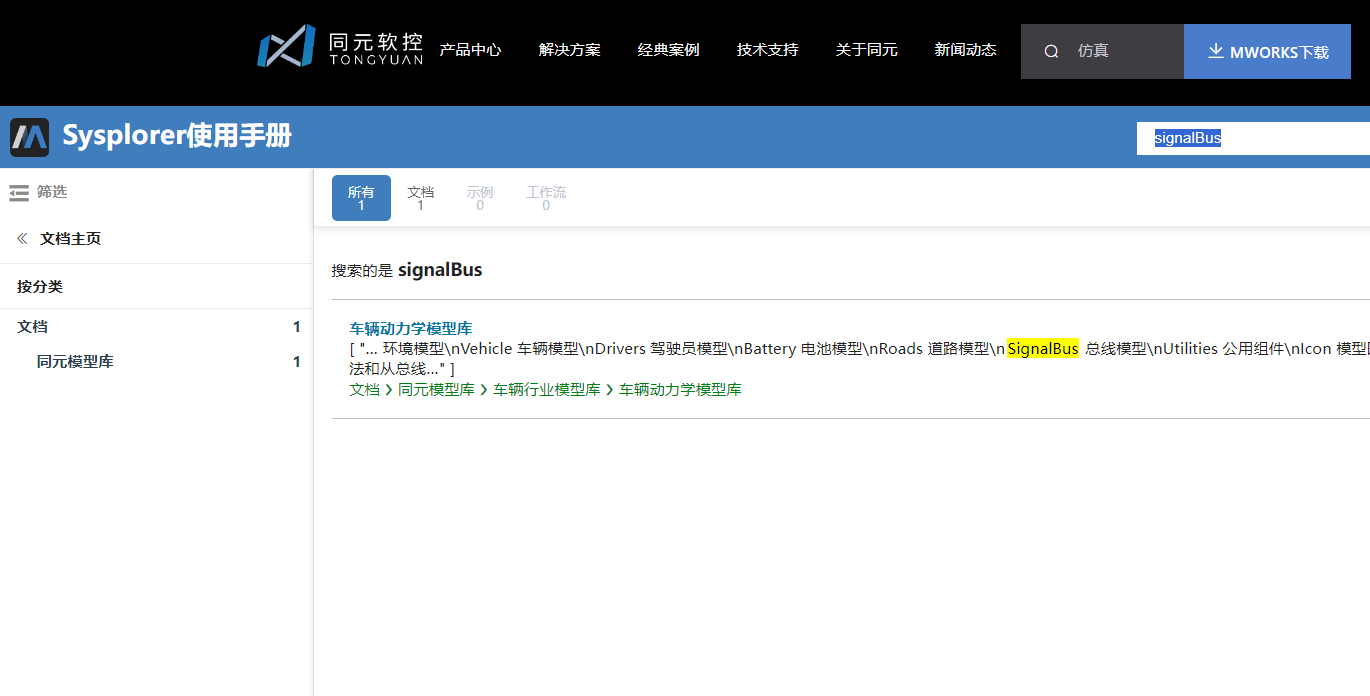

请问，Sysplorer的SignalBus如何使用？从官网手册搜索signalBus，只搜到一个结果：

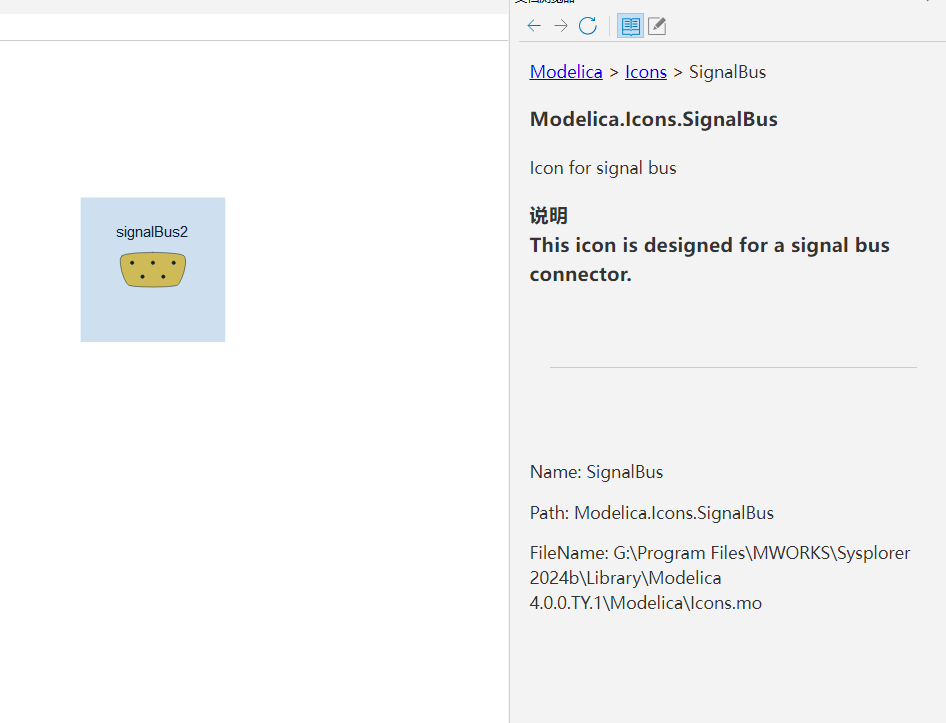

右键点击查看文档，只有下面结果：
。
SignalBus和SignalSubBus在使用上有何区别？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 1
发布于 2024-11-27 16:13:15
您好，此部分内容可以参考官网培训视频Modelica语法-第四章连接和连接器-可扩展连接器
