SignalBus如何在组件变量中显示信号变量？
一般问题
发布于 2024-11-27 17:40:03
查看 6过去578天

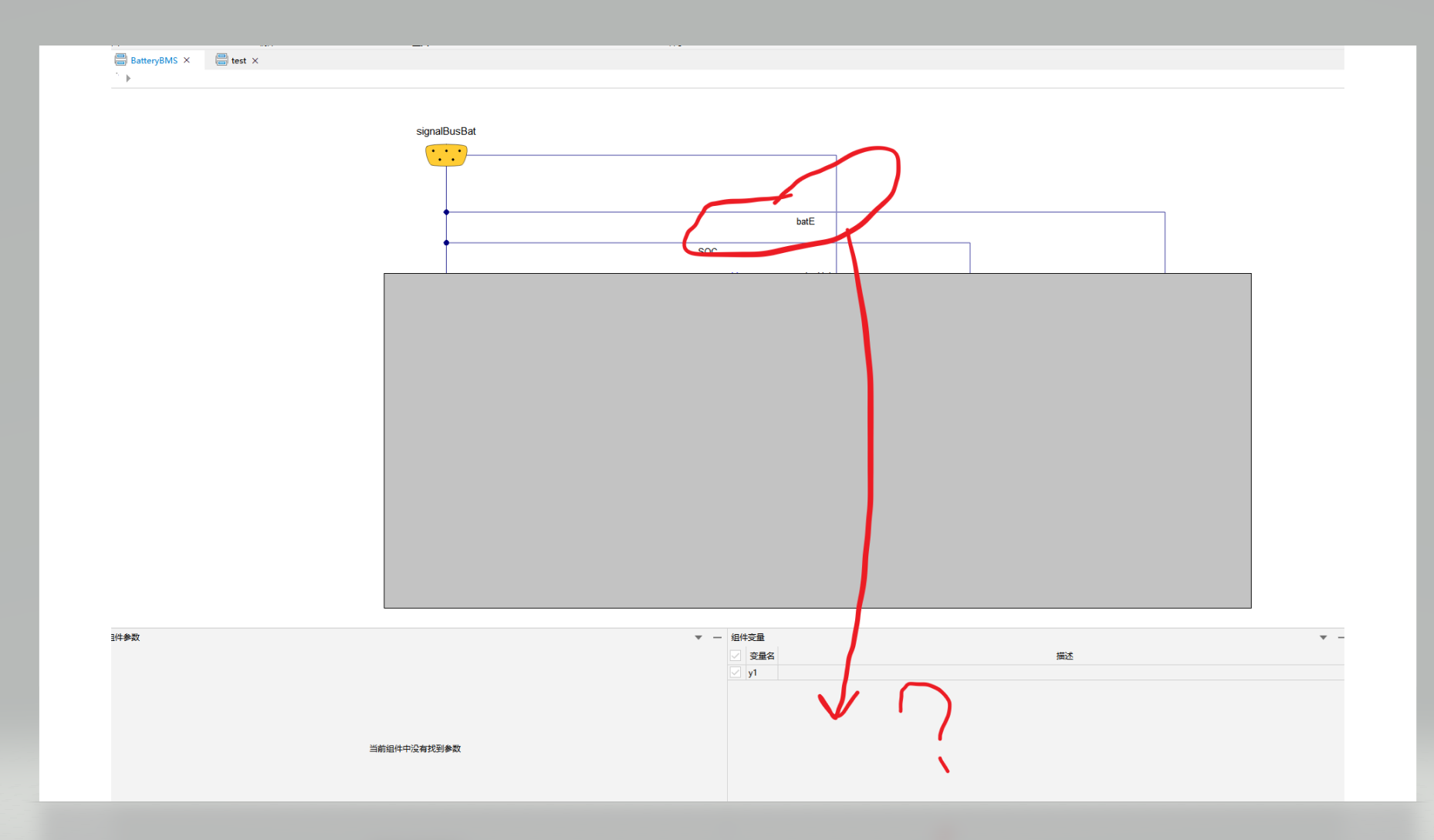

利用Sysplorer搭建模型，其中可扩展连接器signalBus连接了多个信号变量，但是在下面窗口中的组件变量中，并没有显示？
请问什么原因，及如何修改操作？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
利用Sysplorer搭建模型，其中可扩展连接器signalBus连接了多个信号变量，但是在下面窗口中的组件变量中，并没有显示？
请问什么原因，及如何修改操作？
您好，如果是直接使用的标准库组件，通过连线窗口add variable目前无法显示变量在变量窗口（已经提需求给产品部门，增加相关功能）。如果是通过modelica在文本界面定的变量，鼠标点击signalBusBat组件后即可在组件窗口显示组件变量
