重声明(redeclare)来改变组件的类型
一般问题
发布于 2024-11-28 09:44:59
查看 10过去578天
拖入了一个抽象类TADynamics.Icons.BrakePedal的组件，在使用之前必须通过重声明(redeclare)来改变组件的类型。注意重声明只适用于可替换(replaceable)的组件,因此应确保组件是可替按的。
请问具体该怎么操作
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
拖入了一个抽象类TADynamics.Icons.BrakePedal的组件，在使用之前必须通过重声明(redeclare)来改变组件的类型。注意重声明只适用于可替换(replaceable)的组件,因此应确保组件是可替按的。
请问具体该怎么操作

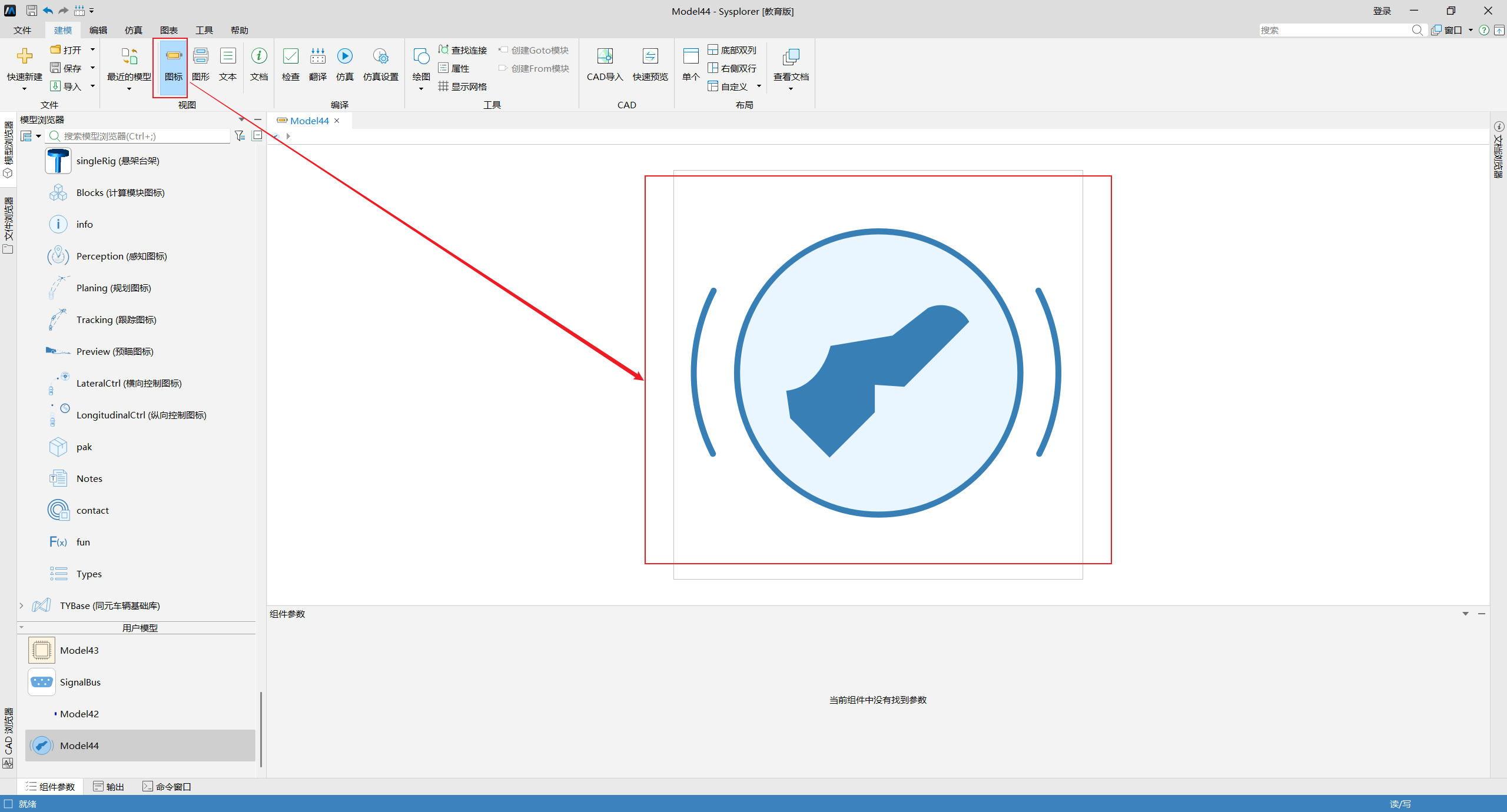

您好，该模型为图标模型，在文本视图中添加以下代码，图标层即会显示该图形
extends TADynamics.Icons.BrakePedal;
