对于输出的图像结果横纵坐标怎么命名一般问题
发布于 2024-11-28 16:03:38
查看 7过去622天
对于输出的图像结果横纵坐标怎么命名
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
对于输出的图像结果横纵坐标怎么命名

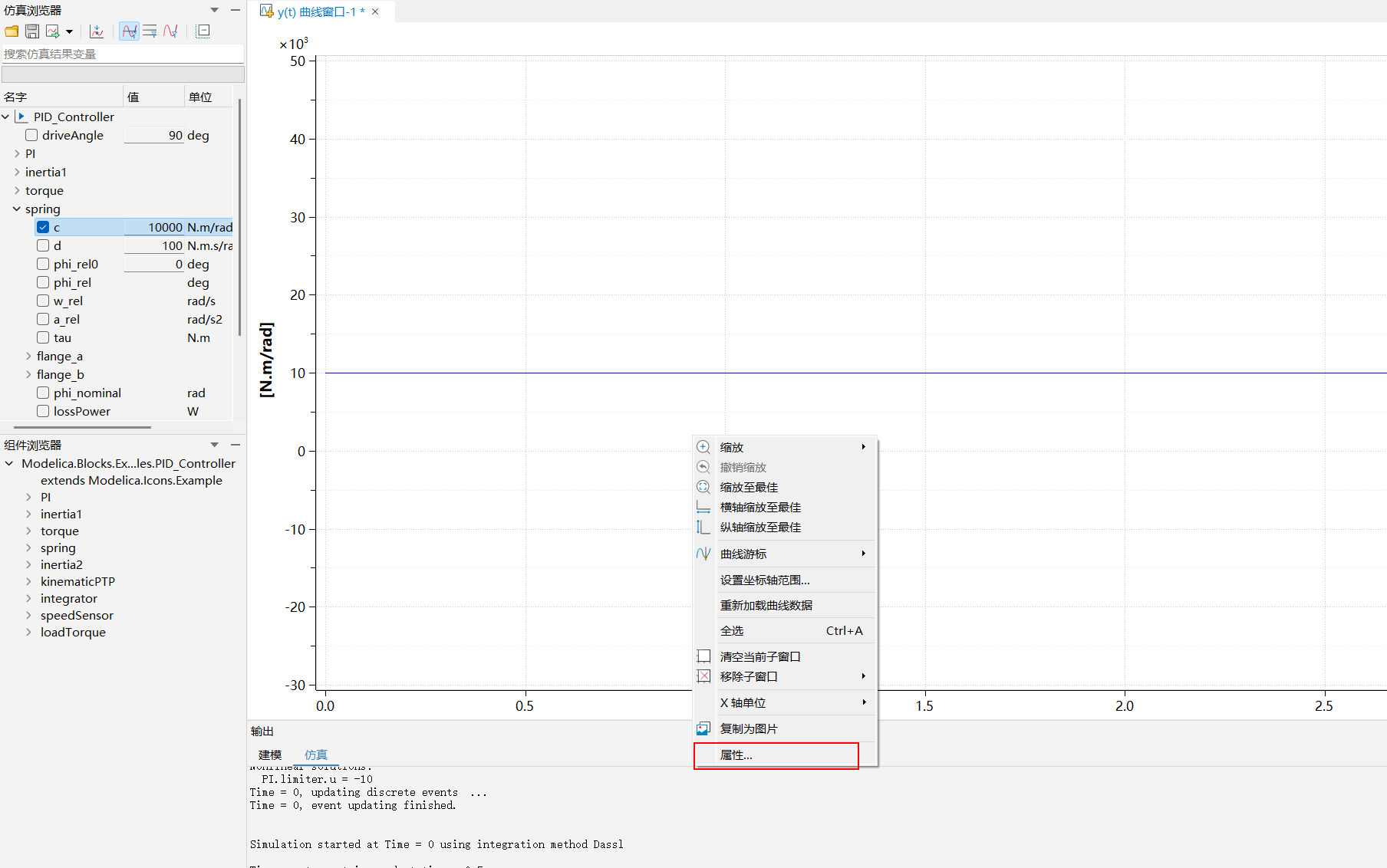

您好，Sysplorer中可以在图像窗口中点击鼠标右键选择属性

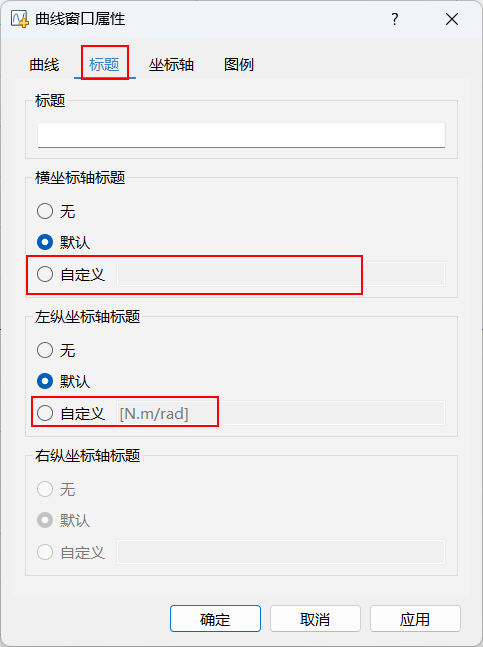

点击标题栏，可以对坐标轴名称进行修改
您好，Sysplorer中可以在图像窗口中点击鼠标右键选择属性
点击标题栏，可以对坐标轴名称进行修改
