变量问题
一般问题
发布于 2024-11-28 19:15:56
查看 18过去577天
设计了一个电路，当在6s时，给该电路中的开关一个断开信号时，为什么该电路中开关处的电流仍然存在且有微小的上升趋势，但是电压变为0；而定值电阻3处的电流和电压均有微小上升趋势
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境

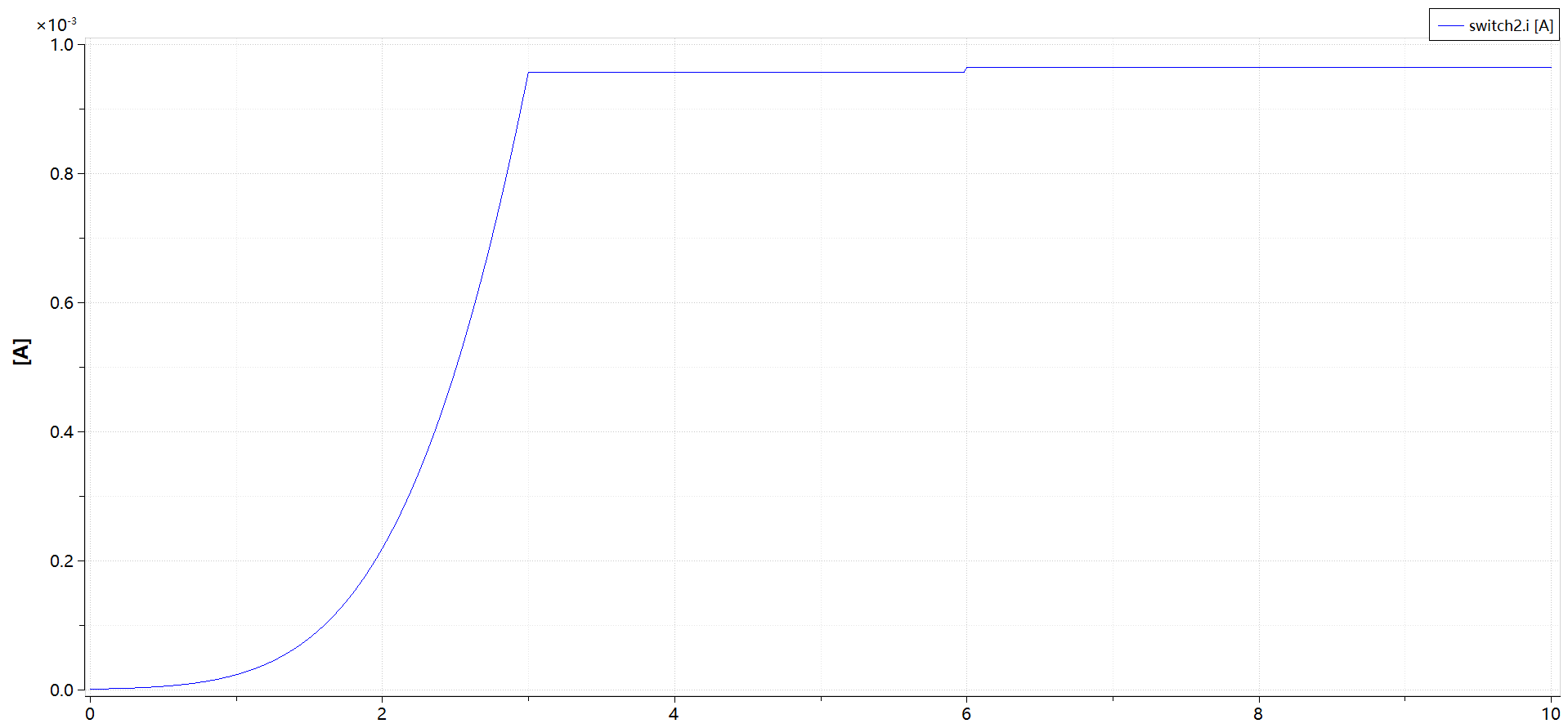

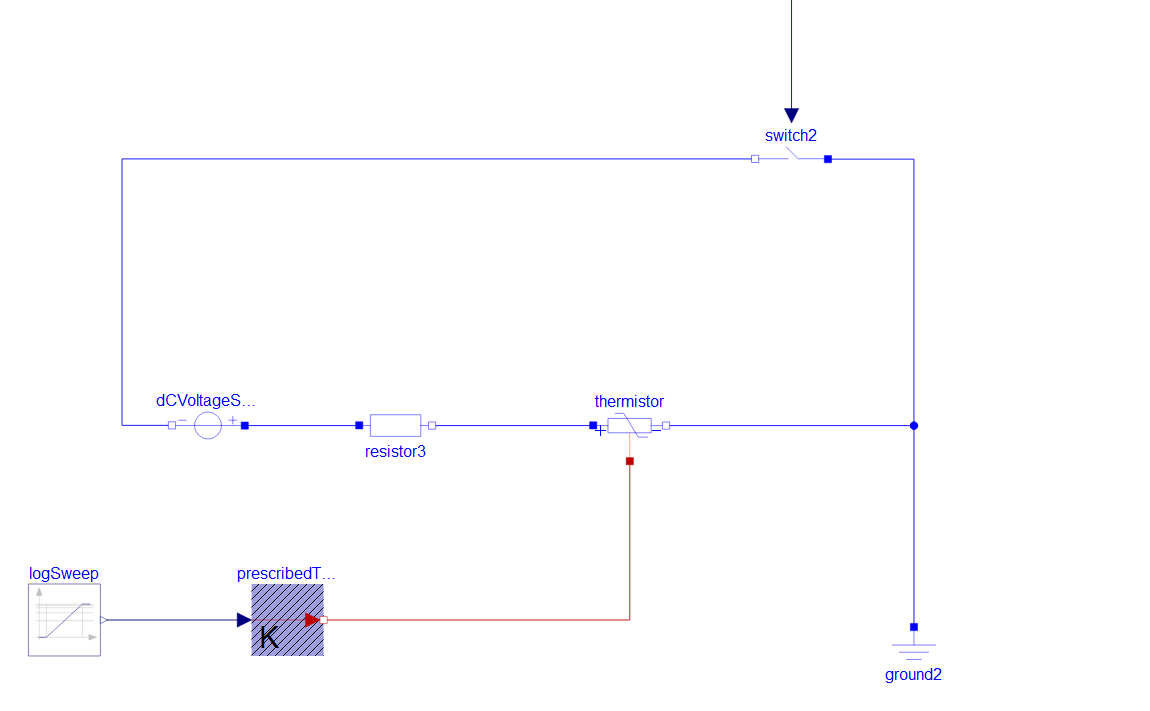

设计了一个电路，当在6s时，给该电路中的开关一个断开信号时，为什么该电路中开关处的电流仍然存在且有微小的上升趋势，但是电压变为0；而定值电阻3处的电流和电压均有微小上升趋势

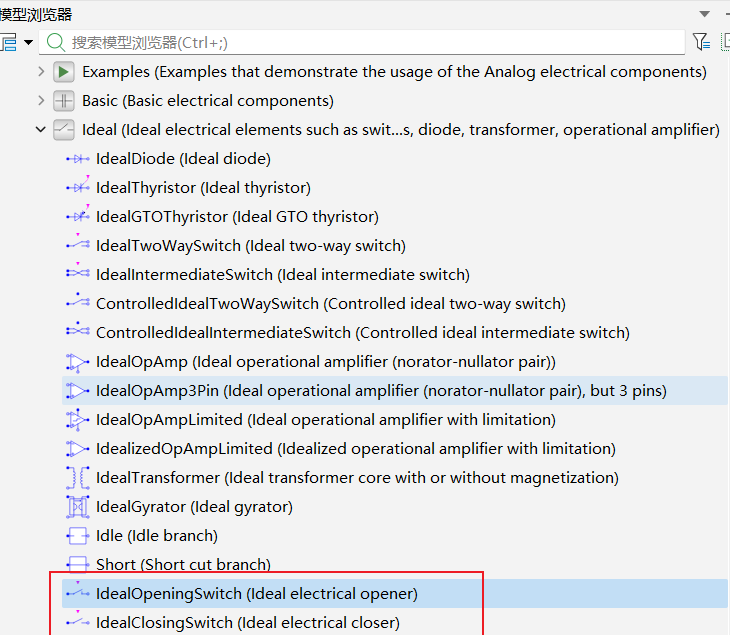

您好，此开关考虑动态过程，不是瞬开瞬关所以会有个微小的变化过程，如果想用不延迟的，可以先用标准库理想开关Modelica.Electrical.Analog.Ideal.IdealOpeningSwitch
