Sysplorer建模中的数据转换问题
一般问题
发布于 2024-11-29 09:03:54
查看 18过去577天
Sysblock中提供了类型转换的模块TypeConversion，可以对输入数据进行格式转换。请问，在Sysplorer中建模时，是否也具有类似功能的数据类型转换模块呢？（modelica搜索Conversion没有搜到）

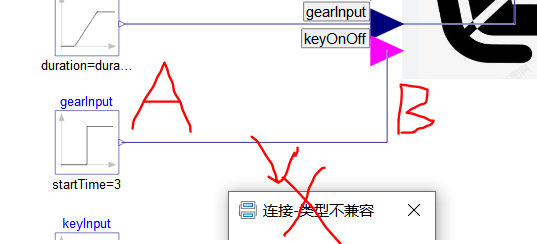

例如，下列例子中，A是step输出，B是Boolean类型输入，中间如何转换？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
