连接器类型不匹配一般问题
发布于 2024-12-04 10:14:45
查看 13过去707天
该从哪里找这种接口适配
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
连接器类型不匹配
全部回答 1
发布于 2024-12-04 10:20:47

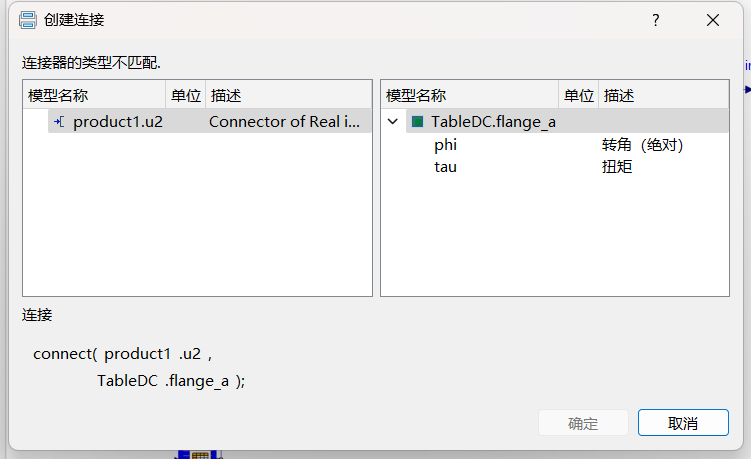

您好，两个接口类型，不一致，product1接口里面是实型接口u2，TableDC.flange_a包含了两个变量phi和tau，两个接口里面包含变量的数量以及类型均不一致，无法相连。
具体可查看官网培训教程Modelica语法-第4章连接与连接器
