三相异步电动机星三角降压启动控制线路装调
一般问题
发布于 2024-12-05 16:13:03
查看 20过去570天
请问可以做简单的 星三角降压启动的电机控制线路吗？没有找到断路器等元器件。
所属专栏：模型库
产品信息：科学计算与系统建模仿真平台MWORKS
请问可以做简单的 星三角降压启动的电机控制线路吗？没有找到断路器等元器件。
您好，您可以根据星三角相关原理进行建模，包括使用相关商业库和开发其他模型等方式。

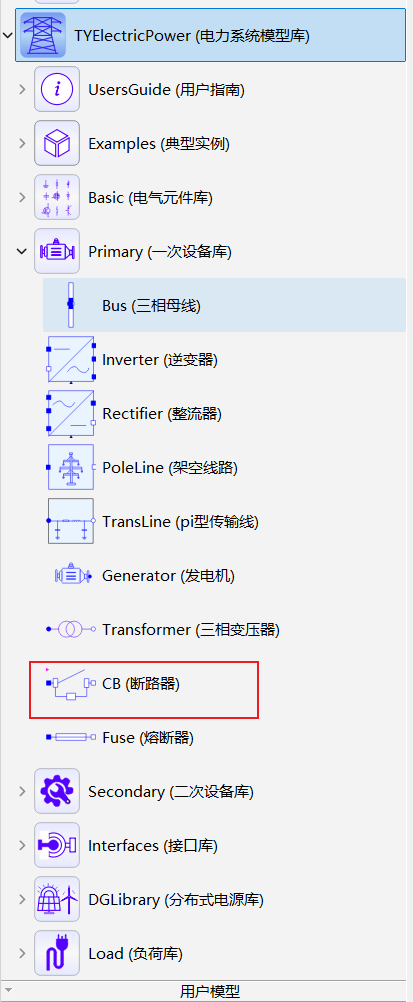

另外，电力系统模型库中提供了断路器组件，您可以直接使用。
好的 谢谢
