如何快速定位错误的组件？
一般问题
发布于 2024-12-05 18:25:48
查看 10过去570天

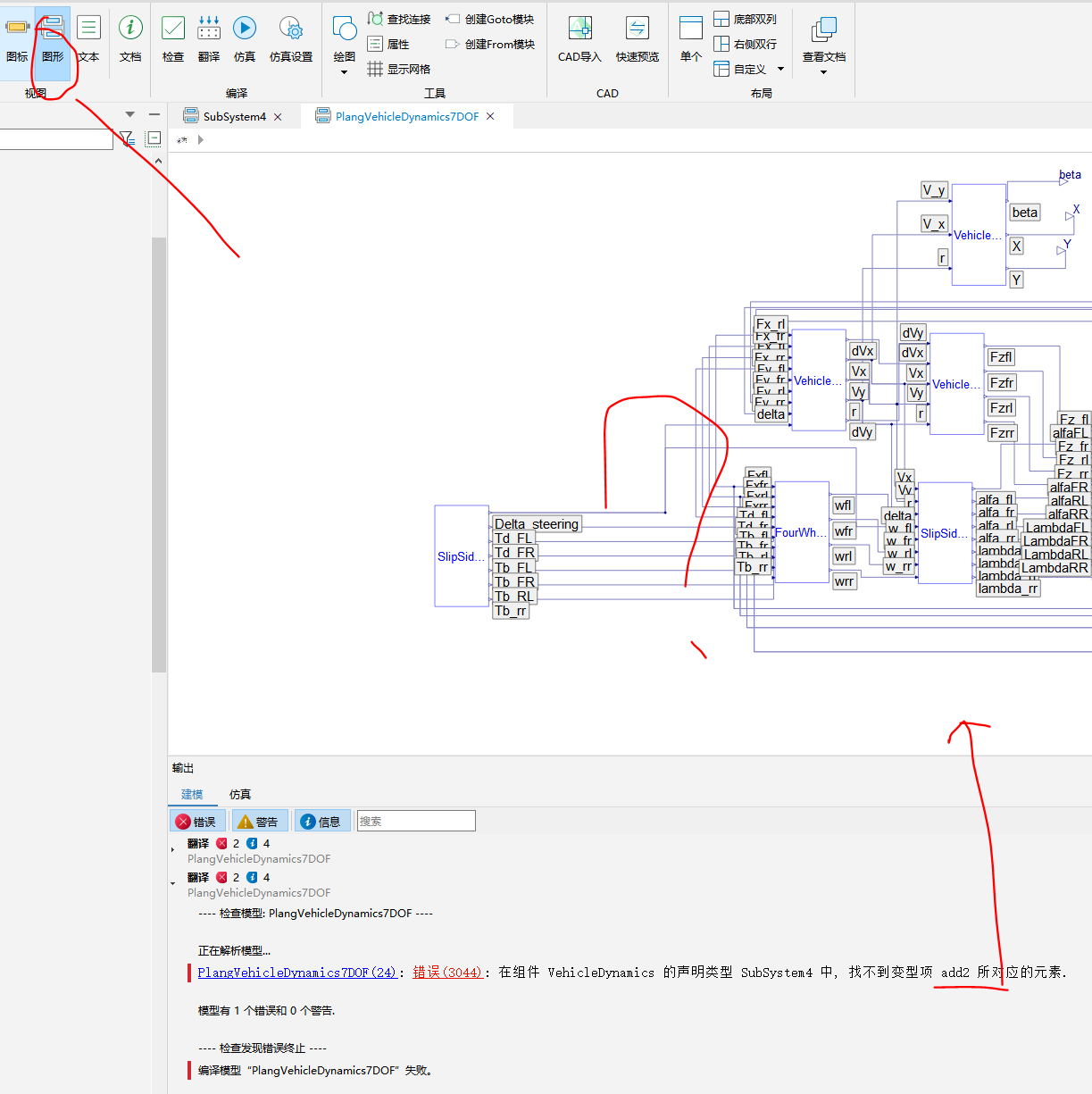

建立一个比较复杂的模型，包括若干子系统，翻译后出现错误，请问在图形视图下，如何快速定位到出错的这个组件？例如下图中add2?
Ctrl+F没反应。

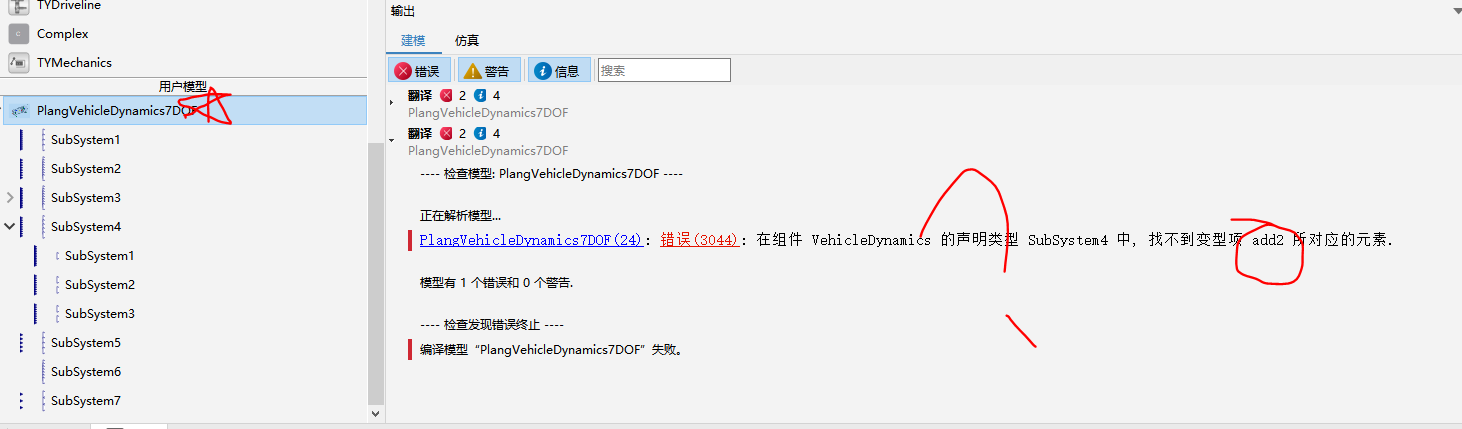

尝试在下图，右键选择搜索，输入上图中错误提示的组件add2？有快捷方式没？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
建立一个比较复杂的模型，包括若干子系统，翻译后出现错误，请问在图形视图下，如何快速定位到出错的这个组件？例如下图中add2?
Ctrl+F没反应。
尝试在下图，右键选择搜索，输入上图中错误提示的组件add2？有快捷方式没？

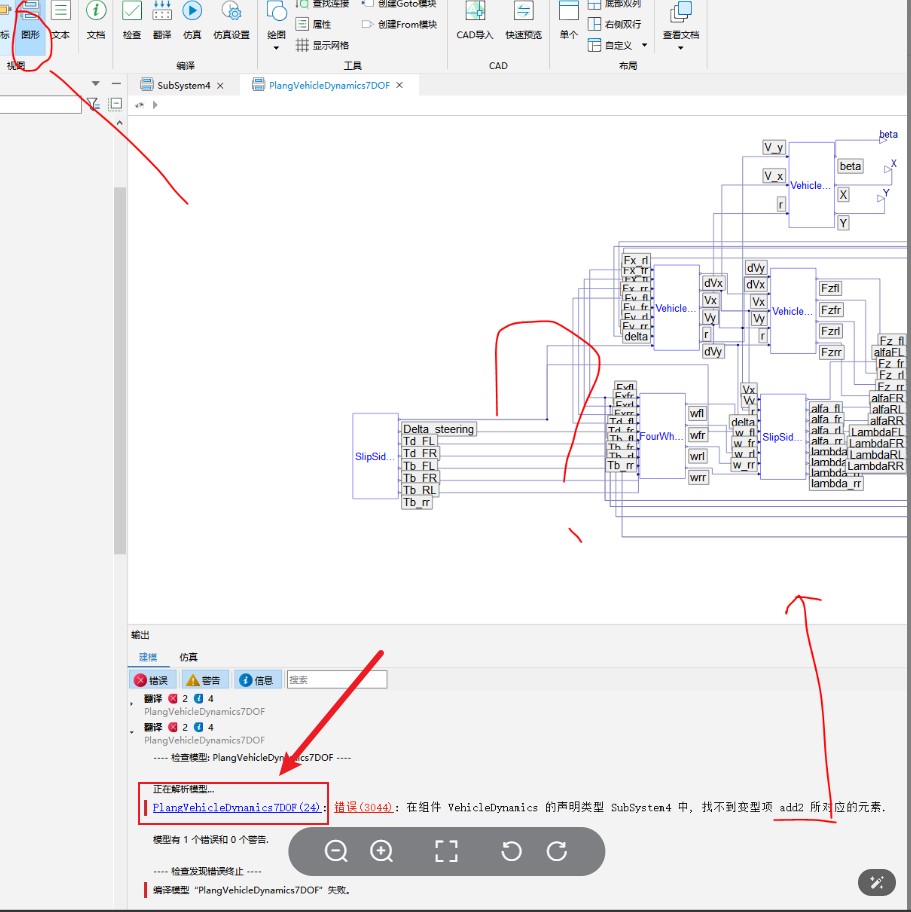

您好，可以通过鼠标点击报错信息蓝色显示部分的文字，快速跳转到报错位置：
