请问电机控制电路中常用的交流接触器和热继电器有模型吗？
一般问题
发布于 2024-12-05 20:21:30
查看 19过去570天
请问电机控制电路中常用的交流接触器和热继电器有模型吗？如果没有的话比较常用的替代模型是哪个呀？
所属专栏：模型库
产品信息：Sysplorer系统建模仿真环境
请问电机控制电路中常用的交流接触器和热继电器有模型吗？如果没有的话比较常用的替代模型是哪个呀？

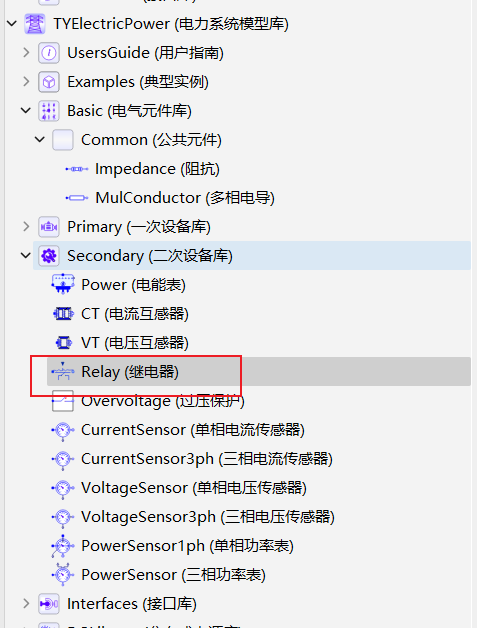

您好，非常抱歉，目前暂无交流接触器和热继电器模型，电力系统模型库中有通用继电器可以使用，接触器您可以根据具体原理使用Modelica语言开发
