如何实现类似Simulink里面的memory模块？
一般问题
发布于 2024-12-10 19:35:18
查看 11过去565天

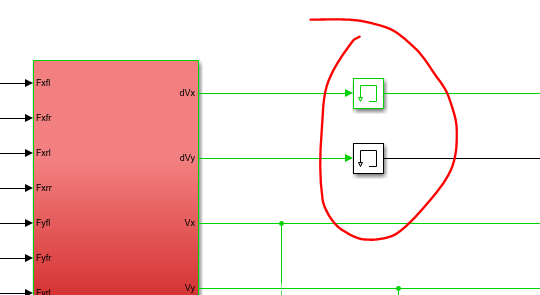

在使用simulink建模时，我们通常采用memory block来避免仿真时的代数环问题，请问在使用sysplorer建模时，是否有类似的memory模块? 如下图。

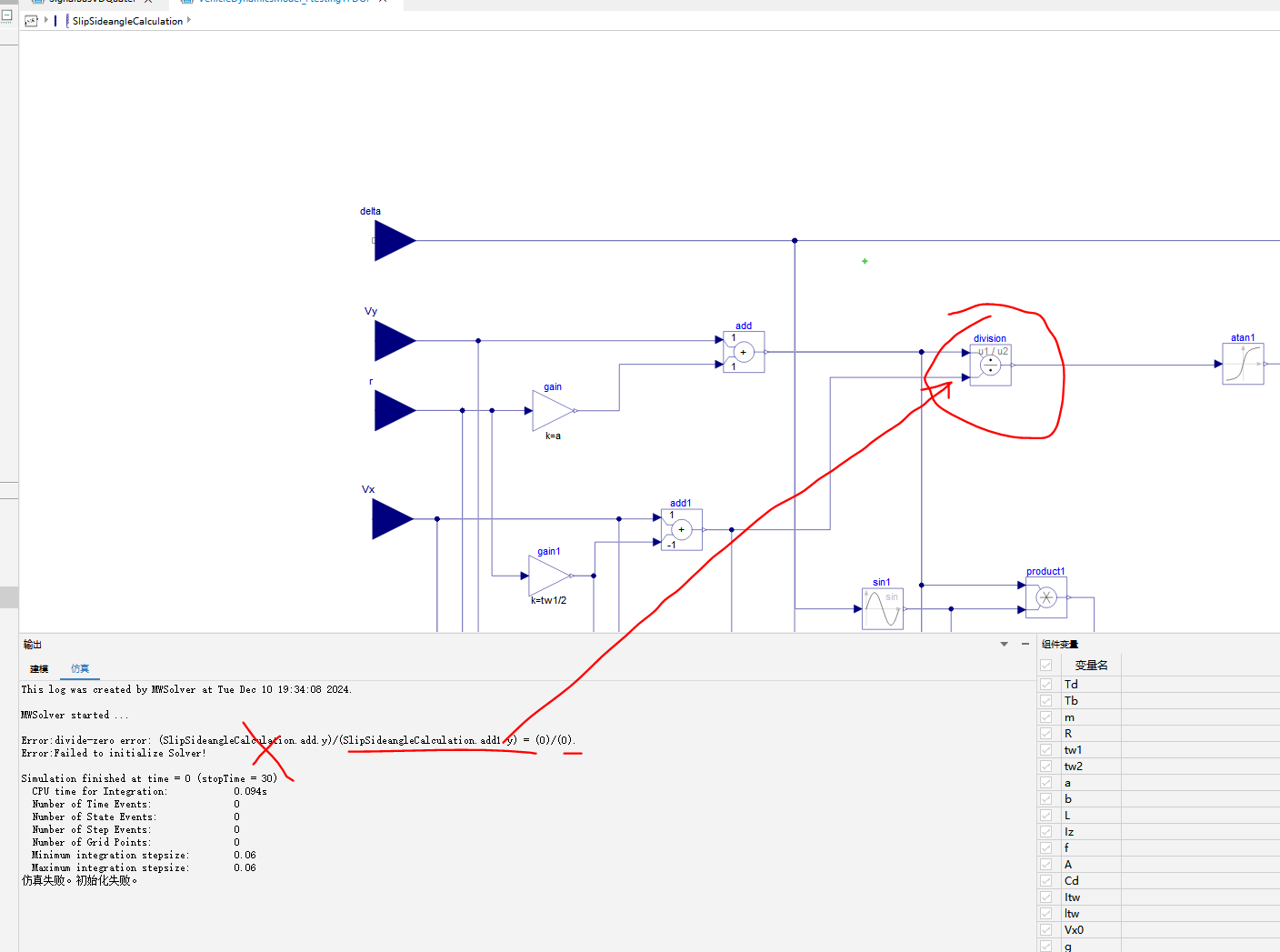

因为，我在建立的sysplorer模型中，没有采用memory,仿真时出现了初始阶段，某些模块分母为0的错误。
如下图：
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
