Implementation of the Simulink Model in Sysplorer
一般问题
发布于 2024-12-12 12:11:35
查看 11过去563天
Hi Sir,

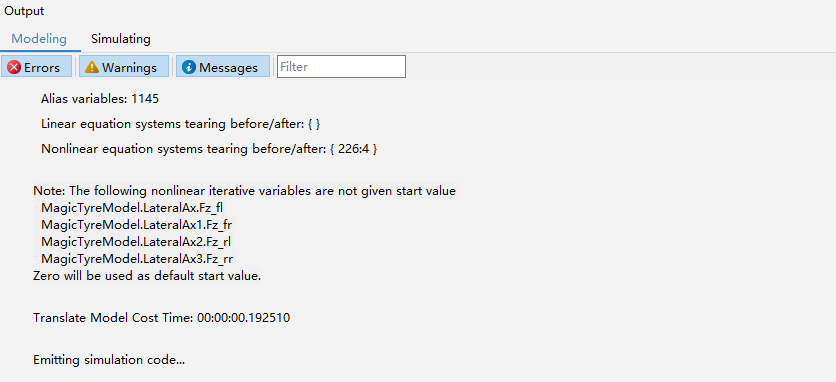

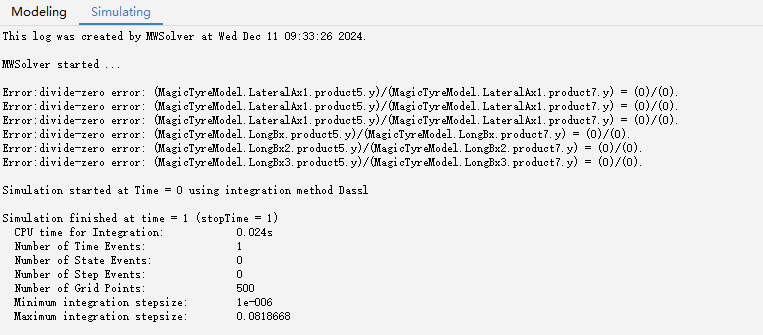

I have been facing this issue for a long time, is the memory block shortcomings in the model or something else, even if I have added the small constant values it still shows the zero division problem as shown in the figures.
How can I solve the problem of initialization
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
