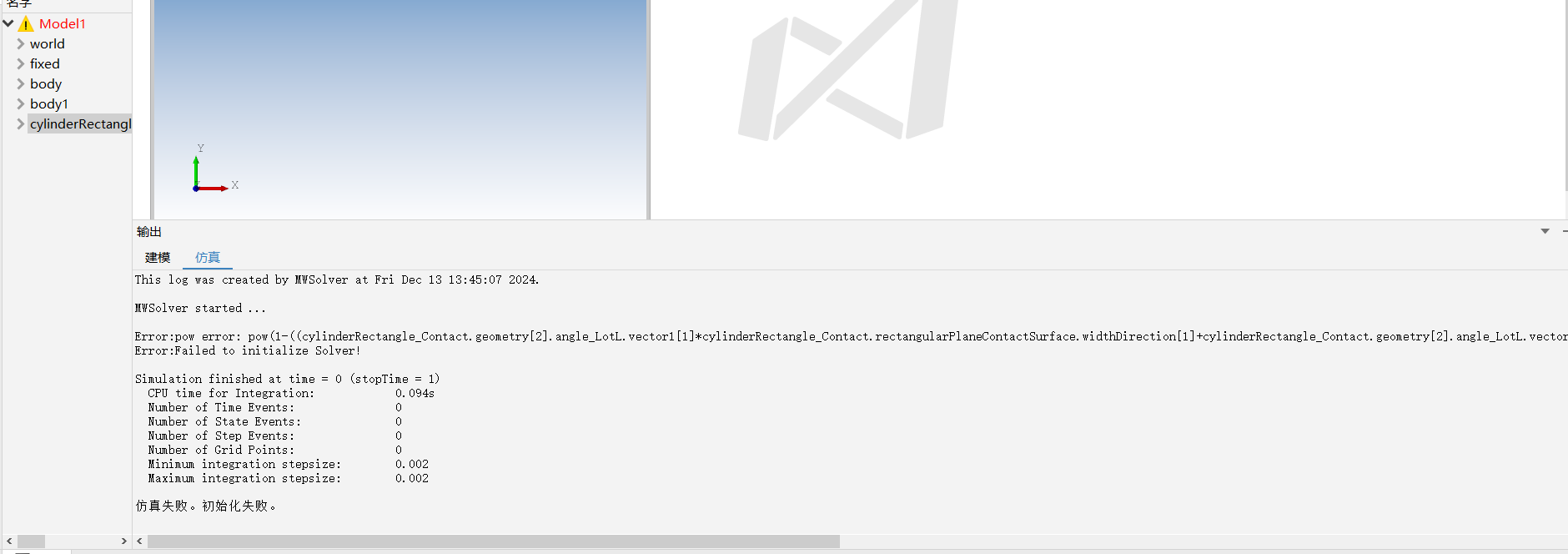

求教：sysplorer中圆柱与矩形平面接触模型怎么使用？一直仿真失败
一般问题
发布于 2024-12-13 13:49:20
查看 25过去562天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(2kb)
1 个附件(2kb) 您好，这个矩形平面接触力中有个exact参数，他与模型是否连续以及内核求解机制有关，建议取消勾选。
对于矩形平面接触，下个版本将会上线一些简单demo示例，用户可以参考修改，敬请期待。

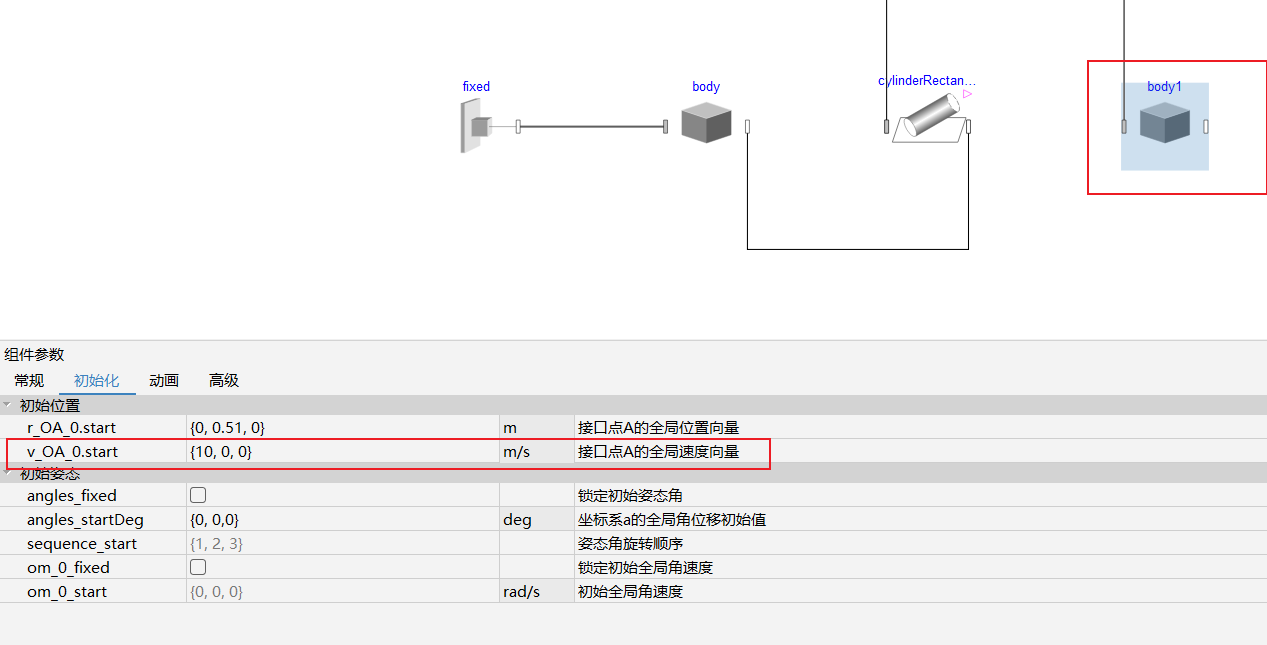

您好，如果想要实现滚动效果，需要给定body1，速度可参考下图参数设置：
