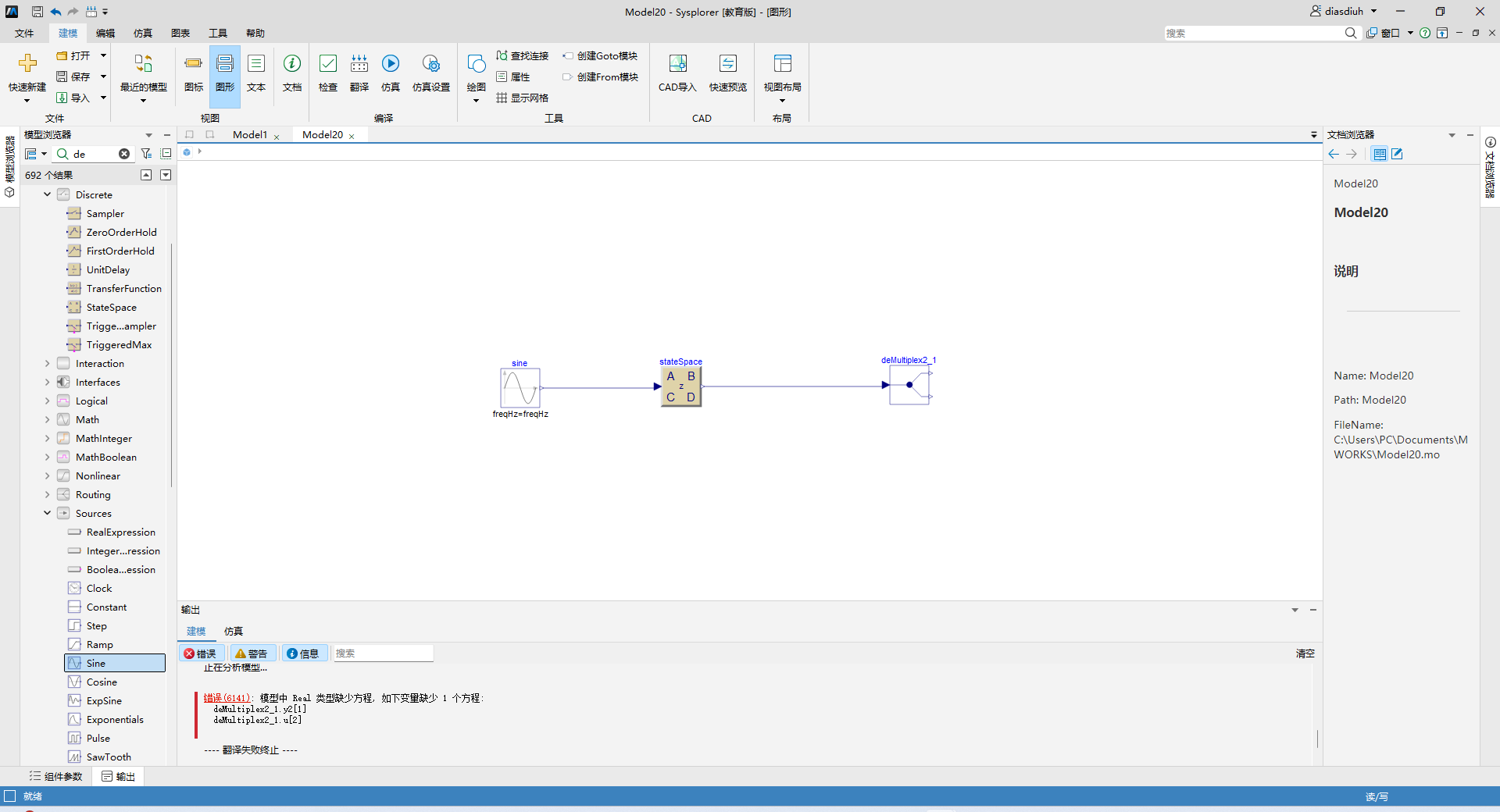

statespace与demultiplex连接后运行错误一般问题diasdiuh发布于 2024-12-16 15:43:10查看 20过去559天 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模其他 写回答 关注问题 点赞 0 踩 0 收藏 0

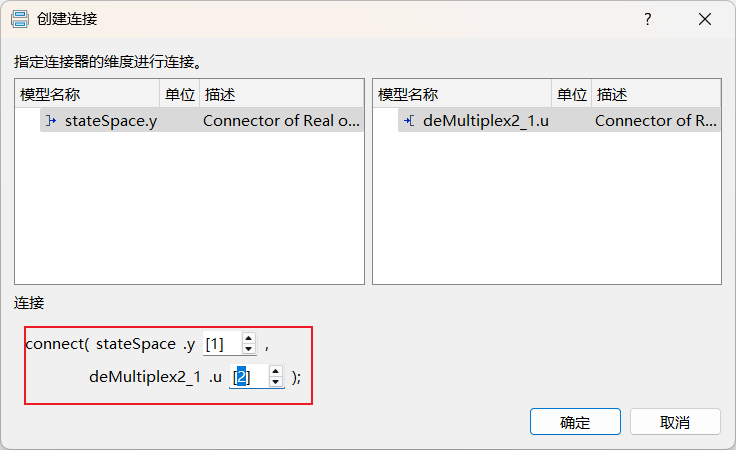

MoHub发布于 2024-12-16 16:00:21您好，deMultiplex2_1组件至少需要输入两个信号源，当前模型中缺少u[2]的输入，所以显示缺少方程； 可以再连接一个一个输入，修改deMultiplex2_1的输入接口维度为2即可。 0 0回复 查看更多
