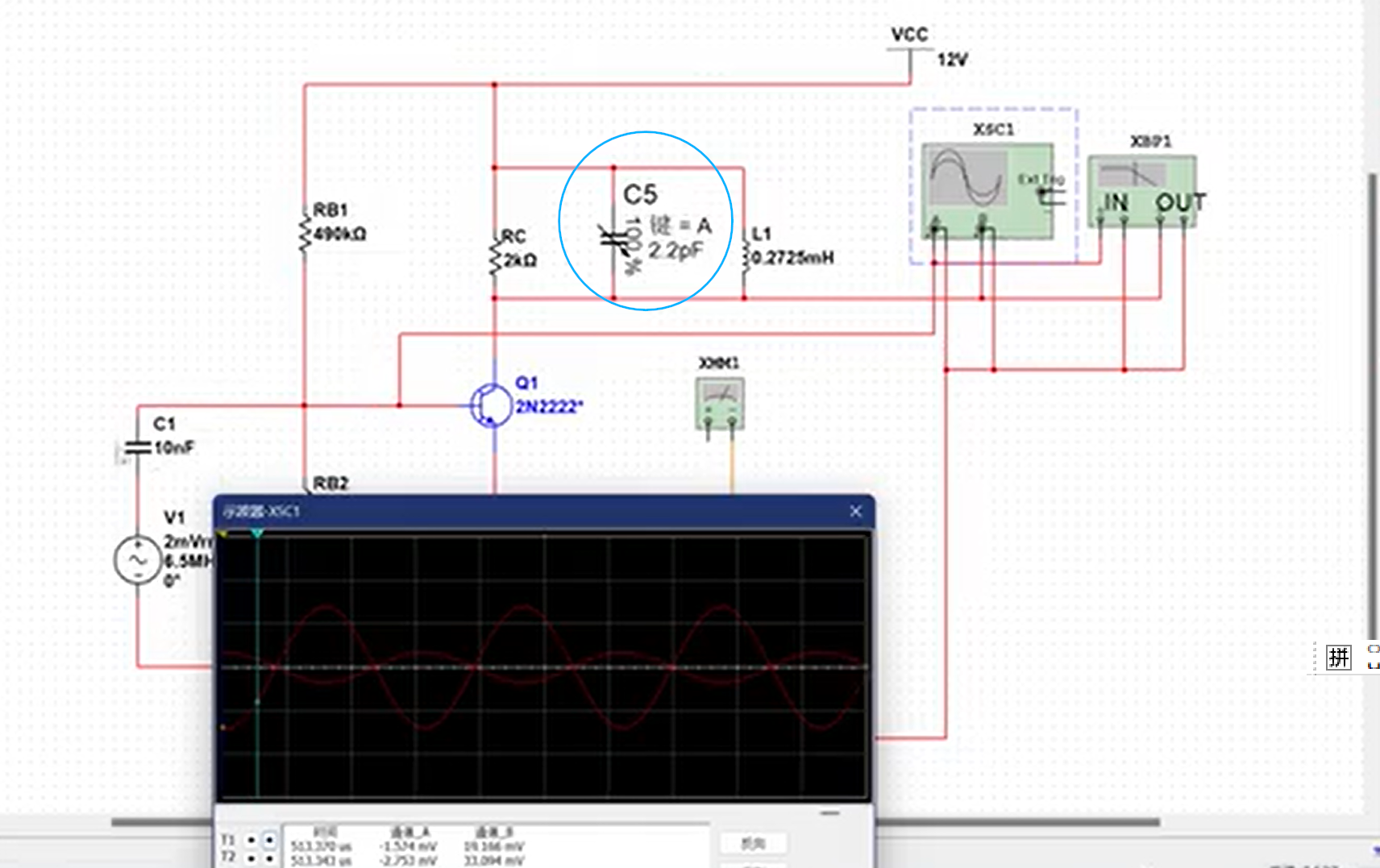

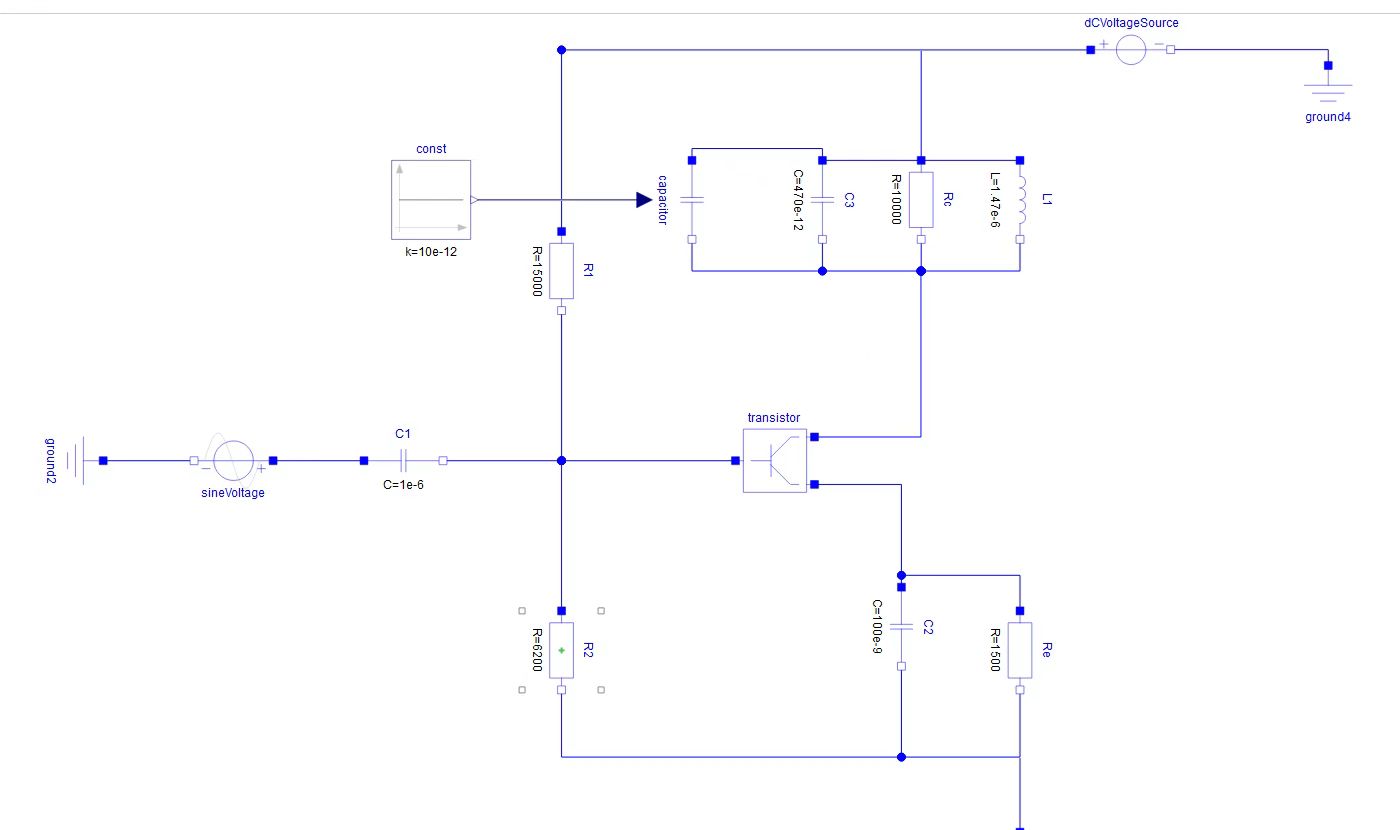

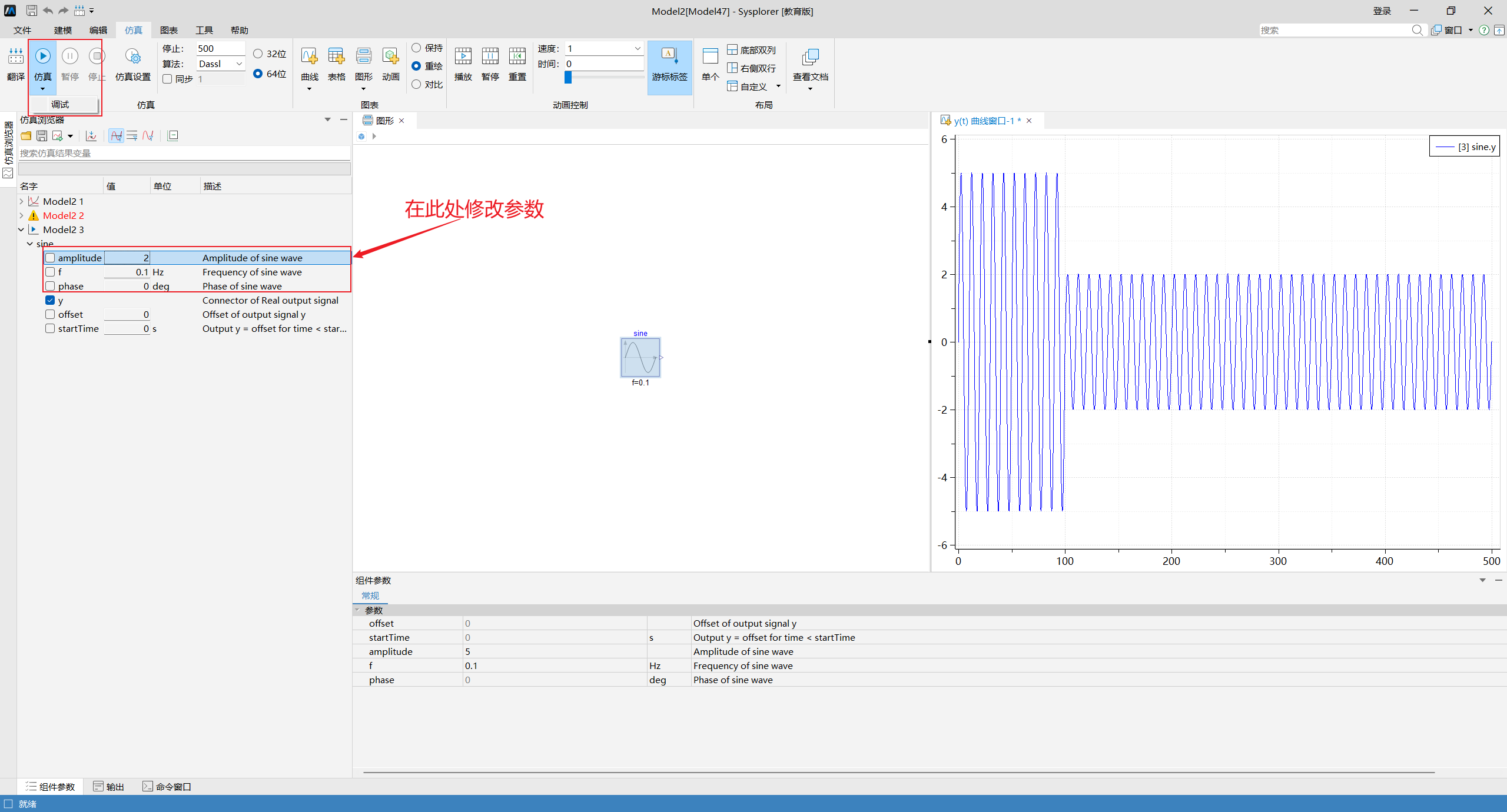

怎么边调节电容大小，边观测输出波形一般问题zhangxianghua09发布于 2024-12-18 12:45:04查看 14过去558天 没有示波器模块的话，请问怎么做到像multisim一样边调节如图所示电容，边观测输出波形，当电压幅度最大时不再调节。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境通信系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
