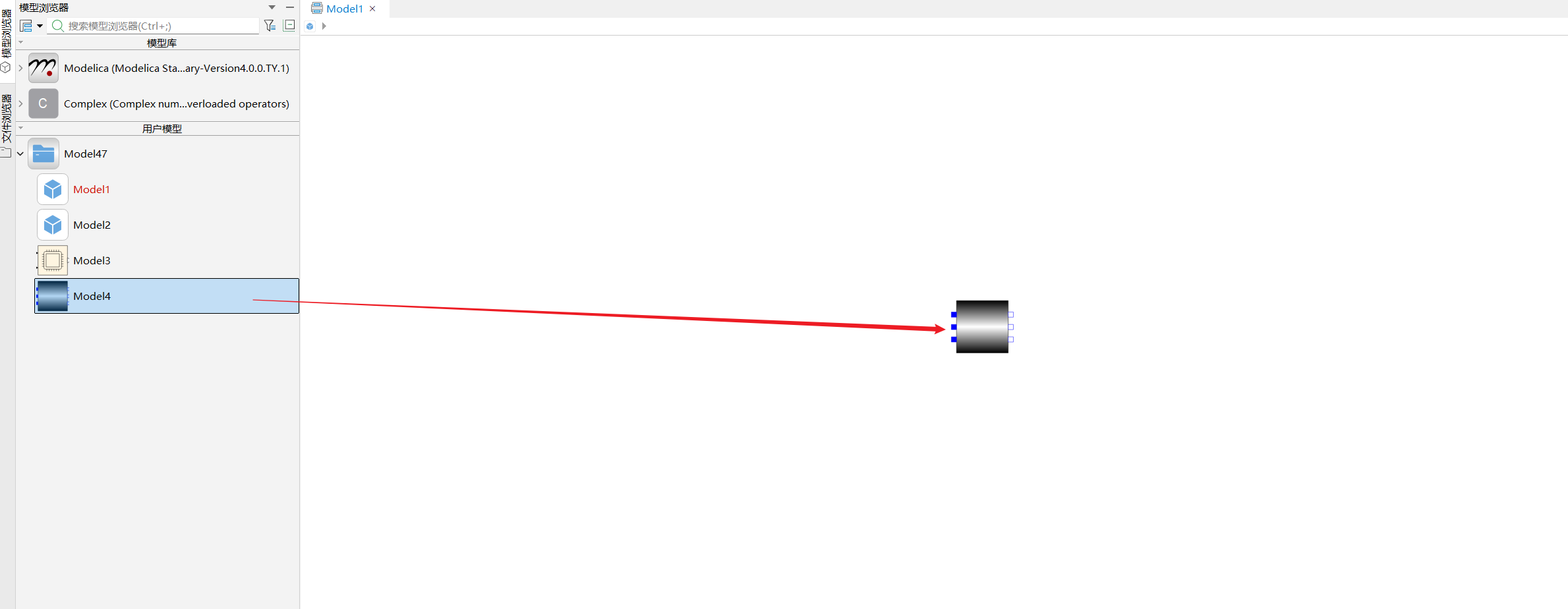

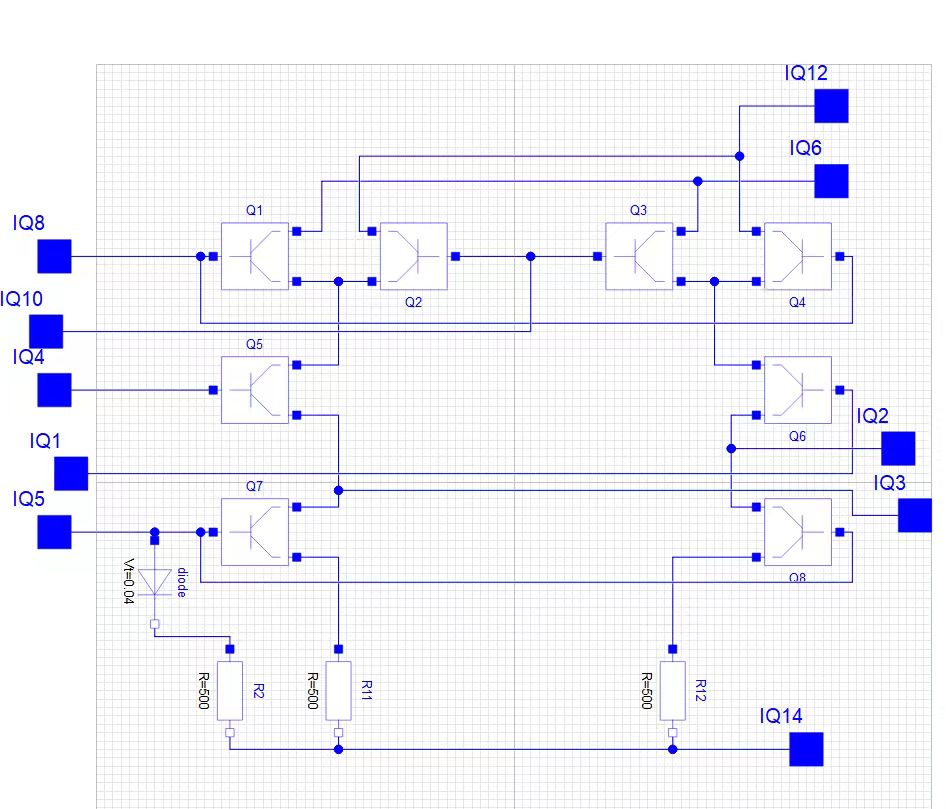

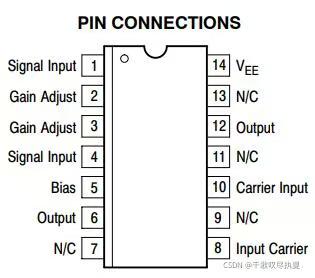

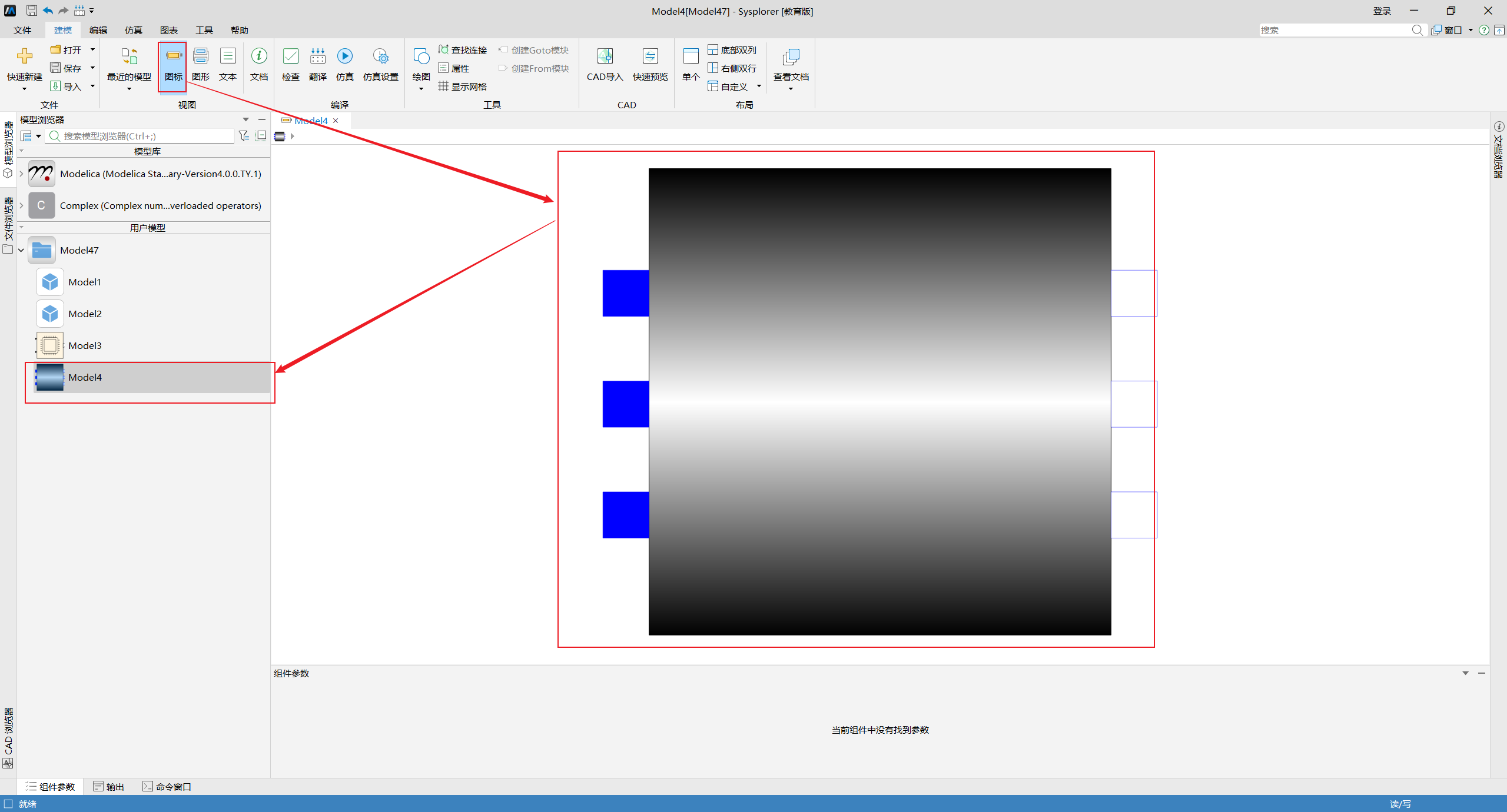

芯片封装一般问题zhangxianghua09发布于 2024-12-18 13:39:32查看 19过去557天 请问怎么对自己画的模块进行封装，只留下引脚，如下图所示 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境通信系统建模科学计算控制工程 写回答 关注问题 点赞 0 踩 0 收藏 0
