sysblock与sysplorer连接
一般问题
发布于 2024-12-18 16:13:30
查看 23过去557天
这个连接要怎么改
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 3
发布于 2024-12-18 16:28:08
您好，混合建模仿真请参考本贴Sysplorer与Syslab混合建模时出现连接器类型不兼容怎么办。
发布于 2024-12-23 18:40:24

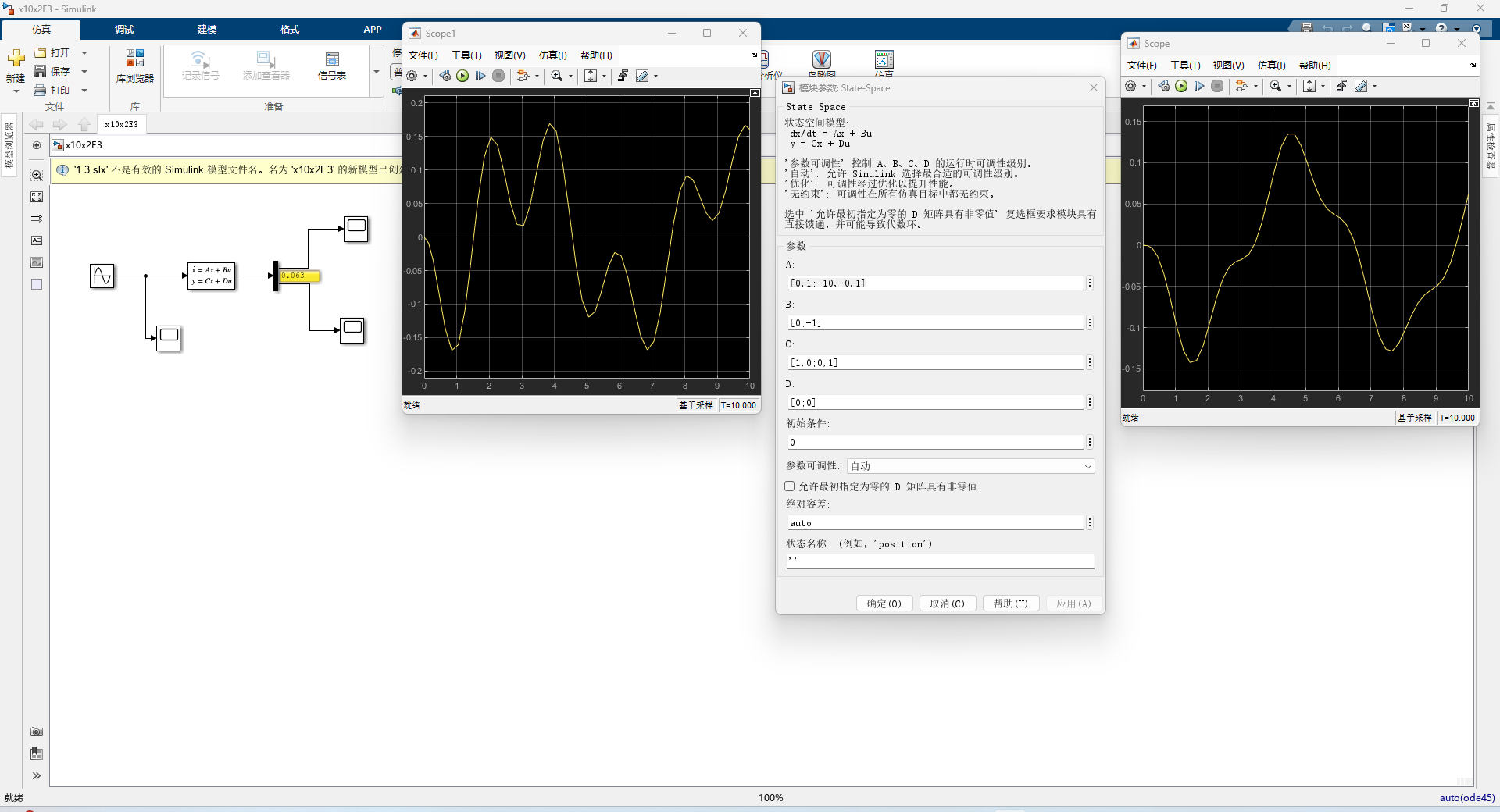

sin是默认值
发布于 2024-12-23 18:59:00

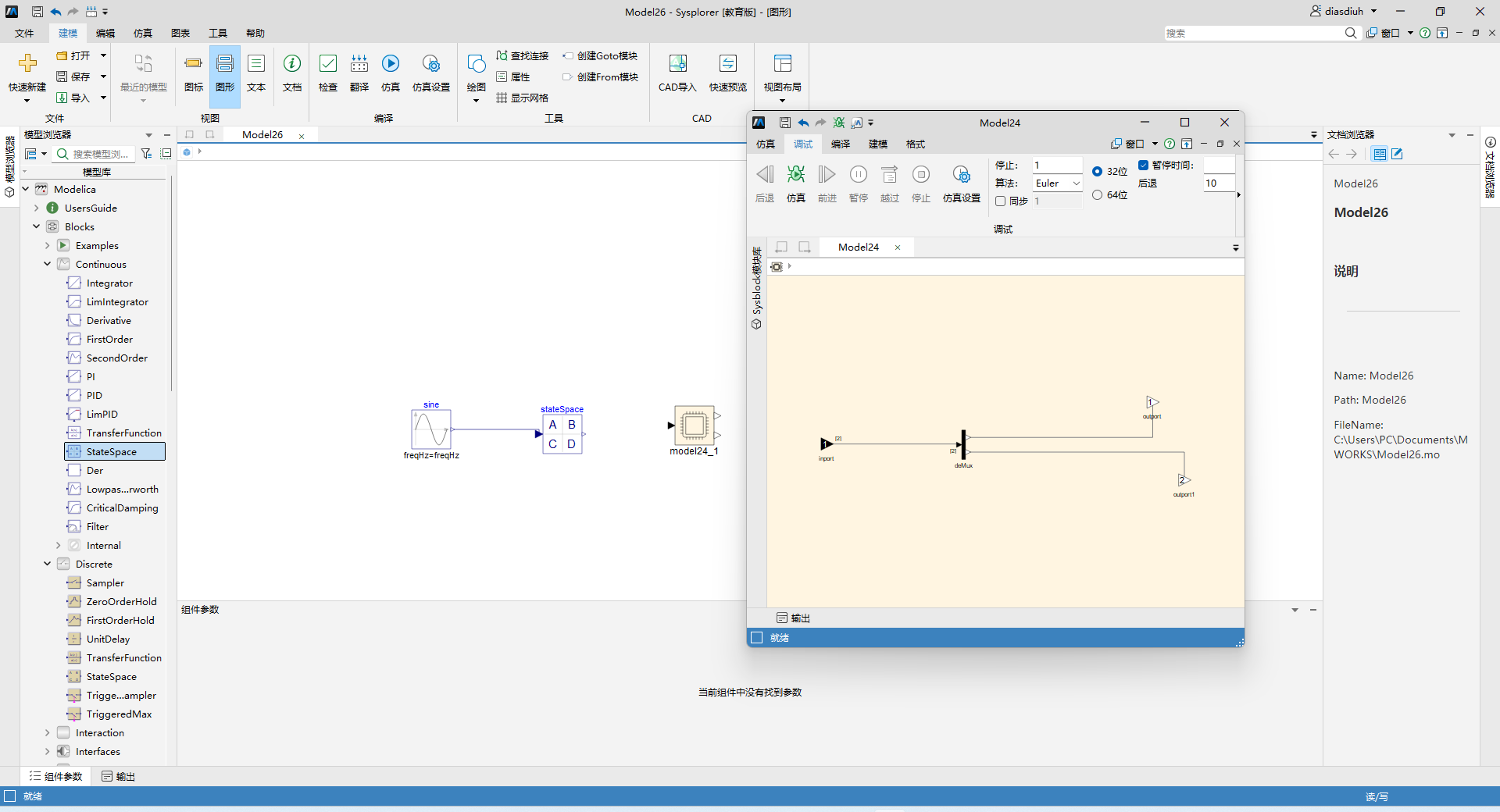

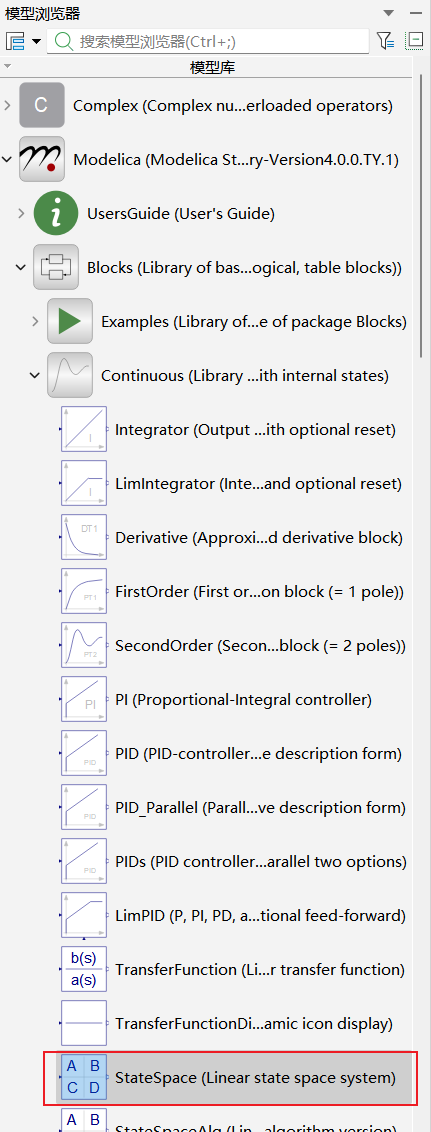

您好，可以使用Modelica.Blocks.Continuous.StateSpace组件搭建状态空间，模型及路径如下

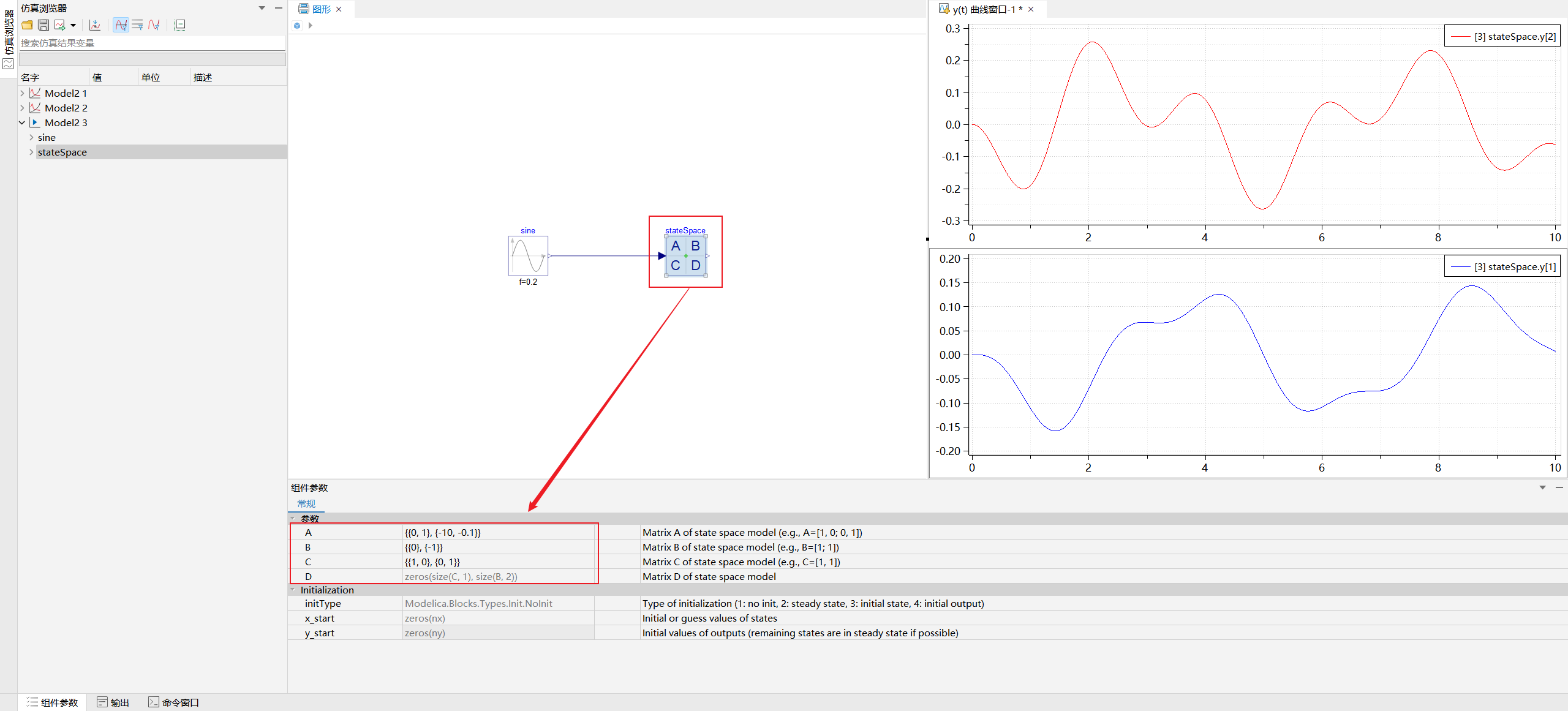

可设置正弦函数的参数与您的matlab模型一致，观察状态空间的输出。
