ModalBody如何导入mnf文件一般问题
发布于 2024-12-30 21:24:12
查看 14过去590天
TYFlexBody柔性体模型库如何导入.mnf格式文件。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(117714kb) 专栏
标签
高校专区
ModalBody如何导入mnf文件
1 个附件(117714kb) 全部回答 1
发布于 2024-12-31 15:54:33

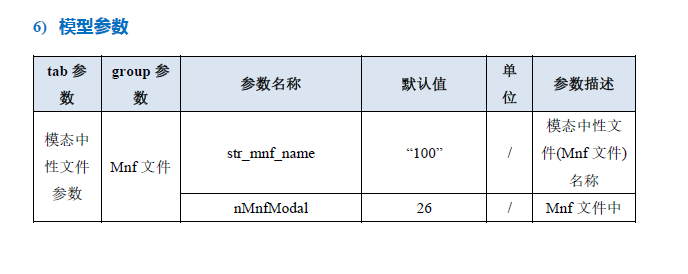

您好，mnf组件可以通过参数设置访问本地文件路径进行关联：

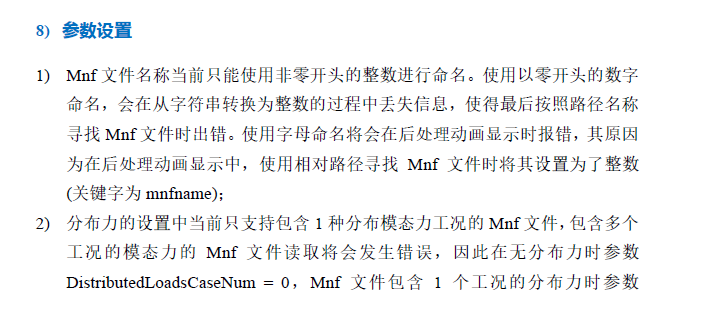

对于mnf文件参数的设置有相关的注意事项：
具体您可以查阅柔性体库使用手册：柔性体库产品用户手册
