sysblock
一般问题
发布于 2025-01-06 18:02:56
查看 11过去538天
建立一个基于sysblock的模型，如果设置一些模型内部的参数，例如在sysplorer中调用该sysblock模型，然后双击该模型修改某些内部参数。这些内部参数可以供sysblock内部的模型了使用呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
建立一个基于sysblock的模型，如果设置一些模型内部的参数，例如在sysplorer中调用该sysblock模型，然后双击该模型修改某些内部参数。这些内部参数可以供sysblock内部的模型了使用呢？

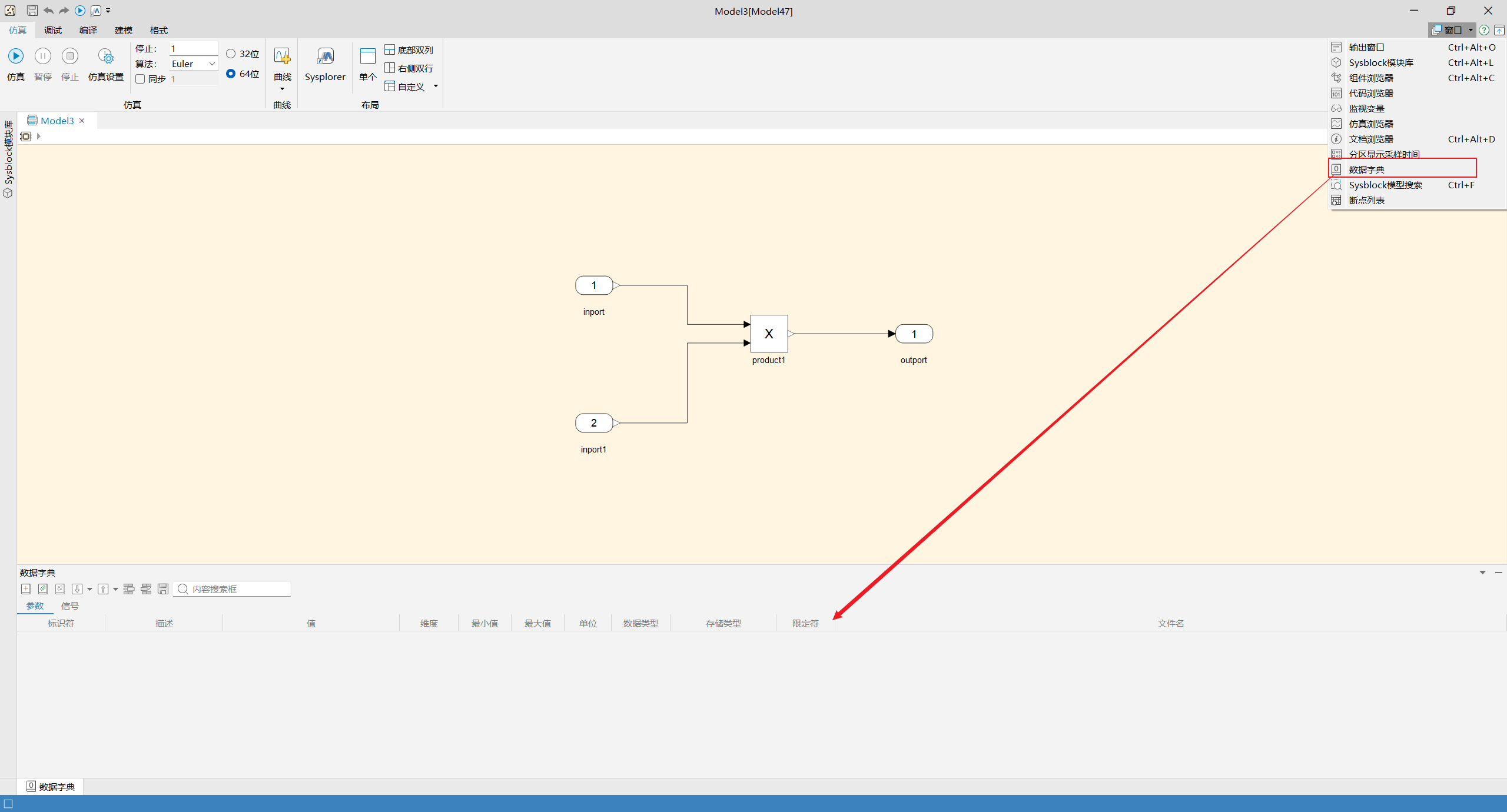

您好，可以使用数据字典定义相关参数与变量，定义后，双击打开Sysblock模型，可在数据字典面板中修改相关参数值。
具体可参考用户手册数据字典
