BUCK占空比
一般问题
发布于 2025-01-07 16:28:25
查看 28过去537天

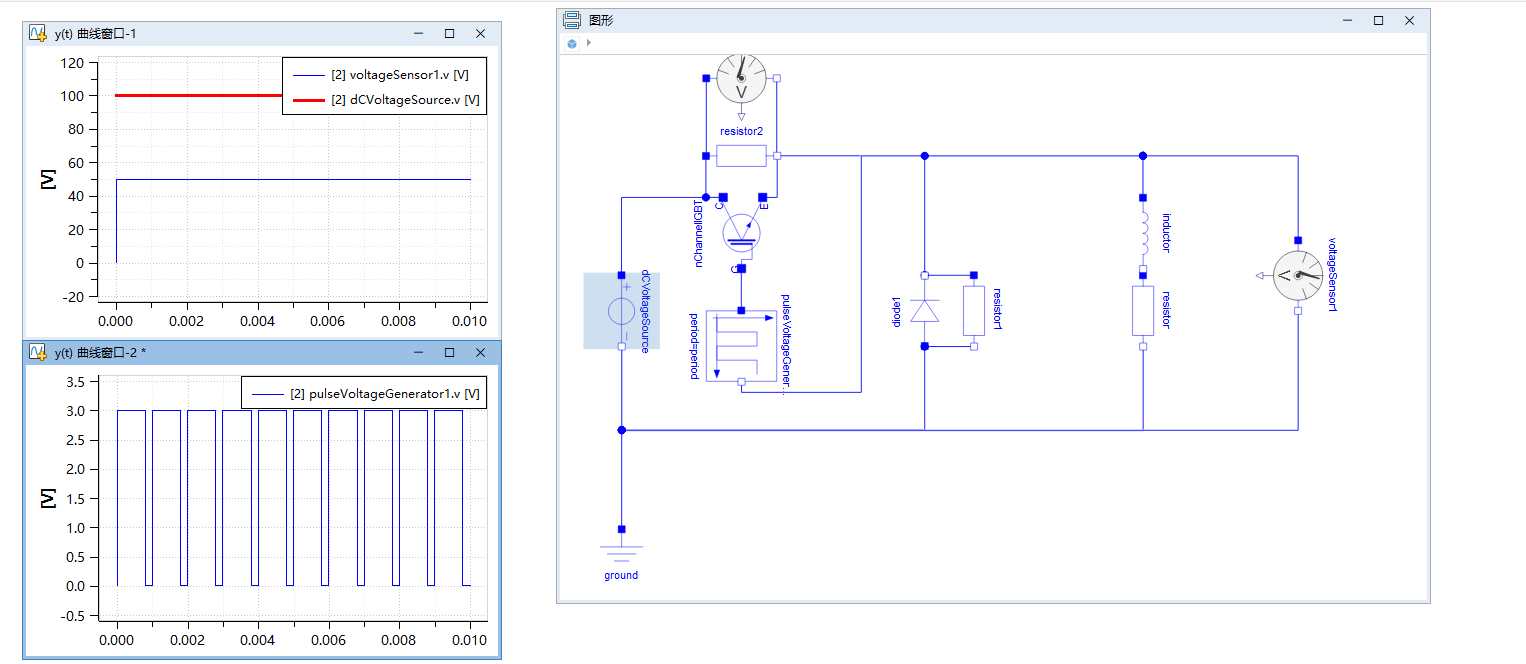

改变脉冲占空比不能改变降压输出，还有就是怎么调节输出电压变成斩波的形式
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(5kb) 专栏
标签
高校专区
1 个附件(5kb) 采纳的回答
发布于 2025-01-07 20:20:36

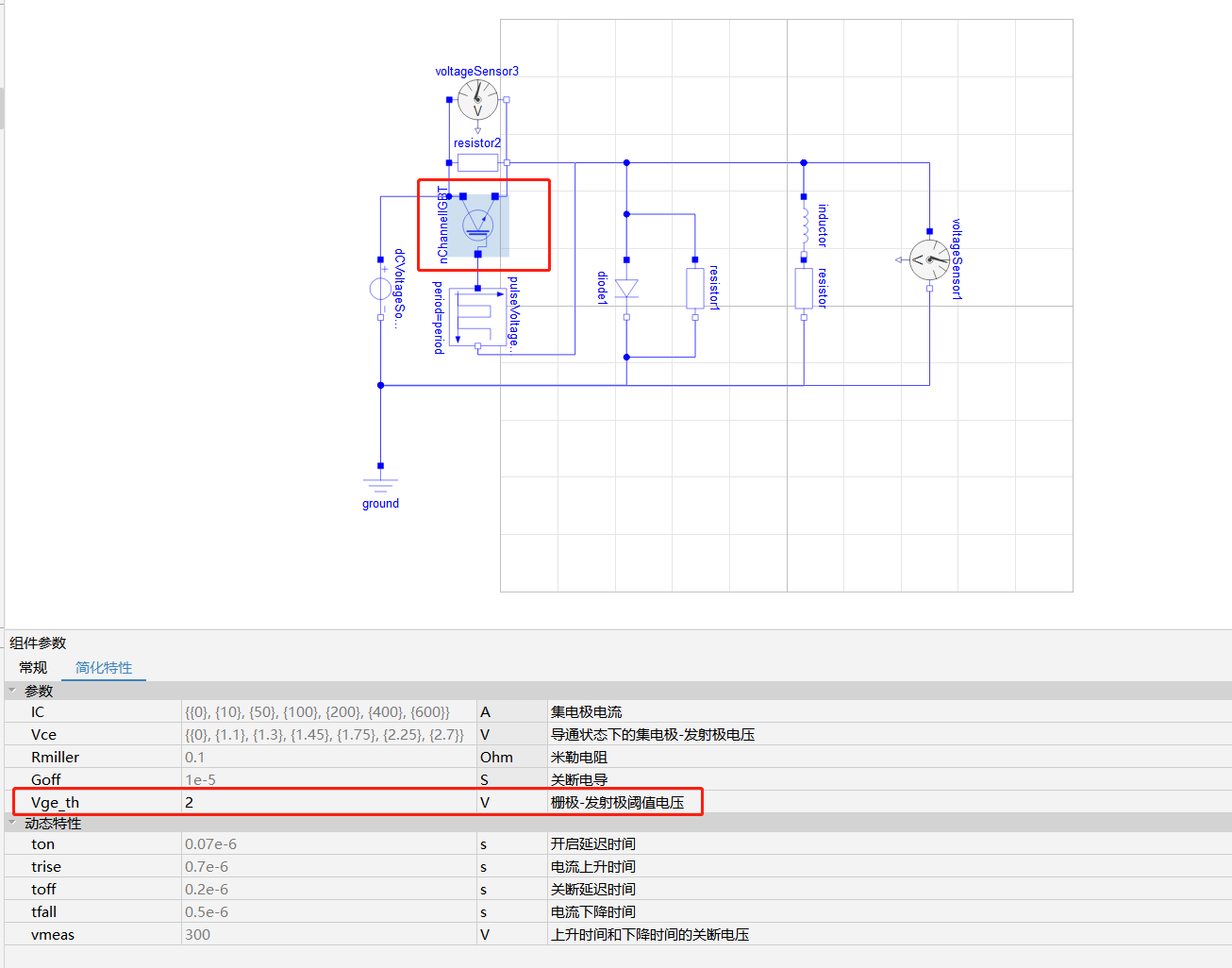

您好，图中参数值小于脉冲幅值时即可改变降压输出。

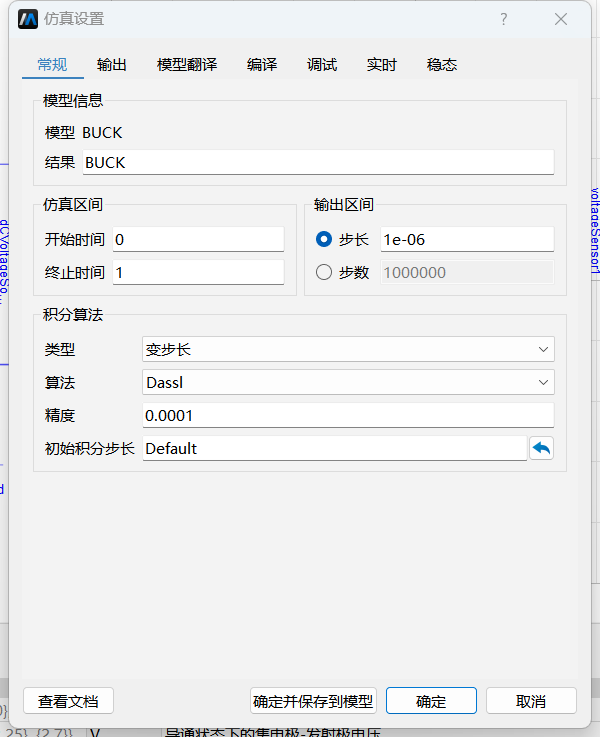

另外，如要实现斩波的话要把仿真的步长调的比频率小，如下图

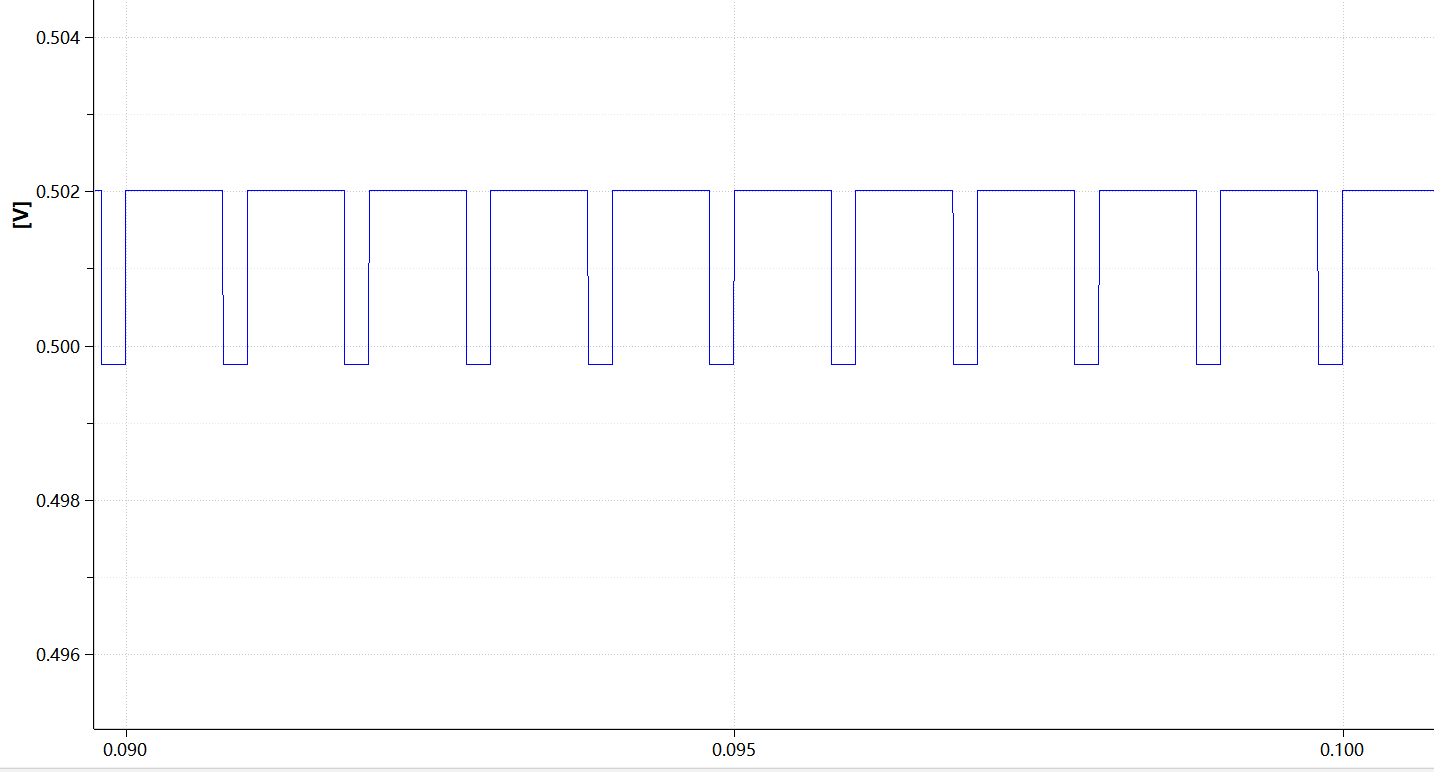

此时仿真结果为
全部回答 2
发布于 2025-01-07 16:43:49
您好，烦请您上传模型，我们结合模型定位问题。
发布于 2025-01-07 20:20:36
您好，图中参数值小于脉冲幅值时即可改变降压输出。
另外，如要实现斩波的话要把仿真的步长调的比频率小，如下图
此时仿真结果为
