单相桥式整流
一般问题
发布于 2025-01-08 21:46:11
查看 27过去536天

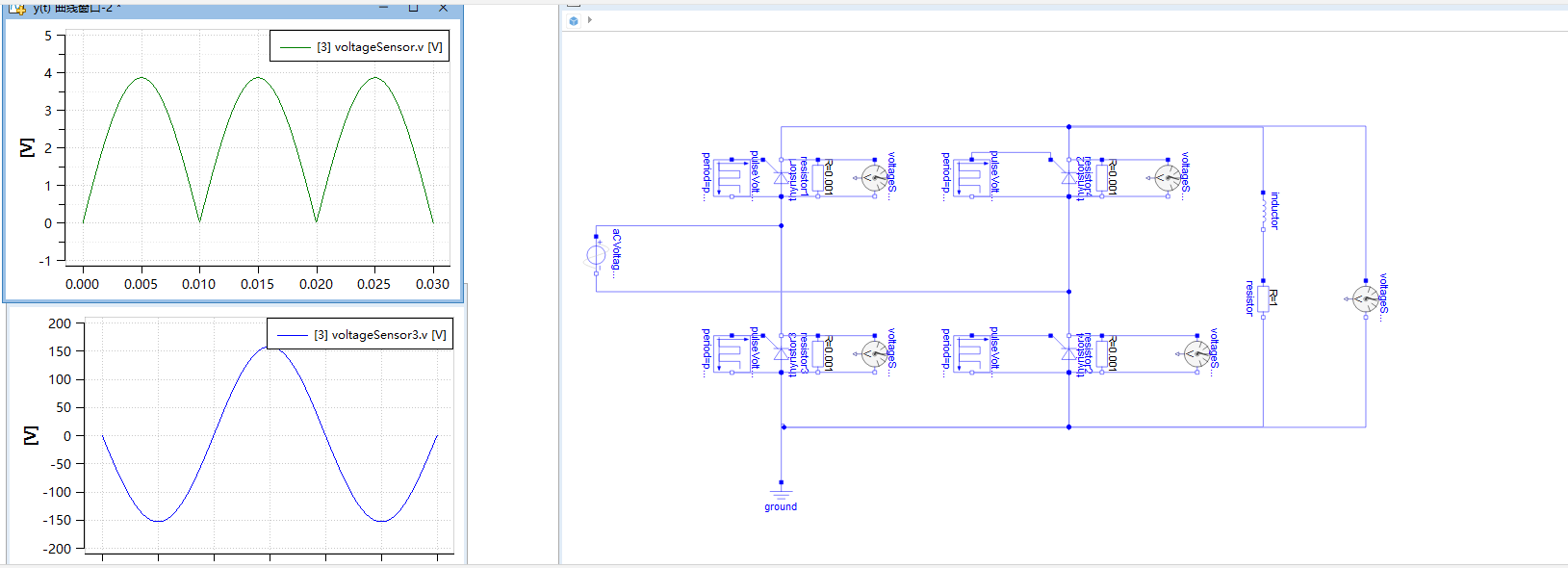

晶闸管作为整流桥开关器件，导通角度设置30°，整流后输出电压幅值不对，请问是晶闸管的参数设置问题吗，设置的正向导通电压和反向截止电压不正确？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(10kb) 专栏
标签
高校专区
1 个附件(10kb) 采纳的回答
发布于 2025-01-09 10:45:02

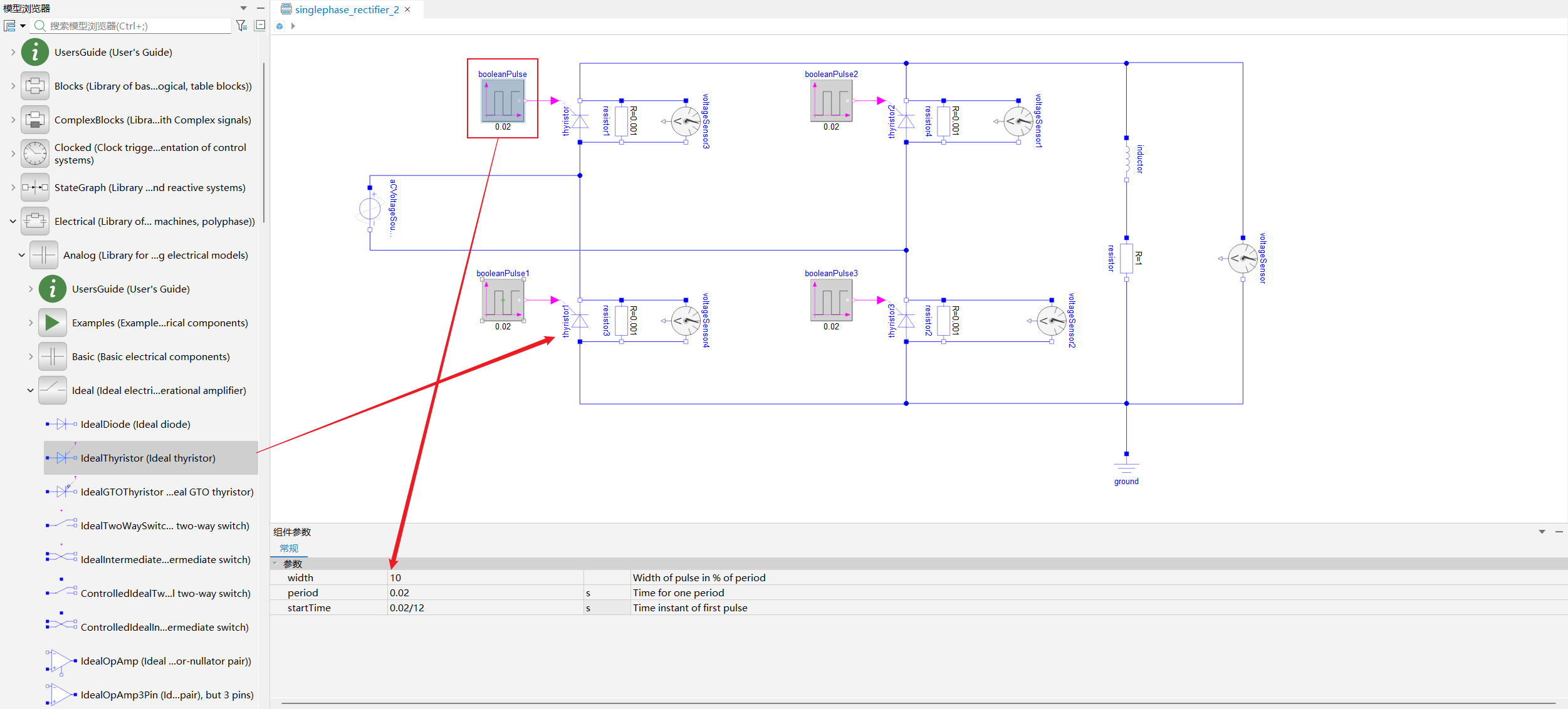

您好，请切换晶闸管组件，如下图，并且结合组件Modelica.Blocks.Sources.BooleanPulse进行建模即可，模型及参数如下图所示。
全部回答 1
发布于 2025-01-09 10:45:02
您好，请切换晶闸管组件，如下图，并且结合组件Modelica.Blocks.Sources.BooleanPulse进行建模即可，模型及参数如下图所示。
