sysblock中没有状态空间statespace
一般问题
发布于 2025-01-11 17:39:23
查看 14过去533天
怎么在sysblock中使用状态空间
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(27kb) 怎么在sysblock中使用状态空间

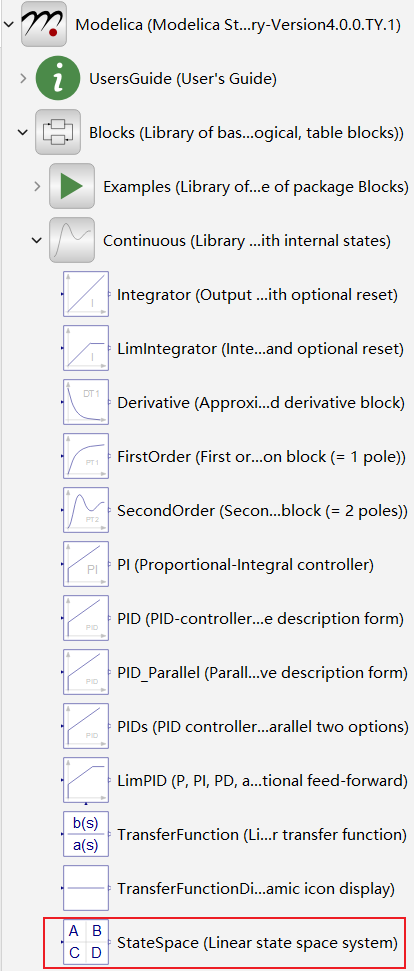

1 个附件(27kb) 您好，sysblock中暂未集成状态空间模型，您可以使用block中的statespace组件，相关需求已经作为工单提交给研发部门，后续将持续追踪单据状态。
您好，Sysplorer 2025a已经提供了状态空间模型，您可以下载使用。
