三相整流电路
一般问题
发布于 2025-01-18 14:07:09
查看 34过去526天

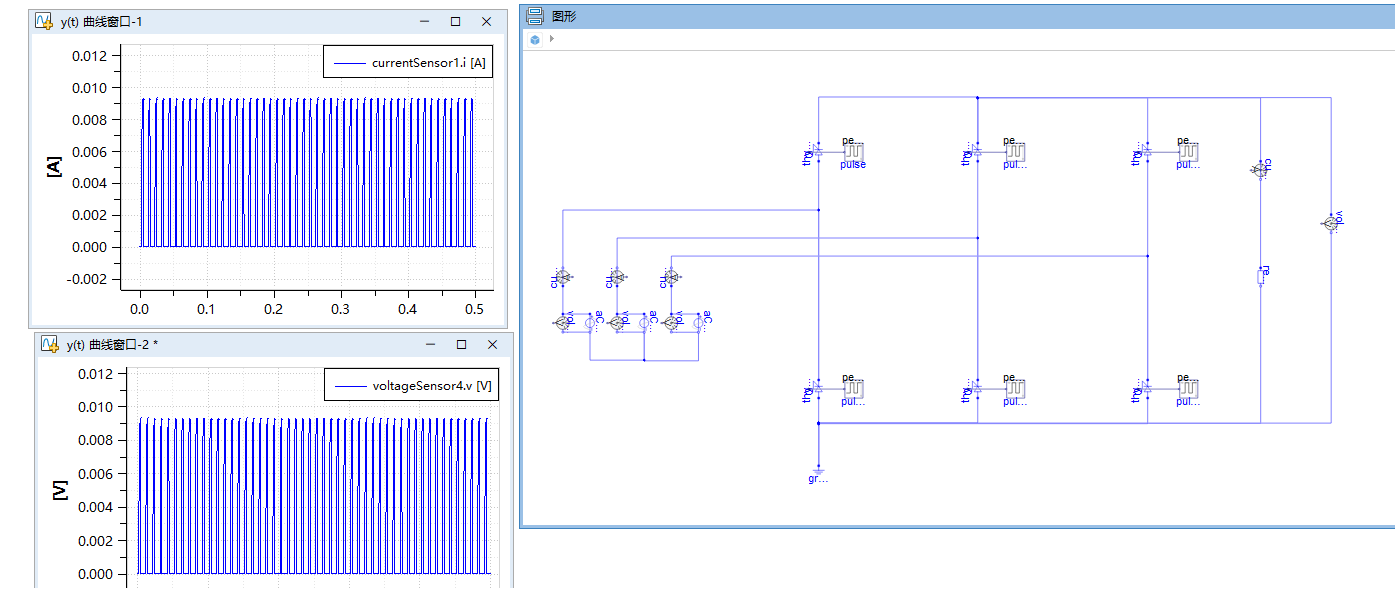

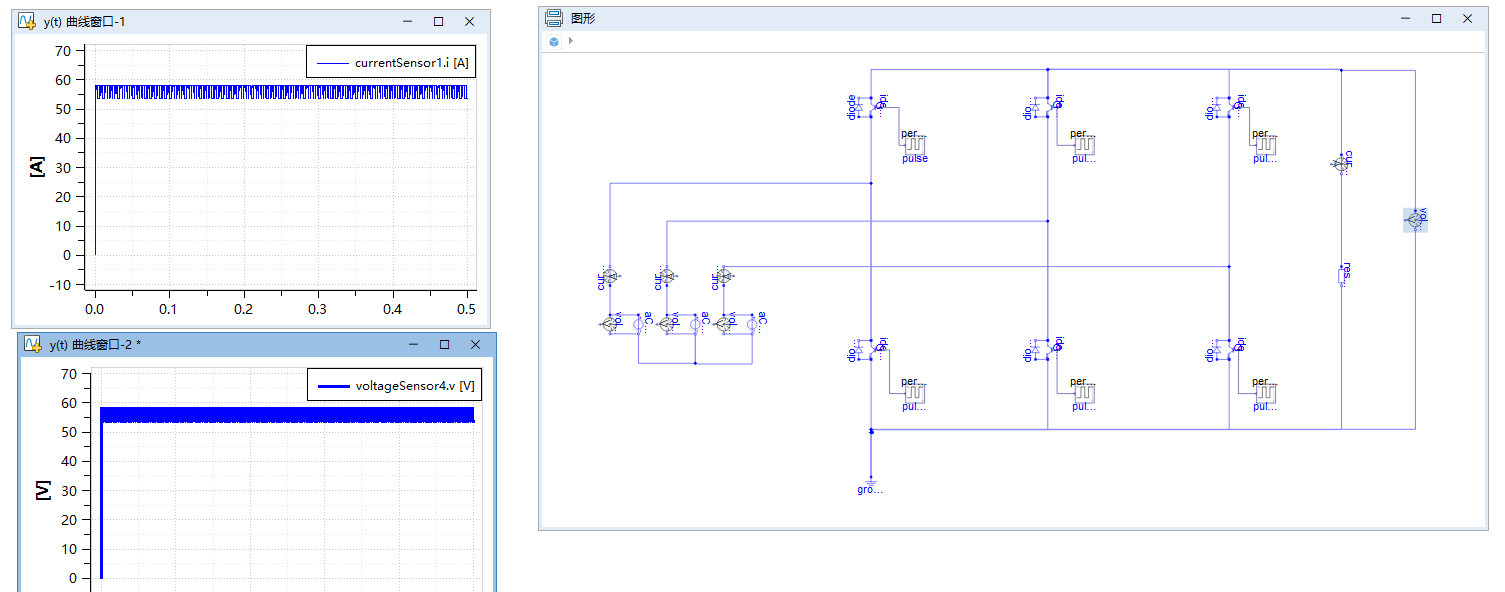

1.相同的参数，只改变开关管类型导致输出结果不同

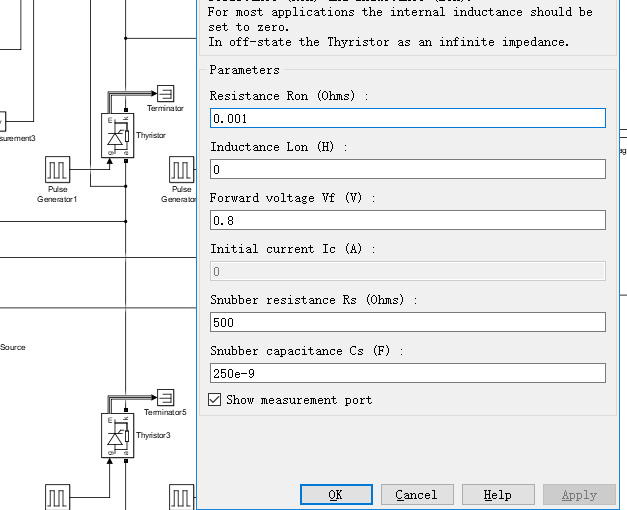

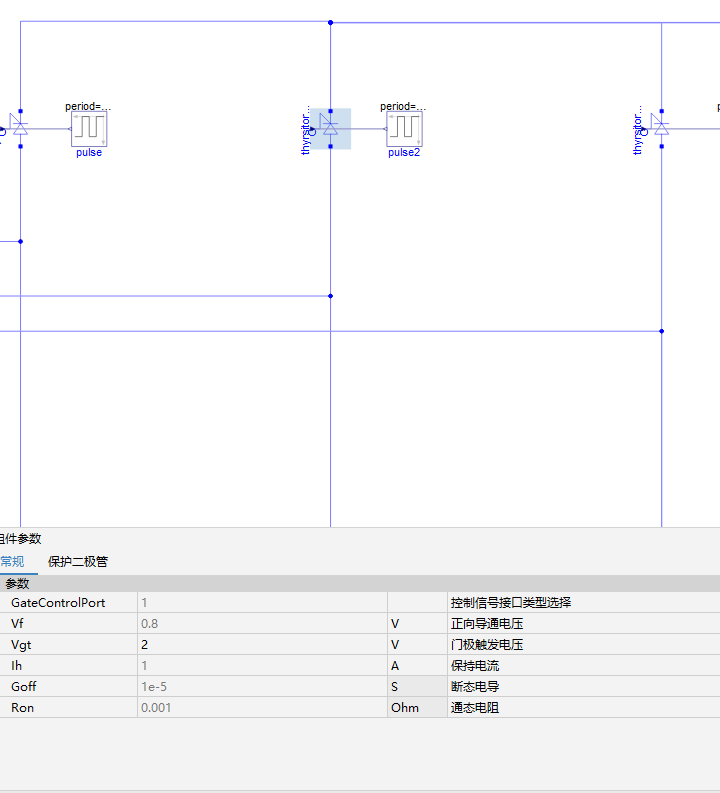

2.怎么设置晶闸管参数和MATLAB中的一样，阻尼电阻、阻尼电容在哪设置
3.两种开关管作为整流桥，整流后的输出电压和理论值不一样，都变小，但是同样的模型在MATLAB中已正常实现，是开关管设置的问题吗
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(11kb) 专栏
标签
高校专区
1 个附件(11kb) 全部回答 1
发布于 2025-01-20 09:47:14
您好，回复如下
- 不同组件是基于不同的原理进行开发的，所以更换组件可能会引起仿真结果的改变，您可以根据相关原理或者其他仿真软件进行对比；
- 问题2、3请参阅单相逆变。
