三相全控整流电路
一般问题
发布于 2025-01-24 16:11:54
查看 28过去520天

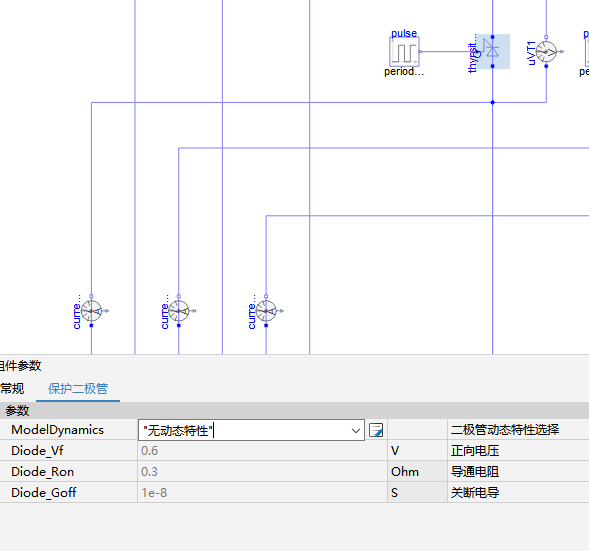

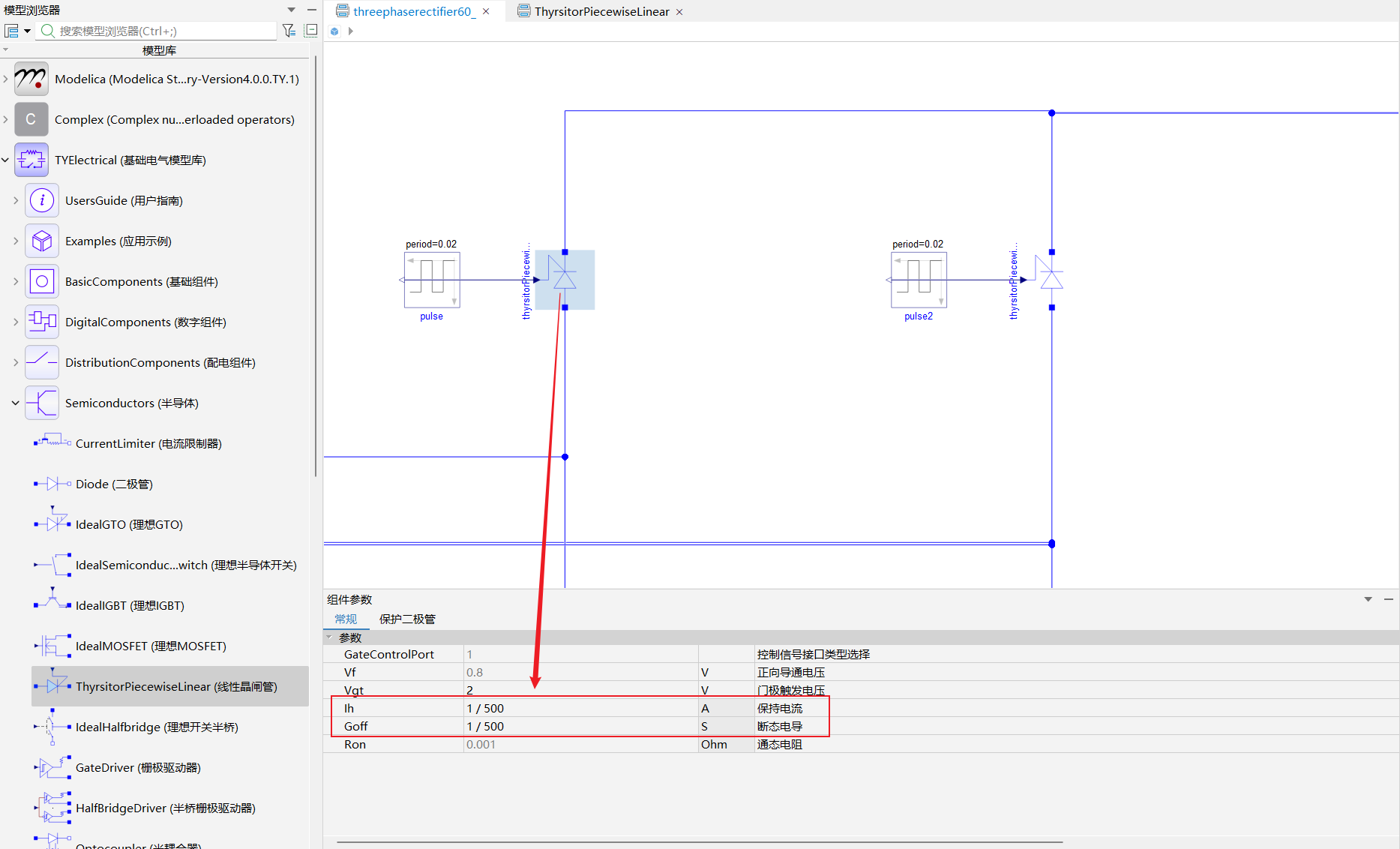

1.路径为TYElectrical.Semiconductors.ThyrsitorPiecewiseLinear的晶闸管在使用时动态特性怎么设置，尝试选择“无动态特性”更贴近正确值，无二极管特性和无动态特性是什么意思，正常使用应该选哪个

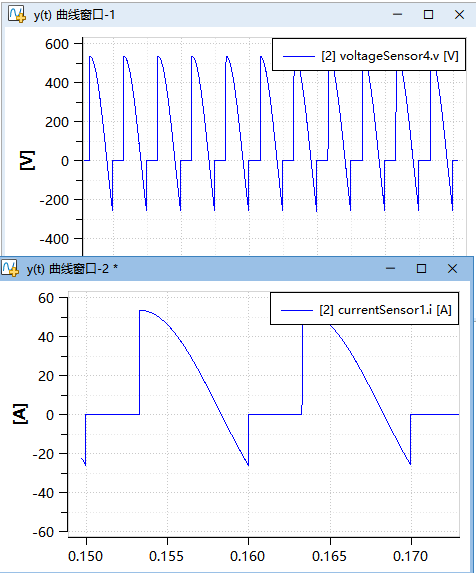

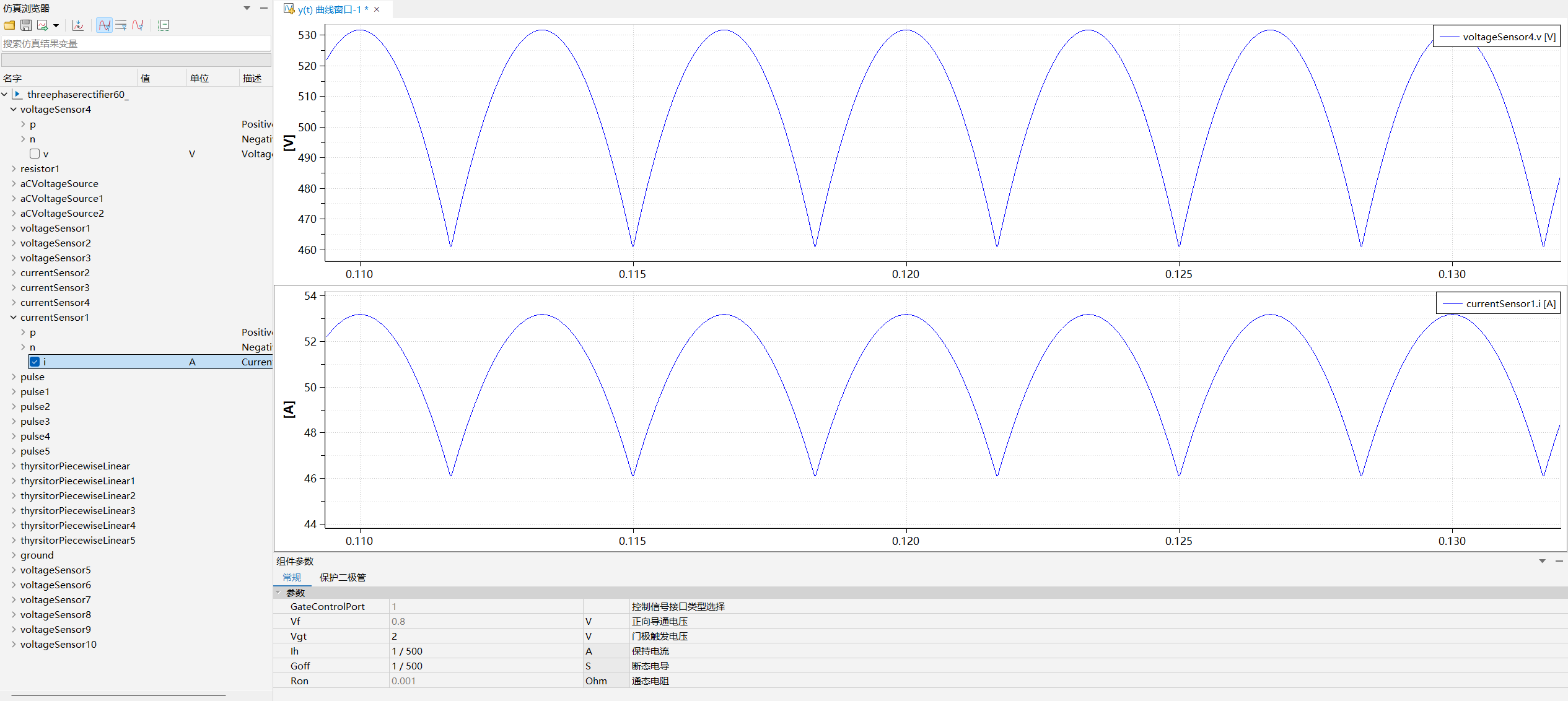

2.为什么三相桥式全控整流电路输出波形更像是三相半波的结果，是晶闸管哪些参数设置的不对吗

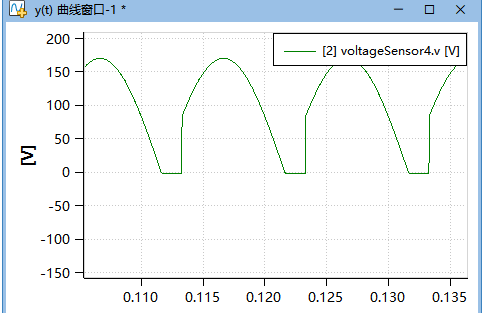

3.触发角60°时输出波形还存在畸变，但是触发脉冲宽度，其它参数都调整过了还是不行，不知道是不是也是晶闸管参数设置的有问题导致的，麻烦讲解下这里面晶闸管参数有没有什么特殊设置
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(16kb)
