Sysplorer中有类似Simulink的if判断模块吗
一般问题
发布于 2025-02-13 10:51:30
查看 15过去501天
Sysplorer中有类似Simulink的if判断模块吗
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2025-02-13 13:49:30

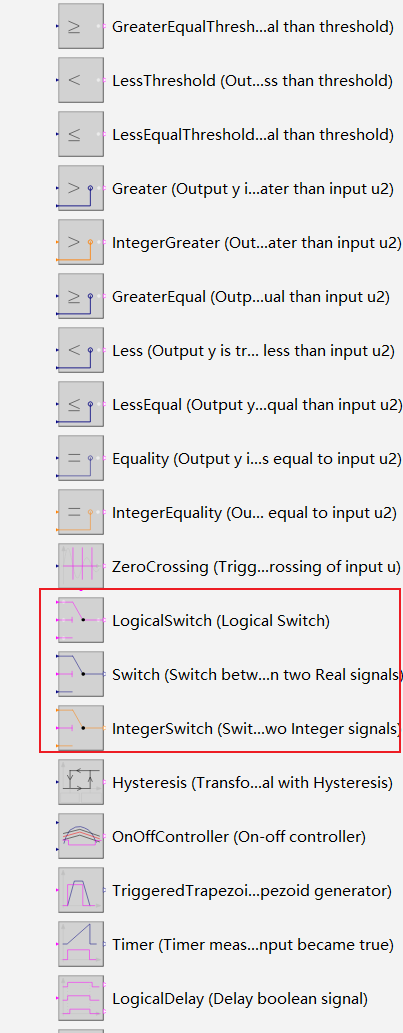

您好，Modelica.Blocks.Logical.LogicalSwitch 和 Modelica.Blocks.Logical.Switch 具有 if 判断的作用，可以评估一下能否满足需求，如果不满足可以使用 modelica 开发相应模块。
全部回答 1
发布于 2025-02-13 13:49:30
您好，Modelica.Blocks.Logical.LogicalSwitch 和 Modelica.Blocks.Logical.Switch 具有 if 判断的作用，可以评估一下能否满足需求，如果不满足可以使用 modelica 开发相应模块。
